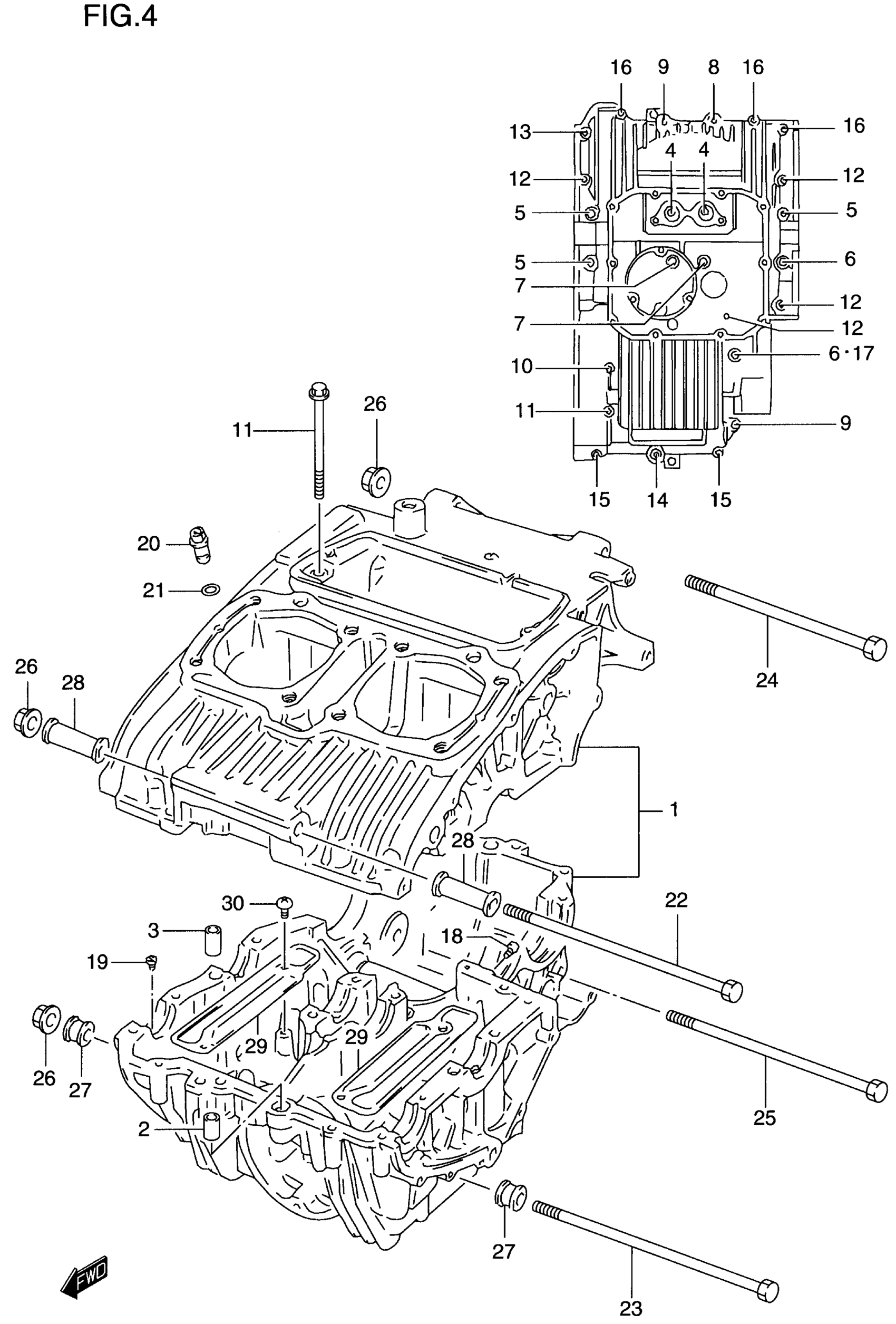

Suzuki GS500E (2000) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 21 This part replaces 11301-44890.

11301-44891

Unavailable

2

PIN

09206-13004

$2.44

3

PIN

09206-11017

$6.85

4

BOLT This part replaces 07130-08703.

07130-0870B

$5.83

5

BOLT (8X125)

09103-08182

$6.22

6

BOLT (8X110)

09103-08134

$3.70

7

BOLT (8X100)

09103-08230

Unavailable

8

BOLT This part replaces 01550-08653.

01550-0865A

$3.21

9

BOLT This part replaces 01550-08453.

01550-0845A

$2.88

10

BOLT (6X125)

09103-06033

$3.52

11

BOLT (6X105)

09103-06067

$3.00

12

BOLT This part replaces 01550-06903.

01550-0690B

Unavailable

13

BOLT This part replaces 01550-06703.

01550-0670B

$4.62

14

BOLT This part replaces 01550-06653.

01550-0665A

$2.90

15

BOLT (6X50)

01550-06507

$3.70

16

BOLT This part replaces 01550-06453.

01550-0645A

$2.42

17

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

18

JET,AIR

09493-22010

Unavailable

19

JET, OIL GALY. BAL. SHAFT

09493-32002

$18.00

20

JET, OIL GALLERY CYLINDER

09493-24008

Unavailable

21

O RING (D:1.1,ID:3.1)

09280-03003

$1.73

22

BOLT (10X255)

09103-10137

$15.42

23

BOLT (10X240)

09103-10212

Unavailable

24

BOLT (10X170)

09103-10127

$21.60

25

BOLT (10X160)

09103-10278

$13.48

26

NUT

09159-10078

$2.80

27

SPACER (L:16.8)

11611-01D10

$11.10

28

SPACER (L:65)

11610-45410

Unavailable

29

PLATE, OIL SEPARATOR

11521-44100

$2.80

30

SCREW This part replaces 02112-06123.

02112-0612A

$1.43
