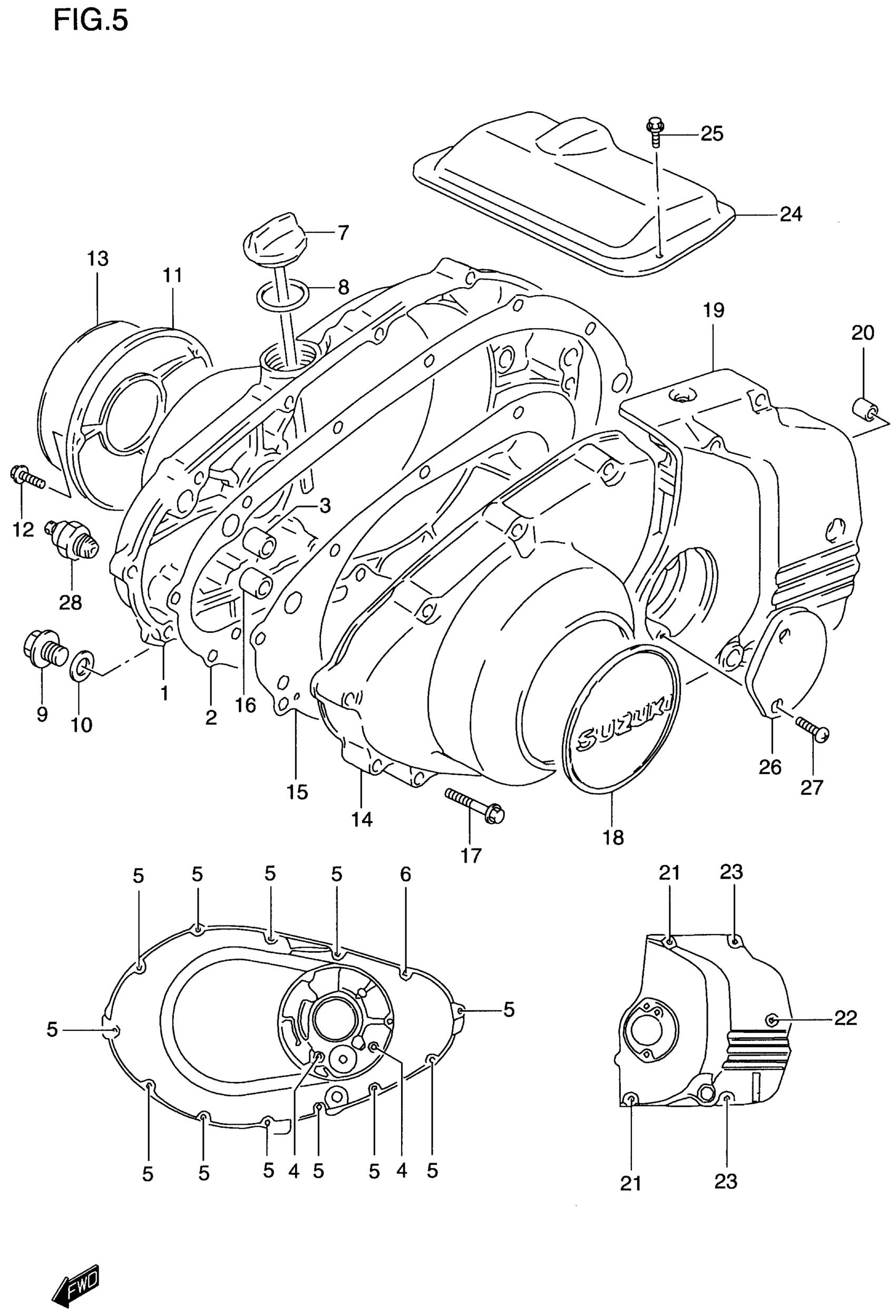

Suzuki GS500E (2000) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-01D10

Unavailable

2

GASKET, CLUTCH COVER

11482-44110

$19.74

3

PIN

04211-13189

$2.19

4

BOLT

01547-06557

$2.34

5

BOLT

01547-06357

$2.01

6

BOLT

01547-06257

$2.01

7

GAUGE, OIL LEVEL

11970-44110

Unavailable

8

O RING (D:3.1,ID:26.4)

09280-26006

$2.77

9

PLUG This part replaces 09247-14012.

09247-14026

$3.38

10

GASKET

09168-14002

$2.83

11

COVER, CONTACT BREAKER

11381-01D10

$70.33

12

BOLT

01547-05167

$1.87

13

EMBLEM

68233-01D00

$17.96

14

COVER, GENERATOR

11351-01D10

$243.92

15

GASKET, GENERATOR COVER

11483-44110

$12.24

16

PIN

04211-13189

$2.19

17

BOLT

01547-06357

$2.01

18

EMBLEM

68233-01D00

$17.96

19

COVER, ENGINE SPROCKET

11361-01D10

$182.02

20

PIN

04211-09129

$1.64

21

BOLT

01547-06657

$2.77

22

BOLT

01547-06507

$2.42

23

BOLT

01547-06407

$2.34

24

COVER, STARTER MOTOR

11382-44111

Unavailable

25

BOLT, COVER This part replaces 01547-05083.

01547-0508B

$3.22

26

CAP, CLUTCH RELEASE

11387-01D10

$42.37

27

SCREW

02122-05127

$1.68

28

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D00.

37820-33D11

$27.58
