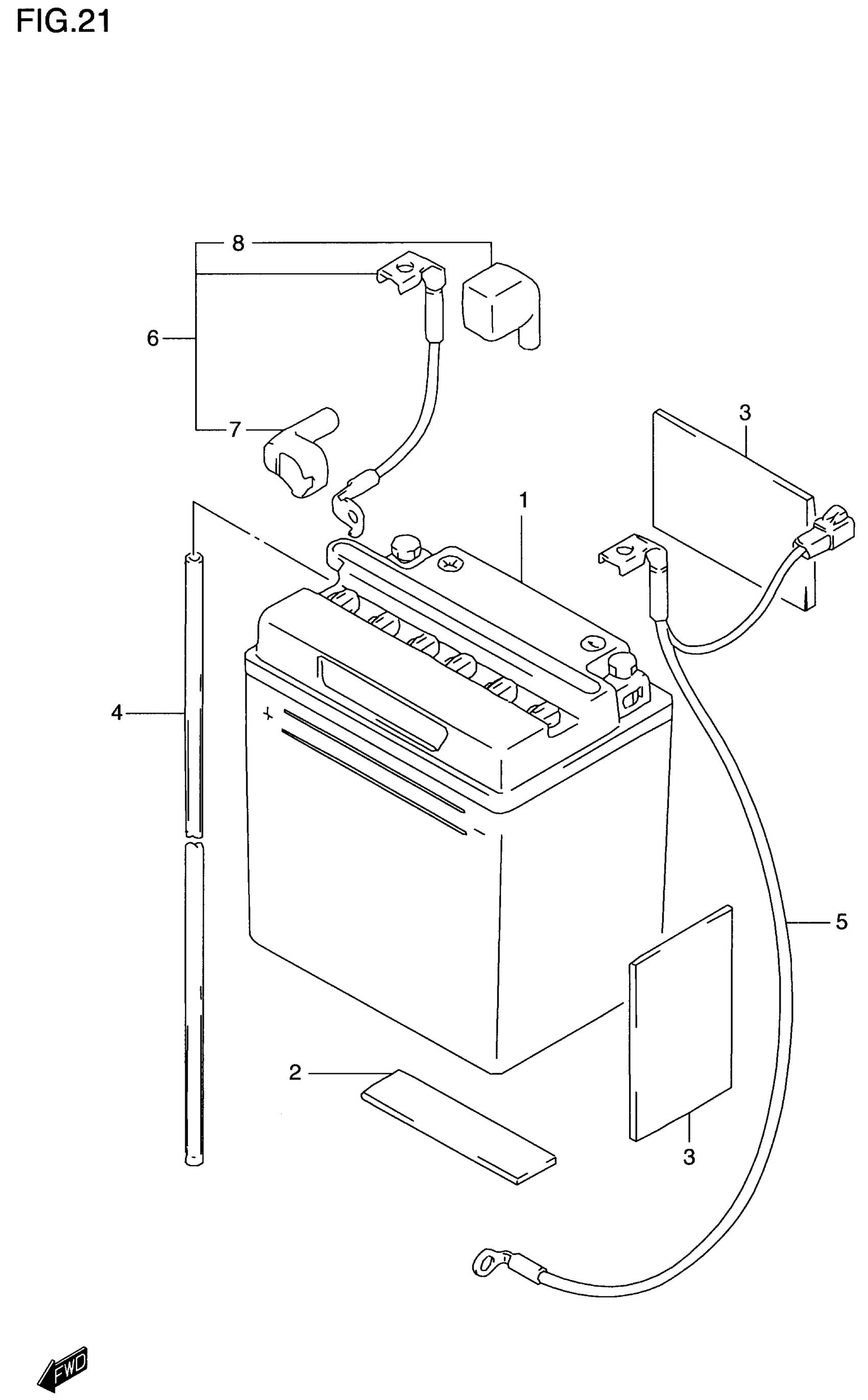

Suzuki GS500E (2000) BATTERY Diagram

#

Description

Price

1

BATTERY (12V,14AH) This part replaces 33610-01D00.

33610-04A20

$116.58

2

CUSHION (30X130X3) | CUT AS REQUIRED PROFILE (27X80X3)

33652-19B00

$5.67

3

PROTECTOR (75X170X3) | CUT AS REQUIRED PROFILE (20X90X3)

33651-37000

$4.09

4

HOSE,BATTERY EX | L:780?600 This part replaces 33680-16A10.

33680-16A11

$7.65

5

LEAD WIRE, (-)

33860-01D00

Unavailable

6

LEAD WIRE,BATTE | Includes Item(s) 7 This part replaces 33870-01D00.

33870-01D10

$34.50

7

CAP, STARTER RELAY TERMINAL

33624-01D00

Unavailable

8

CAP, BATTERY (+)

33624-43500

$6.22
