1995 Suzuki GS500E Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 1995 Suzuki GS500E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

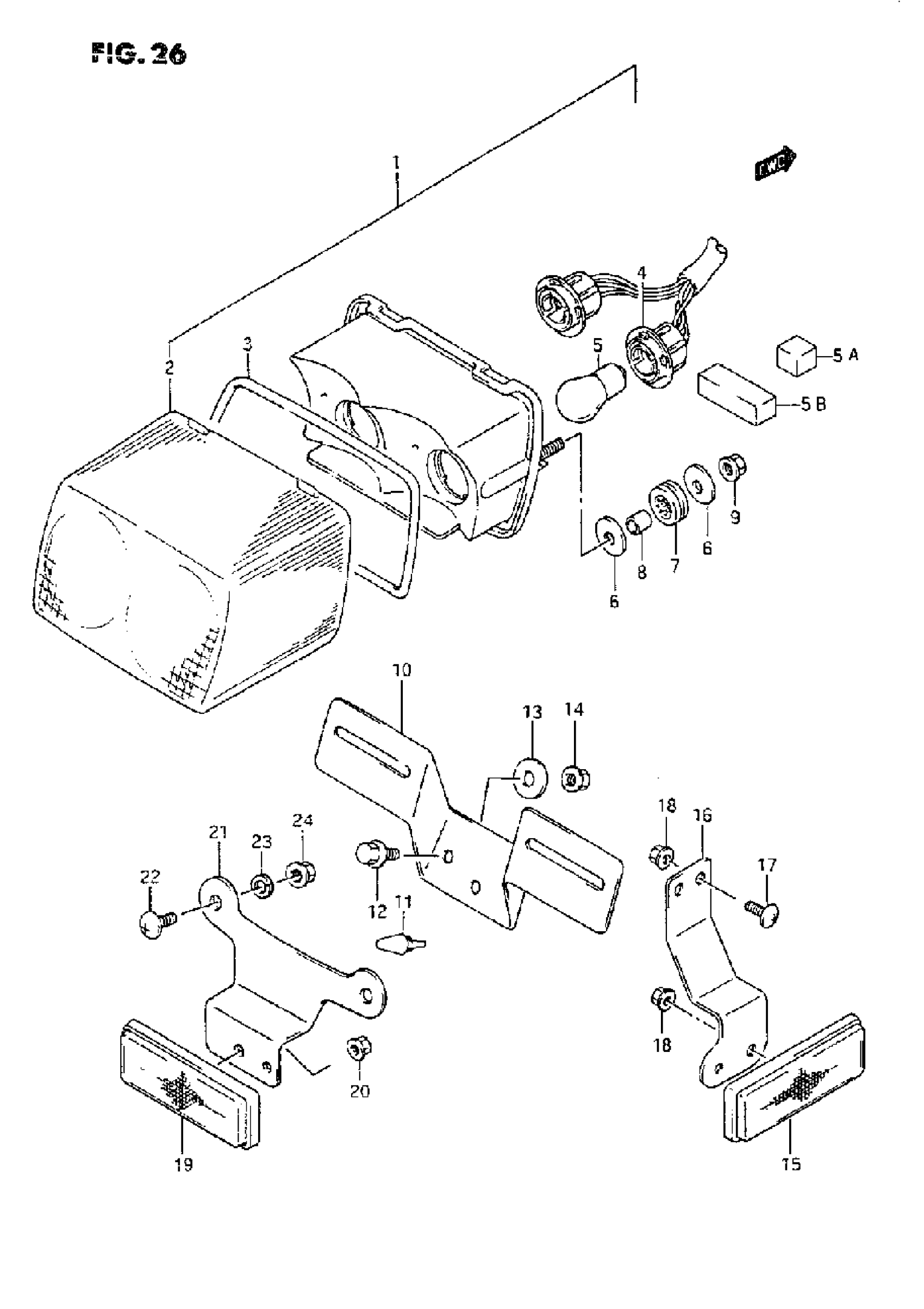

1995 Suzuki GS500E Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | MODEL K/L/M/N/P This part replaces 35710-01D10.

35710-01D11

1
Out of stock

1

LAMP ASSY, REAR OMBINATION | MODEL R/S/T

35710-01D11

1
Out of stock

2

LENS

35712-01D10

1
Out of stock

3

GASKET, LENS

35713-01D00

1
Out of stock

4

SOCKET | MODEL K/L/M/N/P/R/S This part replaces 35718-01D10.

35718-12D00

1
Out of stock

4

SOCKET | MODEL I

35718-12D00

1
Out of stock

5

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

5

CUSHION | MODEL K/L/M/N/P/R/S This part replaces 35733-01D00.

35733-10D00

2
Out of stock

5

CUSHION | MODEL T

35733-10D00

2
Out of stock

6

WASHER (6.5X20X1.2) | MODEL K/L/M/N/P/R This part replaces 09160-06086.

09160-06077

4
Out of stock

6

WASHER (6.5X20X1.2) | MODEL S/T

09160-06077

4
Out of stock

7

CUSHION

09320-09009

2
Out of stock

8

SPACER This part replaces 09180-06152.

09180-06262

2
Out of stock

9

NUT | MODEL K/L/M/N This part replaces 08316-16066.

08316-1006B

2
Out of stock

9

NUT | MODEL P/R This part replaces 08310-12066.

08310-0006A

2
Out of stock

9

NUT | MODEL S/T This part replaces 08310-00063.

08310-0006A

2
Out of stock

10

BRACKET, LICENSE PLATE

35927-01D10

1
Out of stock

11

CUSHION This part replaces 09321-06028.

09321-06038

1
Out of stock

12

BOLT | MODEL K/L/M/N/P This part replaces 01517-06164.

01550-0616A

2
Out of stock

12

BOLT | MODEL R This part replaces 01550-06163.

01550-0616A

2
Out of stock

12

SCREW | MODEL S/T This part replaces 02142-06163.

02142-0616A

2
Out of stock

13

WASHER (6.5X20X1.2) | MODEL S/T

09160-06077

2
Out of stock

14

NUT | MODEL K/L/M/N This part replaces 08316-26066.

08316-1006B

2
Out of stock

14

NUT | MODEL P/R This part replaces 08310-12066.

08310-0006A

2
Out of stock

14

NUT | MODEL S/T This part replaces 08310-00063.

08310-0006A

2
Out of stock

15

REFLEX REFLECTOR, REAR SIDE | MODEL K/L/M/N/P/R

35970-00A10

2
Out of stock

15

REFLEX REFLECTOR, REAR SIDE | MODEL S/T

35970-24D60

2
Out of stock

16

BRACKET, REAR SIDE RR | MODEL K/L/M/N/P This part replaces 35977-01D10.

35977-01D11

1
Out of stock

16

BRACKET, REAR SIDE RR | MODEL K/L/M/N/P This part replaces 35978-01D10.

35977-01D11

1
Out of stock

16

BRACKET, REAR SIDE RR | MODEL R/S/T

35977-01D11

2
Out of stock

17

.SCREW | MODEL K/L/M/N/P This part replaces 02142-05124.

02142-0512A

4
Out of stock

17

.SCREW | MODEL R/S/T This part replaces 02142-05123.

02142-0512A

4
Out of stock

18

NUT | MODEL K/L/M/N This part replaces 08316-26055.

08316-2005A

6
Out of stock

18

NUT | MODEL P/R/S This part replaces 08310-11056.

08310-0005A

6
Out of stock

18

NUT | MODEL T This part replaces 08310-00053.

08310-0005A

6
Out of stock

19

REFLECTOR, REAR | MODEL K/L/M/N/P/R This part replaces 35970-00A21.

35970-00A10

1
Out of stock

19

REFLEX REFLECTOR ASSY, REAR | MODEL S/T

35970-24D60

1
Out of stock

20

NUT | MODEL K/L/M/N This part replaces 08316-26055.

08316-2005A

1
Out of stock

20

NUT | MODEL P/R This part replaces 08310-11056.

08310-0005A

1
Out of stock

20

NUT | MODEL S/T This part replaces 08310-00053.

08310-0005A

1
Out of stock

21

BRACKET, REAR REFLEX REFLECTOR

35974-01D00

1
Out of stock

22

SCREW | MODEL K/L/M/N/P This part replaces 02142-06125.

02142-0612A

2
Out of stock

22

SCREW | MODEL R/S/T This part replaces 02142-06123.

02142-0612A

2
Out of stock

23

2

$1.97

In stock

24

NUT | MODEL K/L/M/N This part replaces 08316-26065.

08316-2006A

2
Out of stock

24

NUT | MODEL P/R/S/T This part replaces 08310-00063.

08310-0006A

2
Out of stock
