1995 Suzuki GS500E Crankshaft Balancer Diagram

← All diagrams

Find the part on the Crankshaft Balancer diagram for your 1995 Suzuki GS500E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

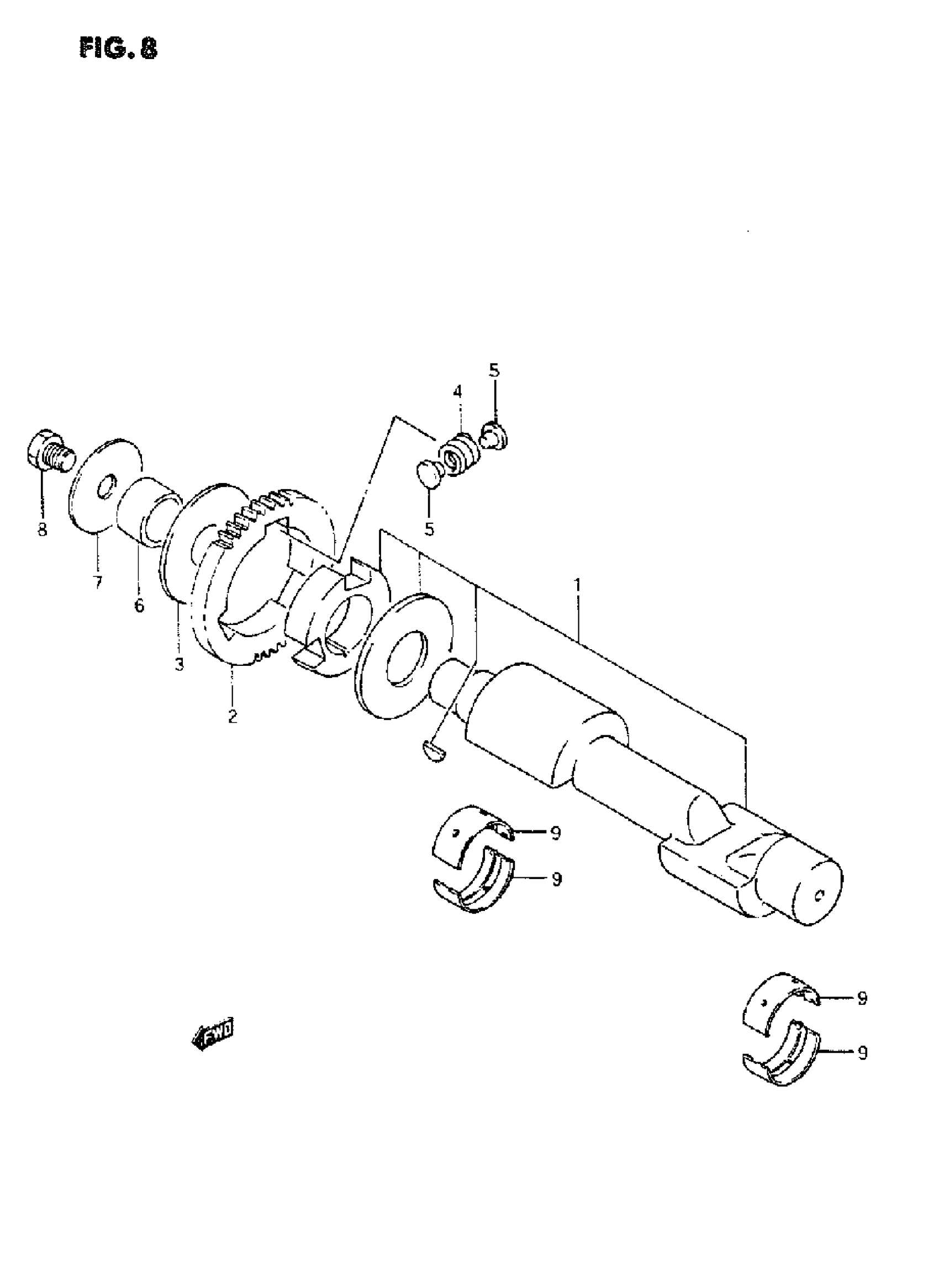

1995 Suzuki GS500E Crankshaft Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER, CRANKSHAFT | MODEL K/L This part replaces 12650-44100.

12650-01D01

1
Out of stock

1

BALANCER, CRANKSHAFT | MODEL M/N/P This part replaces 12650-01D00.

12650-01D01

1
Out of stock

1

BALANCER, CRANKSHAFT | MODEL R/S/T

12650-01D01

1
Out of stock

2

GEAR, DRIVEN (NT:46) This part replaces 12666-44000.

12666-44001

1
Out of stock

3

WASHER

09160-24026

1
Out of stock

4

SPRING

09440-15007

3
Out of stock

5

PIN

09201-08001

6
Out of stock

6

SPACER | MODEL K/L/M/N/P This part replaces 09180-24004.

09180-24009

1
Out of stock

6

SPACER | MODEL K/L/M/N/P This part replaces 09180-24006.

09180-24009

1
Out of stock

6

SPACER | MODEL R/S/T

09180-24009

1
Out of stock

7

WASHER

09160-12039

1
Out of stock

8

BOLT This part replaces 01500-12203.

01500-1220B

1
Out of stock

9

BEARING (GREEN)

12229-01D01-0A0

4
Out of stock

9

BEARING (BLACK)

12229-01D01-0B0

4
Out of stock

9

BEARING (BROWN)

12229-01D01-0C0

4
Out of stock

9

BEARING (YELLOW)

12229-01D01-0D0

4
Out of stock
