1993 Suzuki GS500E Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1993 Suzuki GS500E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

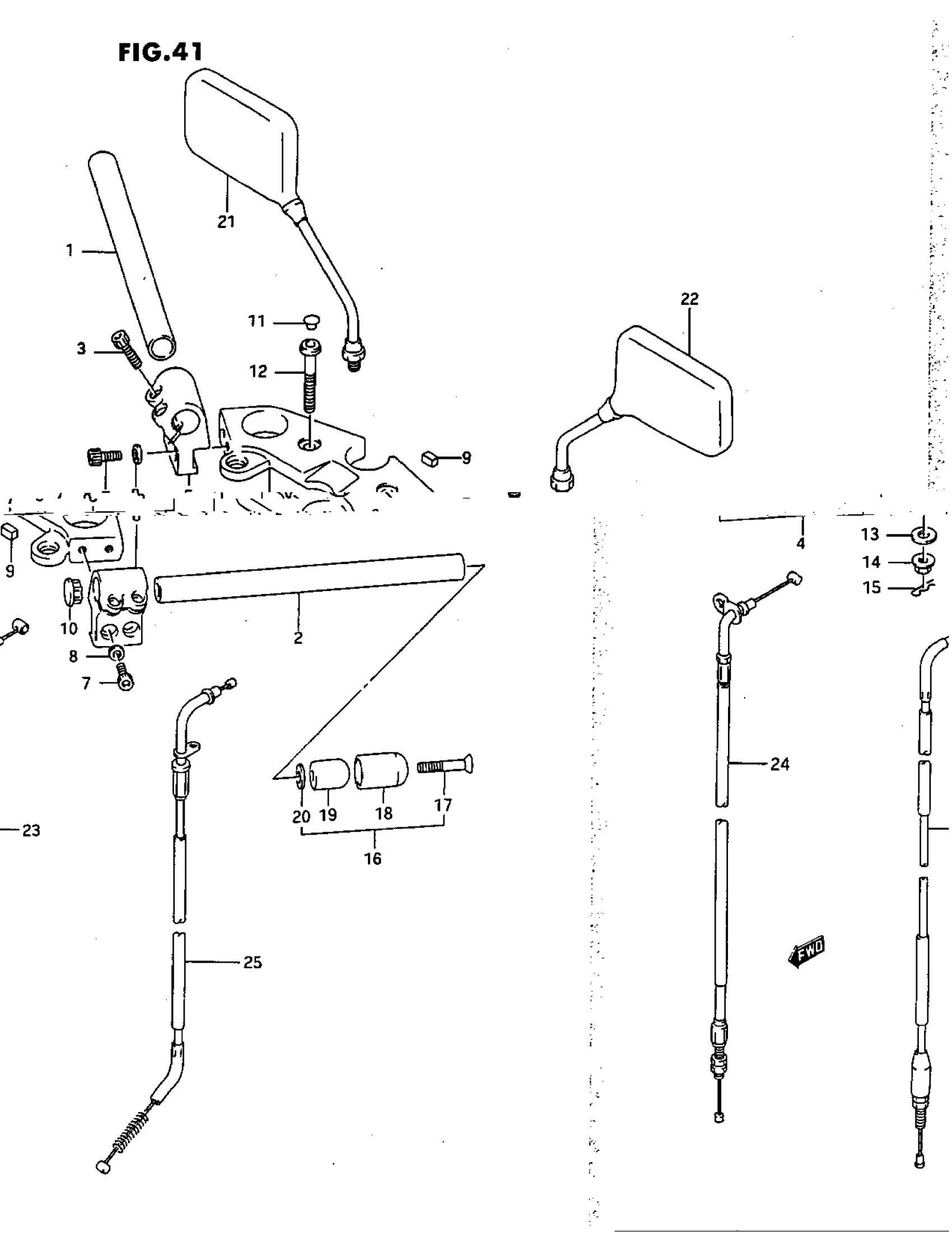

1993 Suzuki GS500E Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR, RH

56110-01D00

1
Out of stock

2

HANDLEBAR, LH

56150-01D01

1
Out of stock

3

BOLT This part replaces 07110-06257.

07130-06257

4
Out of stock

4

HOLDER ASSY, HANDLEBAR (SILVER)

56200-01D00-0FP

1
Out of stock

5

HOLDER, RH

56211-01D10-0FP

1
Out of stock

6

HOLDER, LH

56221-01D10-0FP

1
Out of stock

7

BOLT This part replaces 07110-08257.

07130-08257

4
Out of stock

8

WASHER

09164-08015

4
Out of stock

9

CUSHION HOLDER

56241-01D00

4
Out of stock

10

CAP

57215-33400

2
Out of stock

11

CAP

09250-06011

2
Out of stock

12

BOLT

09106-10055

2
Out of stock

13

WASHER This part replaces 09160-10084.

09160-10094

2
Out of stock

14

NUT This part replaces 08319-31105.

08319-3110A

2
Out of stock

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

16

BALANCER SET, HANDLEBAR This part replaces 56200-20840.

56200-01831

2
Out of stock

17

2

$3.00

In stock

18

CAP, BALANCER This part replaces 56274-20C00.

56274-49310

2
Out of stock

19

BALANCER

56271-49310

2
Out of stock

20

SPACER This part replaces 56275-34400.

56275-34401

2
Out of stock

21

MIRROR ASSY,REA This part replaces 56500-01D01.

56500-01D02

1
Out of stock

22

MIRROR ASSY,REA This part replaces 56600-01D01.

56600-01D02

1
Out of stock

23

CABLE ASSY, CLUTCH

58200-01D00

1
Out of stock

24

CABLE ASSY, THROTTLE

58300-01D00

1
Out of stock

25

CABLE,STARTER This part replaces 58410-01D00.

58410-01D01

1
Out of stock
