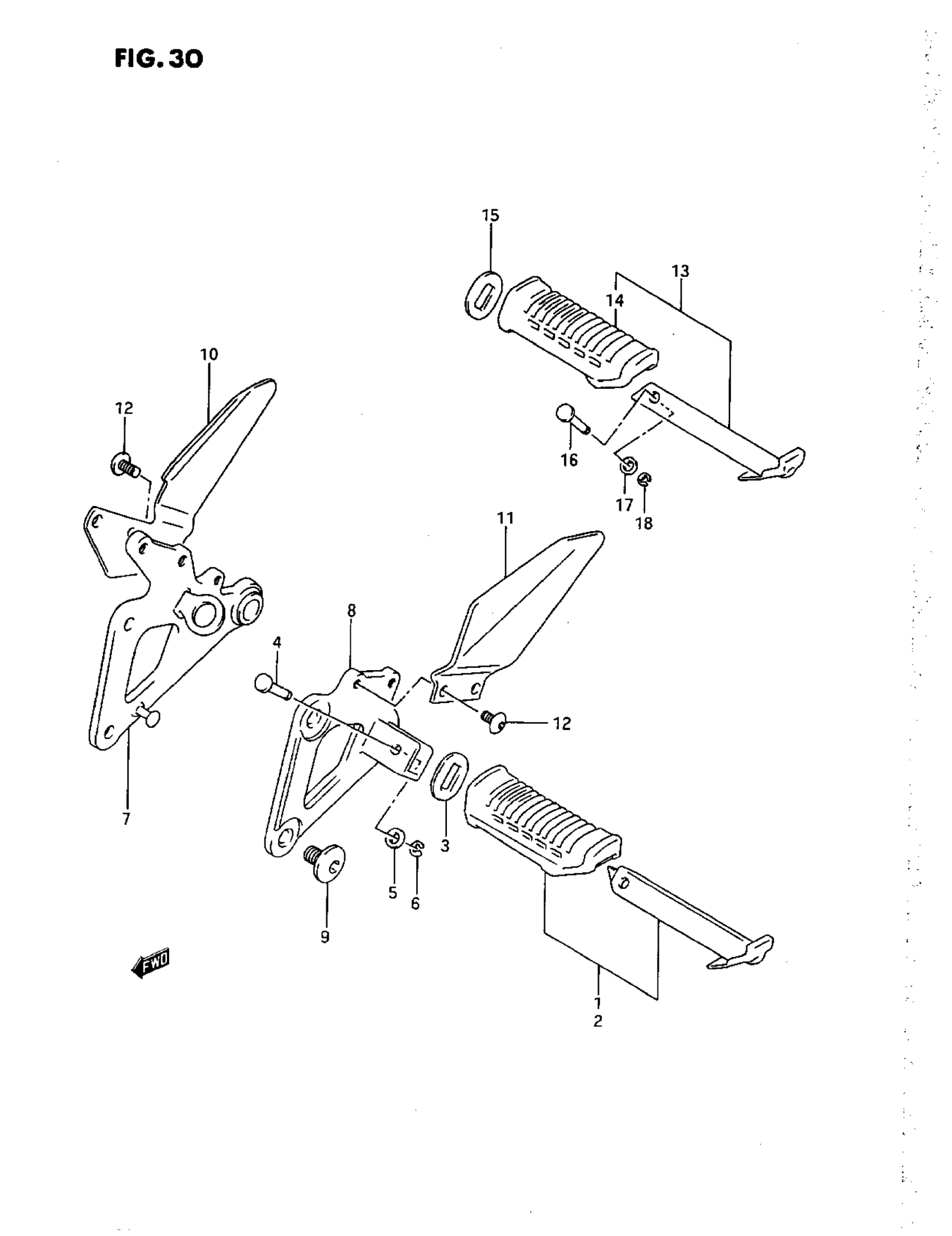

Suzuki GS500E (1993) FOOTREST Diagram

#

Description
Price

1

RUBBER ASSY, FRONT RH

43550-01D00

Unavailable

2

RUBBER ASSY, FRONT LH

43560-01D00

Unavailable

3

WASHER, RUBBER

43631-34A01

$4.26

4

PIN | MODEL K/L This part replaces 09208-06003.

87259-85510

$4.89

4

PIN | MODEL M/N/P/R

87259-85510

$4.89

5

.WASHER This part replaces 08322-11068.

08322-0106B

$2.24

6

E RING This part replaces 08332-11046.

08332-1104A

$1.37

7

BRACKET, FRONT FOOTREST RH (SILVER) | MODEL K/L/M/N/P

43510-01D00-0FP

Unavailable

7

BRACKET, FRONT FOOTREST RH (SILVER) | MODEL R

43510-01D00-13L

Unavailable

8

BRACKET, FRONT FOOTREST LH (SILVER) | MODEL K/L/M/N/P

43520-01D00-0FP

Unavailable

8

BRACKET, FRONT FOOTREST LH | MODEL R

43520-01D00-13L

Unavailable

9

BOLT, BRACKET (SILVER)

09106-08089

$10.08

9

BOLT, BRACKET | MODEL K MODEL L/M/N/P/R

09106-08094

$6.62

10

GUARD, FRONT FOOTREST RH | MODEL K/L This part replaces 43586-01D00.

43586-01D10

Unavailable

10

GUARD, FRONT FOOTREST RH | MODEL M/N/P This part replaces 43586-01D01.

43586-01D10

Unavailable

10

GUARD, FRONT FOOTREST RH | MODEL R

43586-01D10

Unavailable

11

GUARD, FRONT FOOTREST LH | MODEL K/L This part replaces 43596-01D00.

43596-01D10

Unavailable

11

GUARD, FRONT FOOTREST LH | MODEL M/N/P This part replaces 43596-01D01.

43596-01D10

Unavailable

11

GUARD, FRONT FOOTREST LH | MODEL R

43596-01D10

Unavailable

12

SCREW | MODEL K This part replaces 09139-06031.

09139-06078

$2.77

12

BOLT, GUARD | MODEL L

09139-06055

$1.47

12

BOLT, GUARD | MODEL M/N/P/R

09139-06062

$3.30

13

FOOTREST ASSY,P This part replaces 43600-12B00.

43600-12B01

$27.02

13

FOOTREST ASSY,P This part replaces 43700-12B00.

43700-12B01

$25.50

14

RUBBER, FOOTREST This part replaces 43551-12B00.

43551-29B21

$21.55

15

WASHER, RUBBER

43631-34A01

$4.26

16

PIN This part replaces 09208-06003.

87259-85510

$4.89

16

PIN | MODEL K/L

87259-85510

$4.89

17

.WASHER | MODEL M/N/P/R This part replaces 08322-11068.

08322-0106B

$2.24

18

E RING This part replaces 08332-11046.

08332-1104A

$1.37
