2002 Suzuki GS500 Stand - Rear Brake Diagram

← All diagrams

Find the part on the Stand - Rear Brake diagram for your 2002 Suzuki GS500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

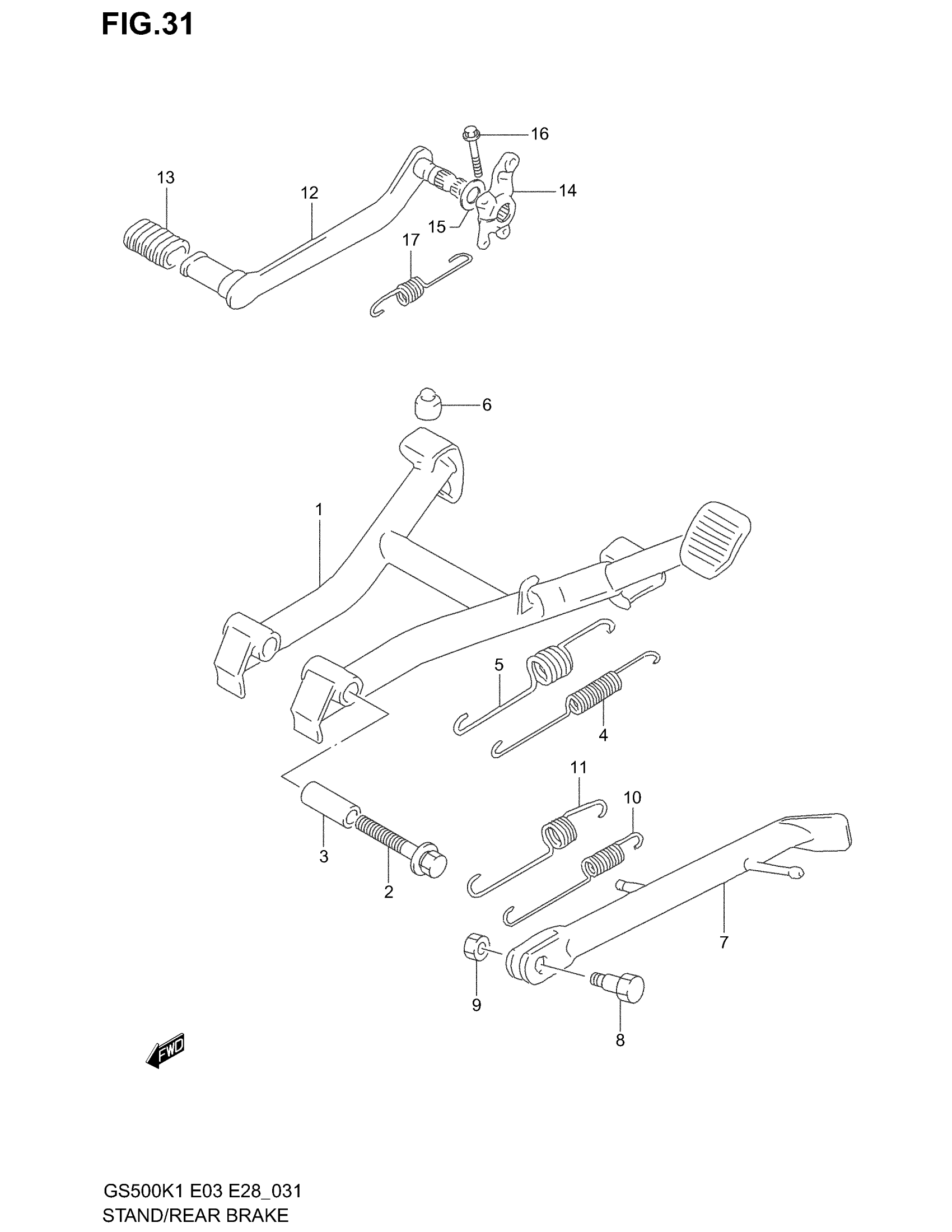

2002 Suzuki GS500 Stand - Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, CENTER

42100-01D00

1
Out of stock

2

ARM, BRAKE ROD This part replaces 01580-10603.

01580-1060B

2
Out of stock

3

SPACER

09180-10040

2
Out of stock

4

SPRING, INNER

09443-14059

1
Out of stock

5

SPRING, OUTER

09443-22013

1
Out of stock

6

CUSHION

09321-10017

1
Out of stock

7

STAND, PROP (BLACK)

42310-01D10-019

1
Out of stock

8

BOLT

09111-10027

1
Out of stock

9

1

$2.48

In stock

10

SPRING, INNER

09443-15046

1
Out of stock

11

SPRING, OUTER

09443-22017

1
Out of stock

12

PEDAL, BRAKE

43110-01D12

1
Out of stock

13

RUBBER

25652-49300

1
Out of stock

14

ARM, BRAKE ROD

43121-01D00

1
Out of stock

15

WASHER

43212-04A00

1
Out of stock

16

BOLT This part replaces 01550-06253.

01550-0625A

1
Out of stock

17

SPRING, RETURN

09443-13028

1
Out of stock
