2002 Suzuki GS500 Rear Fender Diagram

← All diagrams

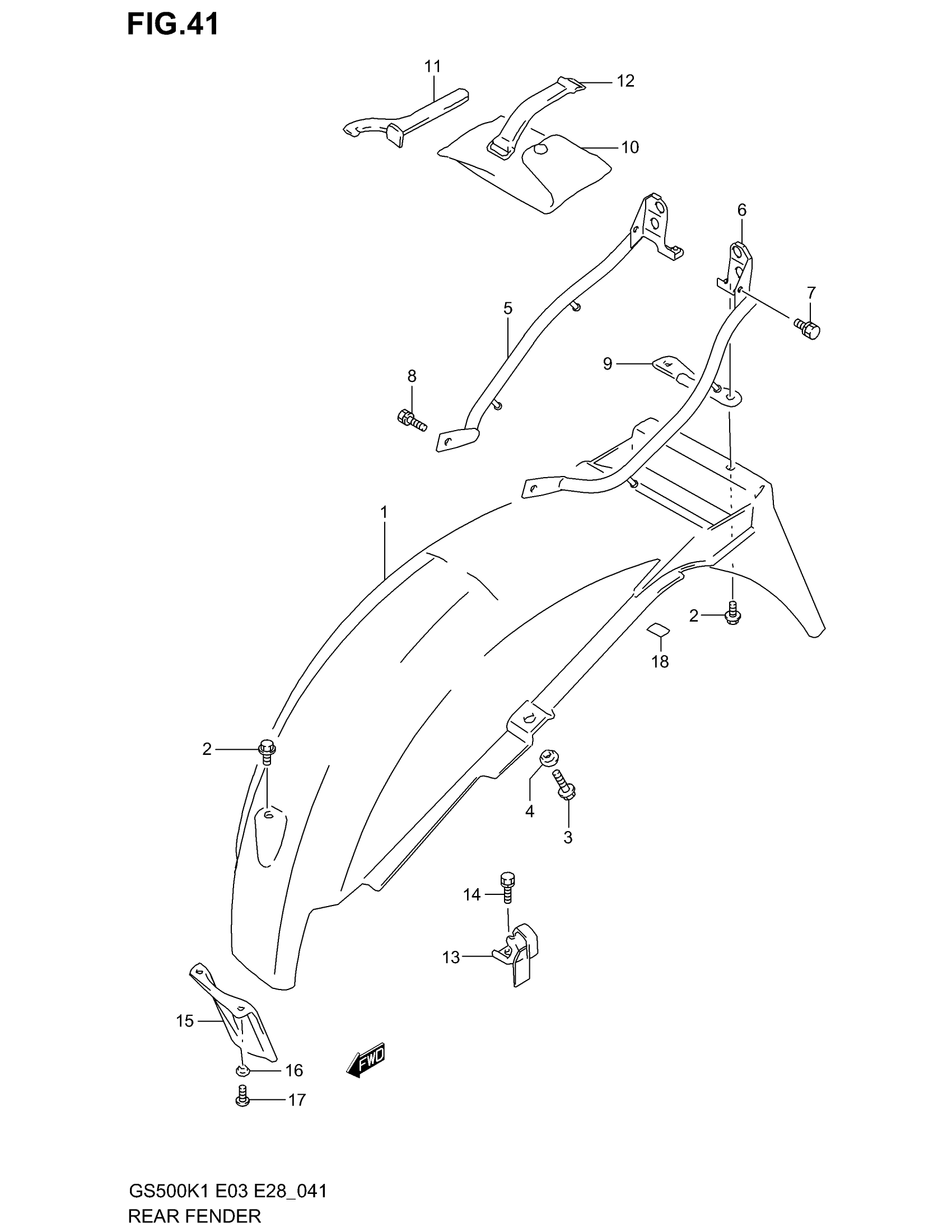

Find the part on the Rear Fender diagram for your 2002 Suzuki GS500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki GS500 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER This part replaces 63111-01D31.

63111-01D31-291

1
Out of stock

2

BOLT

09113-06001

3
Out of stock

3

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

4

WASHER

09169-06037

2
Out of stock

5

BRACE, REAR FENDER RH

63210-01DA0

1
Out of stock

6

BRACE, REAR FENDER LH

63220-01DA0

1
Out of stock

7

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

2
Out of stock

8

BOLT This part replaces 01550-08203.

01550-0820A

2
Out of stock

9

PLATE, TOOL HOLDER

47425-01D00

1
Out of stock

10

TOOL ASSY

09800-21017

1
Out of stock

11

CLAMP WRENCH

09822-00005

1
Out of stock

12

BAND

09462-00046

1
Out of stock

13

HOLDER, HELMET

95720-01D00

1
Out of stock

14

BOLT This part replaces 01550-06163.

01550-0616A

1
Out of stock

15

MUD GUARD, REAR UNIT This part replaces 63411-42A00.

63411C42A00J000

1
Out of stock

16

WASHER

09169-06010

2
Out of stock

17

SCREW This part replaces 02142-06163.

02142-0616A

2
Out of stock

18

TAPE, REAR FENDER

63115-06C00

1
Out of stock
