2002 Suzuki GS500 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2002 Suzuki GS500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

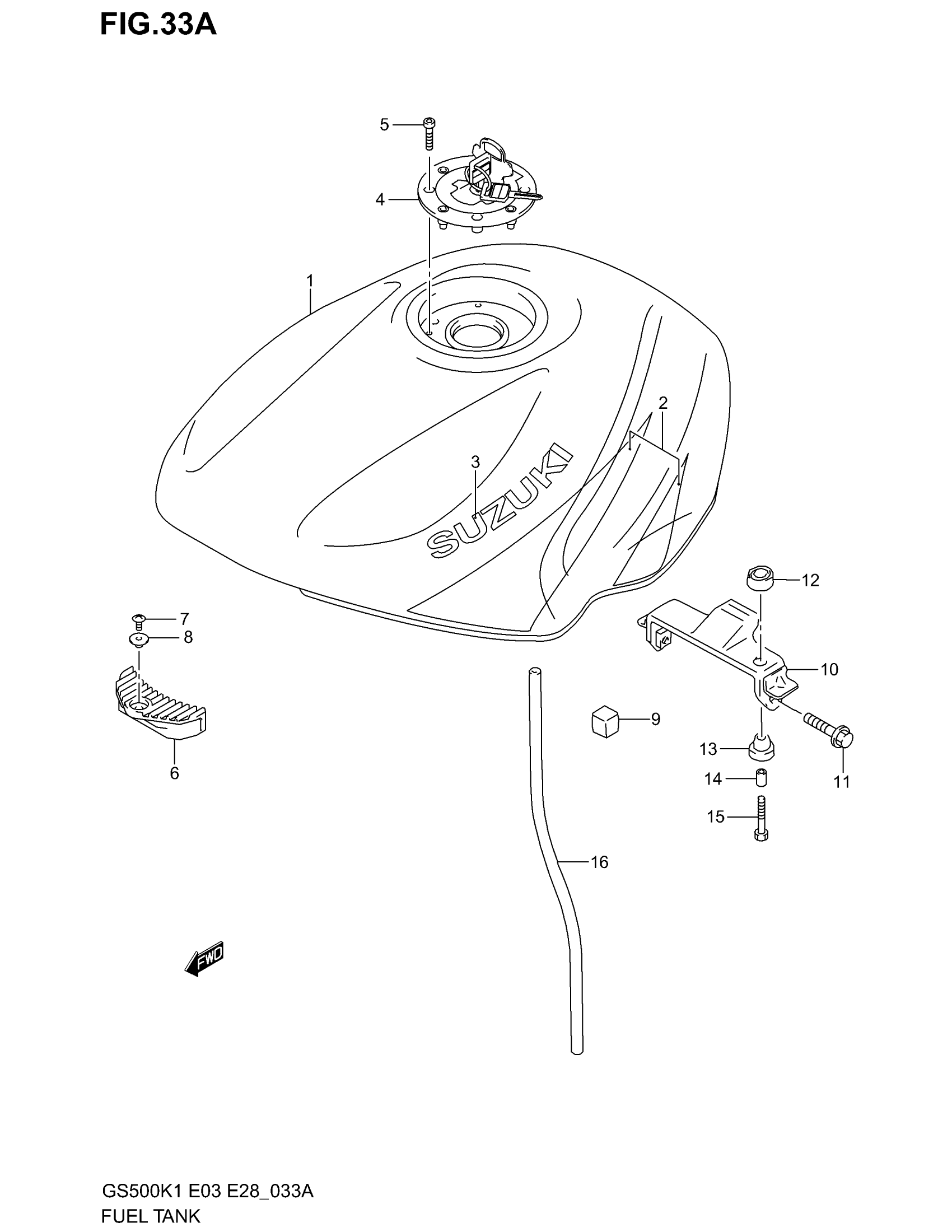

2002 Suzuki GS500 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL (BLACK) | E3 E28

44100-01DD0-Y7L

1
Out of stock

1

TANK ASSY, FUEL (BLUE) | E28

44100-01DD0-YC2

—
Out of stock

1

TANK ASSY, FUEL (BLACK) | E33; Includes Item(s) 2 - 3

44100-01DP0-Y7L

1
Out of stock

2

TAPE SET | FOR Y7L

68110-01DA0-FP2

1
Out of stock

2

TAPE SET | FOR YC2

68110-01DA0-GZ8

1
Out of stock

3

EMBLEM

68111-42E20-0JW

2
Out of stock

4

CAP SET,FUEL TA | E3 E28 This part replaces 44201-33820.

44201-33822

1
Out of stock

4

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

1
Out of stock

5

BOLT

09106-05017

4
Out of stock

6

CUSHION, FRONT

44511-27E00

1
Out of stock

7

SCREW This part replaces 02142-05103.

02142-0510B

1
Out of stock

8

WASHER

09169-05012

1
Out of stock

9

CUSHION,FUEL TA This part replaces 44541-01D00.

44541-01D01

2
Out of stock

10

BRACKET, REAR

44550-01D01

1
Out of stock

11

BOLT This part replaces 01551-08403.

01551-0840B

2
Out of stock

12

CUSHION, REAR UPPER

09320-14017

2
Out of stock

13

CUSHION, REAR LOWER

09320-10038

2
Out of stock

14

SPACER

09180-06271

2
Out of stock

15

BOLT

09116-06172

2
Out of stock

16

HOSE,WATER DRAI This part replaces 44423-01D00.

44423-01D01

1
Out of stock
