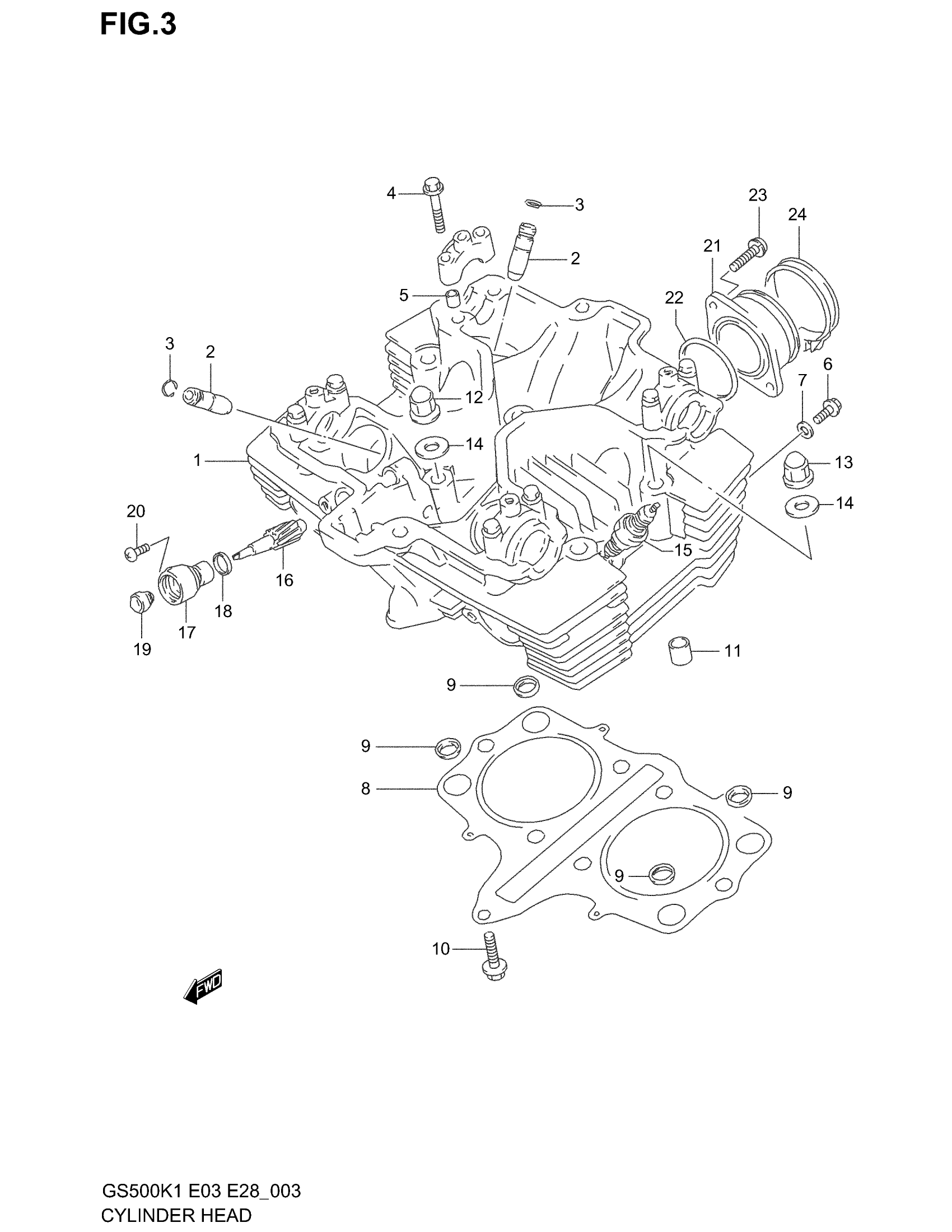

Suzuki GS500 (2002) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 7

11100-01D20

Unavailable

2

GUIDE, VALVE(0S:0.3)

11115-45740

$45.97

3

RING, VALVE GUIDE

09381-10003

$2.69

4

BOLT (6X39)

09103-06071

$1.79

5

PIN

09206-08001

$1.77

6

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$2.80

7

GASKET

09168-06023

$2.01

8

GASKET, CYLINDER HEAD This part replaces 11141-01D10.

11141-01D11

$39.61

9

O RING, CYLINDER HEAD

11143-06B00

$8.33

10

BOLT This part replaces 01550-06303.

01550-0630A

$2.31

11

PIN

04211-11189

$1.80

12

NUT

09159-10069

$7.67

13

NUT

09159-10026

$5.67

14

.GASKET (10.2X20X2.3)

09168-10031

$2.01

15

SPARK PLUG (NGK,DPR8EA-9)

09482-00334

$2.80

15

SPARK PLUG (ND,X24EPR-U9)

09482-00335

$4.90

16

GEAR, TACHO. DRIVEN (NT:10)

26431-45002

$54.45

17

SLEEVE

26441-49000

$27.16

18

SEAL BAND

26451-45000

$4.63

19

OIL SEAL (5X12X8)

09289-05002

$7.61

20

SCREW (5X12)

09128-05101

$1.41

21

PIPE, INTAKE

13101-01D40

$40.84

22

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.80

23

SCREW This part replaces 02112-16163.

02112-1616A

$2.50

24

CLAMP

09402-54208

$5.09
