1983 Suzuki GS450TX Wiring Harness Diagram

← All diagrams

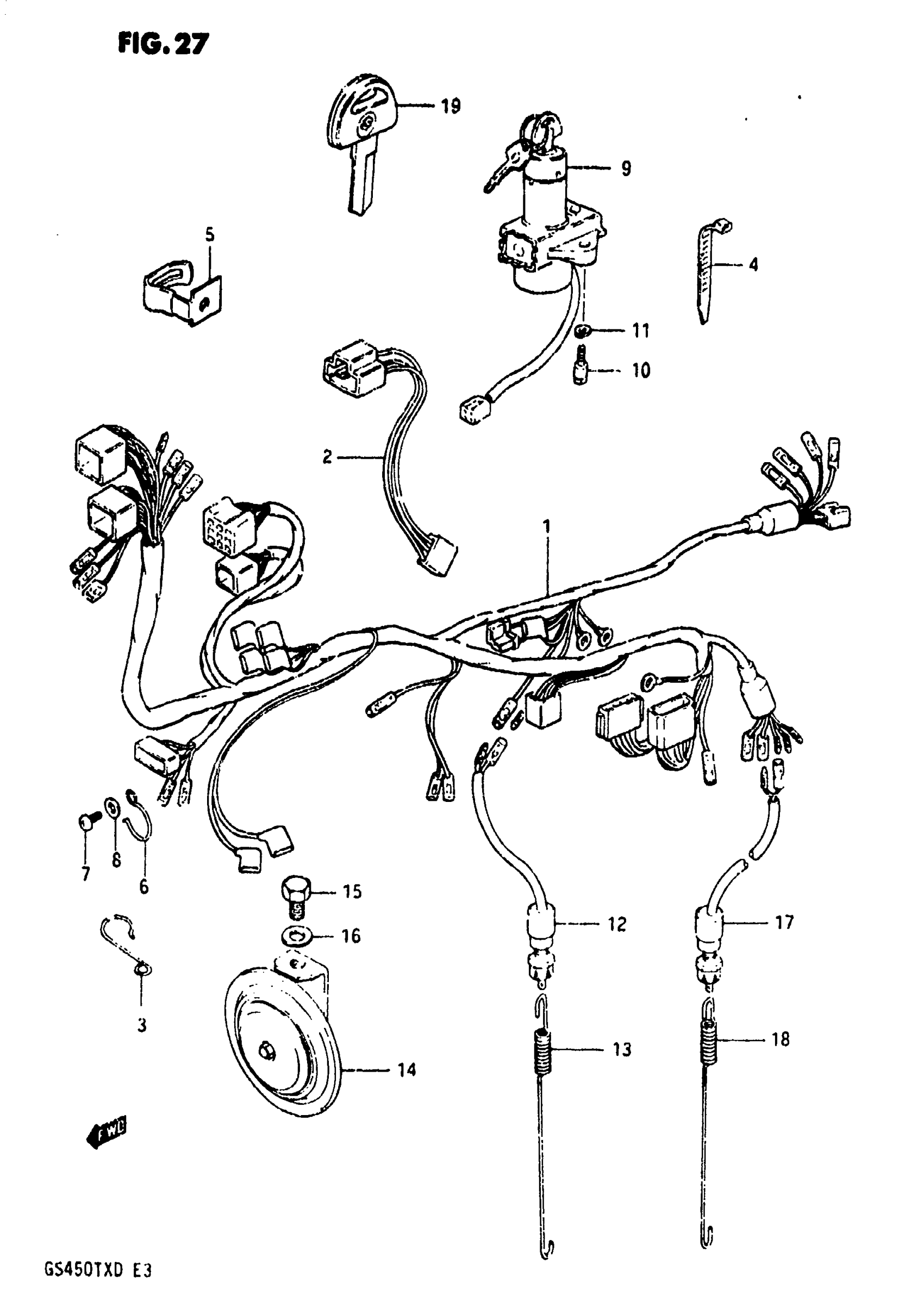

Find the part on the Wiring Harness diagram for your 1983 Suzuki GS450TX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS450TX Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 36610-44700.

36610-44X50

1
Out of stock

2

LEAD WIRE, HEADLAMP This part replaces 36852-34000.

36853-30500

1
Out of stock

3

CLIP This part replaces 36619-44400.

36619-44401

1
Out of stock

4

CLAMP

09407-14403

2
Out of stock

5

CLAMP

36650-33201

1
Out of stock

6

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

1
Out of stock

7

SCREW This part replaces 02112-06128.

02112-06127

2
Out of stock

8

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

9

SWITCH ASSY, IGNITION | Includes Item(s) 10 - 11

37100-45301

1
Out of stock

10

BOLT This part replaces 37152-47010.

07130-0616B

2
Out of stock

11

2

$2.28

In stock

12

SWITCH, REAR BRAKE LAMP This part replaces 37740-04571.

37740-48071

1
Out of stock

13

SPRING This part replaces 09443-06035.

09443-06035-XC0

1
Out of stock

14

HORN

38500-44410

1
Out of stock

15

BOLT This part replaces 01107-08128.

01500-08127

1
Out of stock

16

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

17

SWITCH, PROP STAND WARNING

37840-34500

1
Out of stock

18

SPRING This part replaces 09443-06030.

09443-06048-XC0

1
Out of stock

19

KEY, BLANK | OPT

37146-47010

1
Out of stock
