1982 Suzuki GS450T Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1982 Suzuki GS450T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

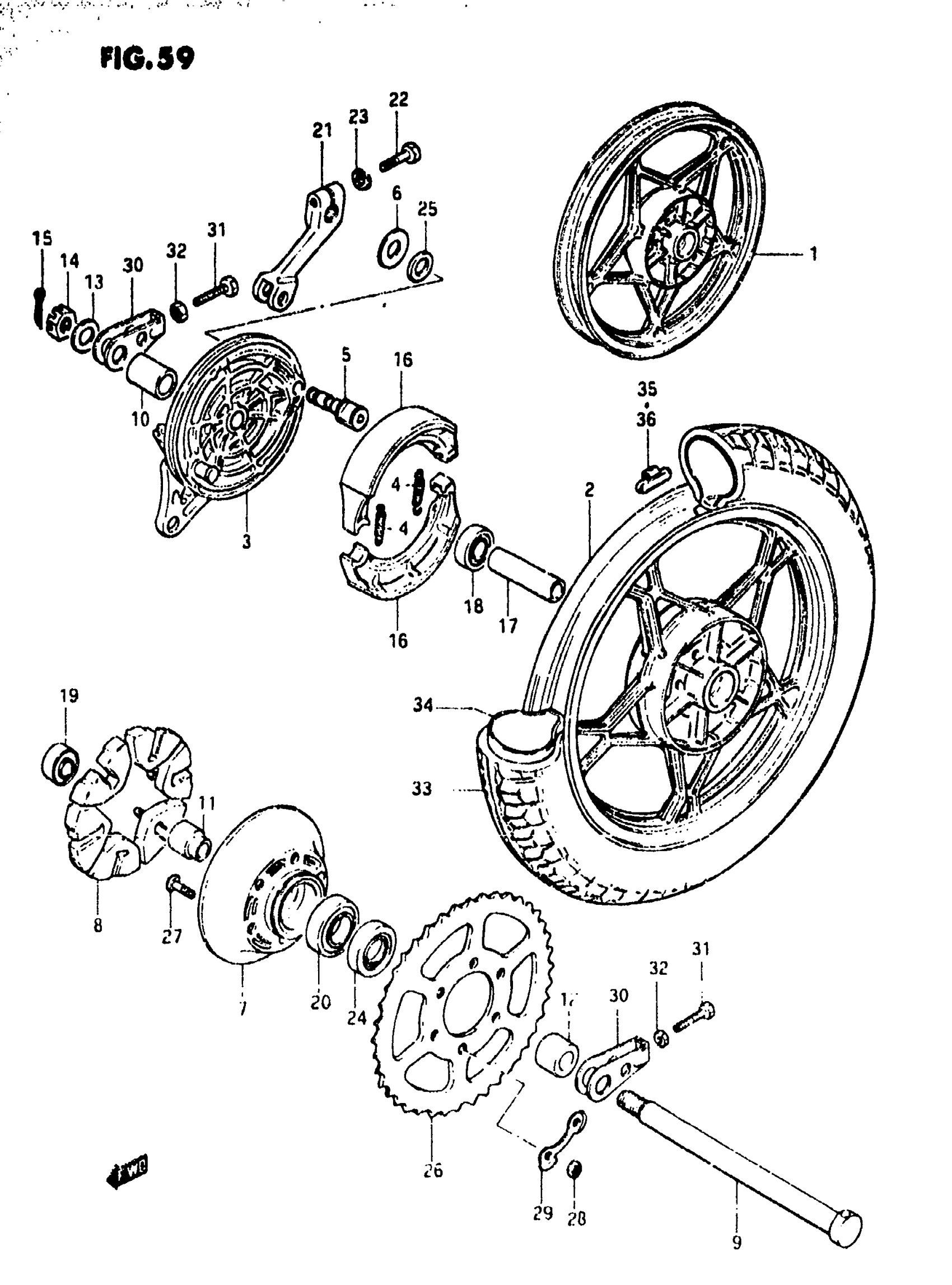

1982 Suzuki GS450T Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (17xMT2.15) | MODEL X

64150-44300-12U

1
Out of stock

2

WHEEL, REAR (17xMT2.15) | MODEL Z

64150-44310-291

1
Out of stock

3

PANEL

64210-44060

1
Out of stock

4

SPRING

55420-30000

2
Out of stock

5

1

$31.18

In stock

6

1

$2.78

In stock

7

DRUM, SPROCKET

64611-44001

1
Out of stock

8

6

$15.37

In stock

9

AXLE,REAR This part replaces 64711-33000.

64711-3300V

1
Out of stock

10

SPACER, RH

09180-17043

1
Out of stock

11

SPACER,RR HUB B This part replaces 64733-33000.

64733-3300V

1
Out of stock

12

SPACER, LH

09180-17042

1
Out of stock

13

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

1
Out of stock

14

NUT

09141-16001

1
Out of stock

15

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

16

SHOE SET, BRAKE This part replaces 64410-11301.

64400-11860

1
Out of stock

17

SPACER,17.6X24X This part replaces 09180-17056.

09180-17056-XC0

1
Out of stock

18

BEARING RH

08143-63037

1

$21.98

In stock

19

BEARING, LH

08143-62037

1

$17.89

In stock

20

BEARING

08113-62057

1

$27.83

In stock

21

LEVER, BRAKE CAM

64451-44001

1
Out of stock

22

1

$2.10

In stock

24

1

$26.05

In stock

26

SPROCKET, REAR (NT:43)

64511-44210

1
Out of stock

27

BOLT This part replaces 09119-10002.

09105-10001

6
Out of stock

28

NUT This part replaces 09140-10026.

09140-10026-XC0

6
Out of stock

29

LOCK WASHER

09169-10006

3
Out of stock

30

ADJUSTER, CHAIN

61410-44200

2
Out of stock

31

BOLT (8X50) | MODEL X This part replaces 09104-08006.

09104-08034

2
Out of stock

31

BOLT (8X50) | MODEL Z This part replaces 09104-08018.

09104-08034

2
Out of stock

32

2

$1.93

In stock

33

TIRE, REAR (110/90/17 60S) | IRC

65100-44310

1
Out of stock

34

TUBE ASSY, WHEEL INNER This part replaces 65200-44300.

65200-49030

1
Out of stock

35

BALANCER | MODEL X

55411-47001

1
Out of stock

35

BALANCER | MODEL X

55412-47001

1
Out of stock

36

BALANCER | MODEL Z

55412-45100

—
Out of stock
