1982 Suzuki GS450T Left Handle Switch Diagram

← All diagrams

Find the part on the Left Handle Switch diagram for your 1982 Suzuki GS450T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

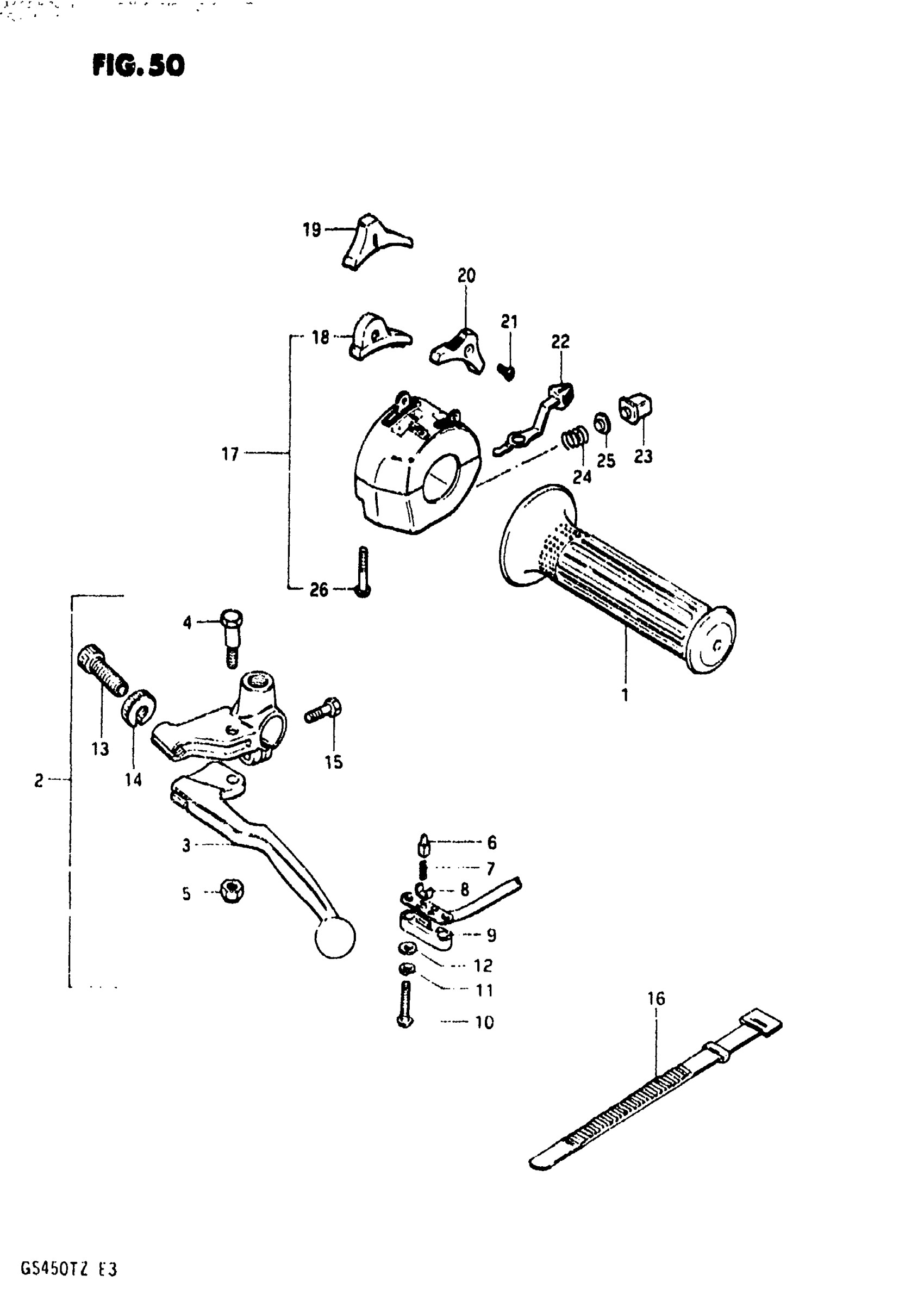

1982 Suzuki GS450T Left Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP This part replaces 57211-45030.

57211-24201

1
Out of stock

2

LEVER ASSY,CLUT | Includes Item(s) 3 - 15 This part replaces 57500-49111.

57500-49301

1
Out of stock

3

LEVER, CLUTCH

57620-49111

1
Out of stock

4

BOLT This part replaces 57431-11011.

57431-11013

1
Out of stock

5

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

6

HOLDER This part replaces 57461-18600.

57465-18601

1
Out of stock

7

HOLDER This part replaces 57462-18600.

57465-18601

1
Out of stock

8

HOLDER This part replaces 57463-18600.

57465-18601

1
Out of stock

9

COVER

57481-33010

1
Out of stock

10

SCREW This part replaces 09125-03105.

09125-03105-XC0

2
Out of stock

11

WASHER,LOCK This part replaces 08321-21038.

09162-03001

2
Out of stock

12

WASHER This part replaces 08322-21038.

08322-01037

1
Out of stock

13

ADJUSTER, CABLE

57441-11010

1
Out of stock

14

NUT

57442-11010

1
Out of stock

15

BOLT

57451-49100

1
Out of stock

16

BAND (L:120)

09407-12402

2
Out of stock

17

SWITCH ASSY, HANDLE LH | Includes Item(s) 18 - 26

37400-45603

1
Out of stock

18

KNOB, STOPPER

37414-45602

1
Out of stock

19

KNOB, DIMMER (OPT)

37411-45012

1
Out of stock

20

KNOB, DIMMER

37421-45012

1
Out of stock

21

SCREW This part replaces 02122-03068.

02122-03067

2
Out of stock

22

KNOB, TURN SIGNAL

37513-45011

1
Out of stock

23

BUTTON, HORN

57371-45000

1
Out of stock

24

SPRING

57382-45000

1
Out of stock

25

CONTACT

57372-45000

1
Out of stock

26

SCREW This part replaces 02112-05258.

02112-05257

2
Out of stock
