1988 Suzuki GS450L Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1988 Suzuki GS450L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

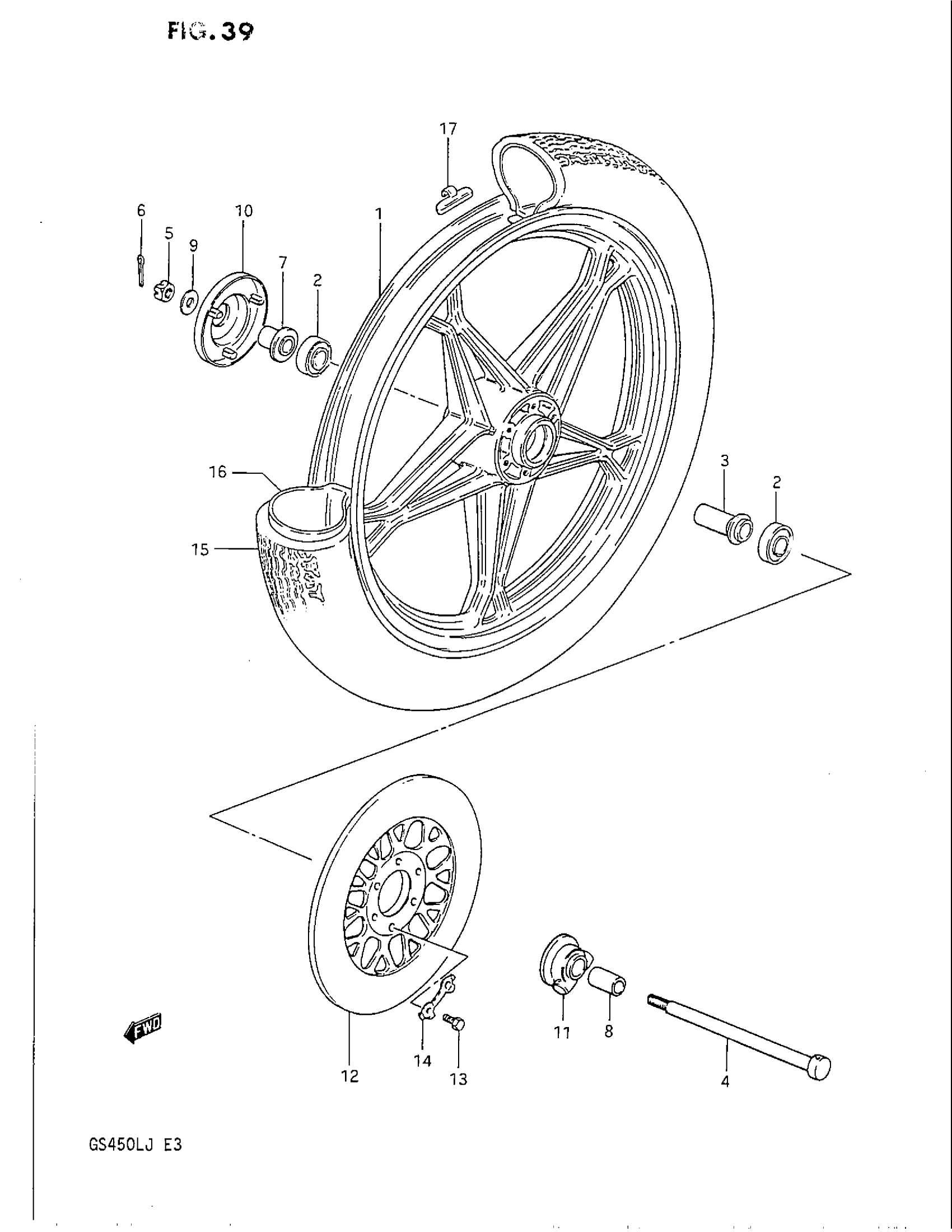

1988 Suzuki GS450L Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL (BLACK)

54111-45300-291

1
Out of stock

2

BEARING This part replaces 08123-63027.

08123-6302B

2
Out of stock

3

SPACER

54730-18400

1
Out of stock

4

AXLE,FRONT This part replaces 54711-33002.

54711-3300V

1
Out of stock

5

NUT This part replaces 08314-31128.

08314-3112A

1
Out of stock

6

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

7

SPACER, BEARING

54740-18410

1
Out of stock

8

SPACER, AXLE (15X22X30)

09180-15034

1
Out of stock

9

WASHER This part replaces 08322-21128.

08322-01127

1
Out of stock

10

COVER, RH

54871-45000

1
Out of stock

11

BOX ASSY,SPEEDO This part replaces 54600-45200.

54600-49101

1
Out of stock

12

DISK, FRONT BRAKE

59211-45200

1
Out of stock

13

BOLT

09100-08140

6
Out of stock

14

WASHER

09169-08016

3
Out of stock

15

TIRE, FRONT (90/90-19.52S) | IRC

55100-44310

1
Out of stock

16

TUBE, INNER FRONT

55200-29010

1
Out of stock

17

BALANCER (10G)

55411-00A00

1
Out of stock

17

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

1
Out of stock

17

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

1
Out of stock
