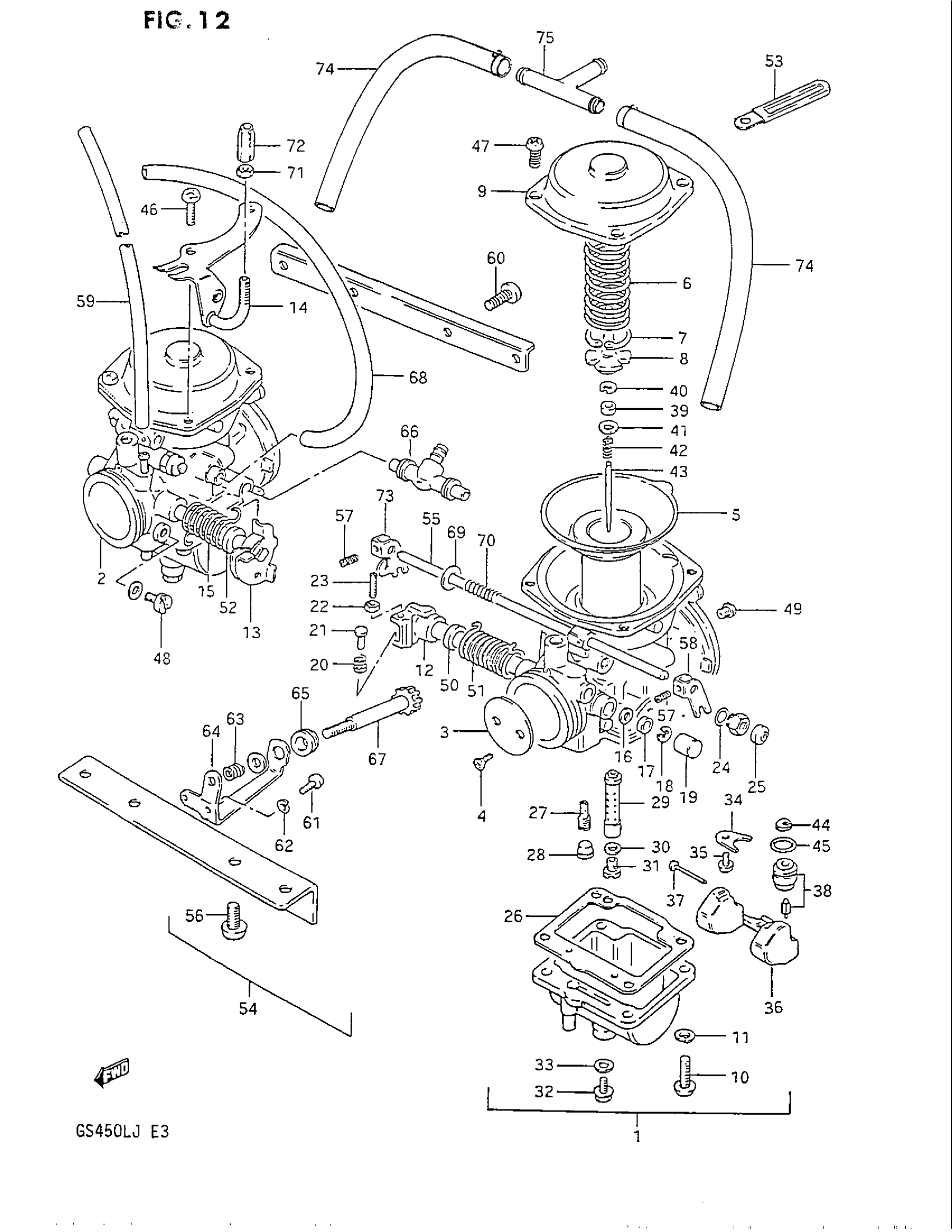

Suzuki GS450L (1988) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH | OTHER THAN CALIFORNIA

13201-44460

Unavailable

1

(CA) CARBURETOR ASSY, LH | MODEL F/G CALIFORNIA ONLY

13201-44480

Unavailable

1

(CA) CARBURETOR ASSY, LH | MODEL H/J CALIFORNIA ONLY

13201-44490

Unavailable

2

CARBURETOR ASSY, RH | OTHER THAN CALIFORNIA

13202-44460

Unavailable

2

(CA) CARBURETOR ASSY, RH | MODEL F/G CALIFORNIA ONLY

13202-44480

Unavailable

2

(CA) CARBURETOR ASSY, RH | MODEL H/J CALIFORNIA ONLY; Includes Item(s) 3 - 53

13202-44490

Unavailable

3

VALVE, THROTTLE (95)

13551-44500

Unavailable

4

SCREW

13604-44080

$2.80

5

DIAPHRAGM

13500-38310

Unavailable

6

SPRING This part replaces 13503-44400.

13503-15510

Unavailable

7

CLIP

13581-44030

Unavailable

8

HOLDER, GUIDE

13389-44030

Unavailable

9

COVER

13502-38300

Unavailable

10

.SCREW This part replaces 02112-05166.

02112-0516A

$1.45

11

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.83

12

SHAFT | LH

13550-44210

Unavailable

13

SHAFT | RH

13550-44220

Unavailable

14

BRACKET | RH

13627-44460

Unavailable

15

SPRING | RH

13573-44210

Unavailable

16

SEAL This part replaces 13651-51010.

13651-51011

$2.36

17

GASKET

13557-47070

$3.38

18

E RING

13617-44080

$2.80

19

CAP

13578-47070

$4.26

20

SPRING | LH

13268-44110

Unavailable

21

PIN | LH

13563-44110

Unavailable

22

NUT | LH

13607-47070

$3.55

23

SCREW | LH

13605-47080

$8.77

24

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.89

25

.CAP, STARTER VALVE

13682-31210

$4.00

26

GASKET,FLOAT CH This part replaces 13251-44080.

13251-44081-H17

$7.94

27

JET, PILOT (45)

09492-45016

$8.87

28

PLUG

13357-44080

$3.97

29

JET, NEEDLE (O-6)

09494-00379

Unavailable

30

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

31

JET, MAIN (115)

09491-23011

$8.81

31

(CA) JET, MAIN (120) | MODEL F/G CALIFORNIA ONLY

09491-24016

$12.38

32

PLUG, DRAIN

13247-44080

$7.51

33

GASKET

13246-44080

$2.80

34

PLATE

13373-11400

$6.63

35

SCREW This part replaces 02112-04066.

02112-0406B

$1.55

36

FLOAT

13250-44080

$26.83

37

PIN

13254-92311

$2.31

38

VALVE ASSY, NEEDLE (2.0) This part replaces 13370-11400.

13370-44500

$46.66

39

RING

13387-47010

$6.80

40

E RING

13394-10010

$6.15

41

GASKET

13254-20010

$4.83

42

SPRING

13388-47010

$9.17

43

NEEDLE, JET (5CDT60)

13383-44460

Unavailable

43

(CA) NEEDLE, JET (5DX87) | MODEL F/G CALIFORNIA ONLY

13383-44400

Unavailable

44

FILTER This part replaces 13376-65010.

13376-19F00

$9.41

45

O RING This part replaces 13374-44080.

13374-35C00

$5.48

46

SCREW, THROTTLE | RH This part replaces 02112-05106.

02112-0510A

$1.43

47

SCREW | LH:4,RH:2 This part replaces 02112-05086.

02112-0508A

$1.43

48

SCREW | RH

13605-73000

$13.50

49

JET, PILOT AIR (145)

09493-29001

Unavailable

49

(CA) JET, PILOT AIR (135) | MODEL F/G CALIFORNIA ONLY

09493-27001

$18.33

50

RING | LH

13387-44200

Unavailable

51

SPRING | LH

13573-44200

Unavailable

52

RING | RH

13387-44210

Unavailable

53

CLAMP | MODEL H/J CALIFORNIA ONLY This part replaces 09404-06401.

09404-06039

$1.73

54

FLANGE ASSY | Includes Item(s) 55 - 73

13210-44460

Unavailable

55

SHAFT, STARTER

13410-44460

Unavailable

56

SCREW This part replaces 02112-06126.

02112-0612A

$1.43

57

SCREW

13605-47070

Unavailable

58

LEVER

13422-44080

Unavailable

59

HOSE(4.5X8.5X60 | L600->240 This part replaces 13683-35420.

09355-45001-600

$8.55

60

SCREW This part replaces 02112-05126.

02112-0512A

$1.45

61

SCREW This part replaces 02112-05086.

02112-0508A

$1.43

62

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.83

63

SPRING This part replaces 13271-44220.

13268-37420

$6.00

64

BRACKET This part replaces 13621-44210.

13627-44120

Unavailable

65

BUSH

13681-44110

Unavailable

66

NIPPLE

13685-11400

Unavailable

67

ADJUSTER

13267-47070

Unavailable

68

HOSE,5X10X600 | L550->350 This part replaces 13684-22A00.

44421-13ER0

$9.08

69

RING

13427-44460

Unavailable

70

SPRING

13437-44500

Unavailable

71

NUT

13661-03010

$6.22

72

ADJUSTER

13577-98011

Unavailable

73

LEVER

13422-44500

Unavailable

74

HOSE(5.3X10.5X6 | MODEL H/J CALIFORNIA ONLY This part replaces 13683-44490.

09355-53001-600

$8.44

75

.JOINT,3 WAY | MODEL H/J CALIFORNIA ONLY

09367-06002

$2.43
