1983 Suzuki GS450L Transmission Diagram

← All diagrams

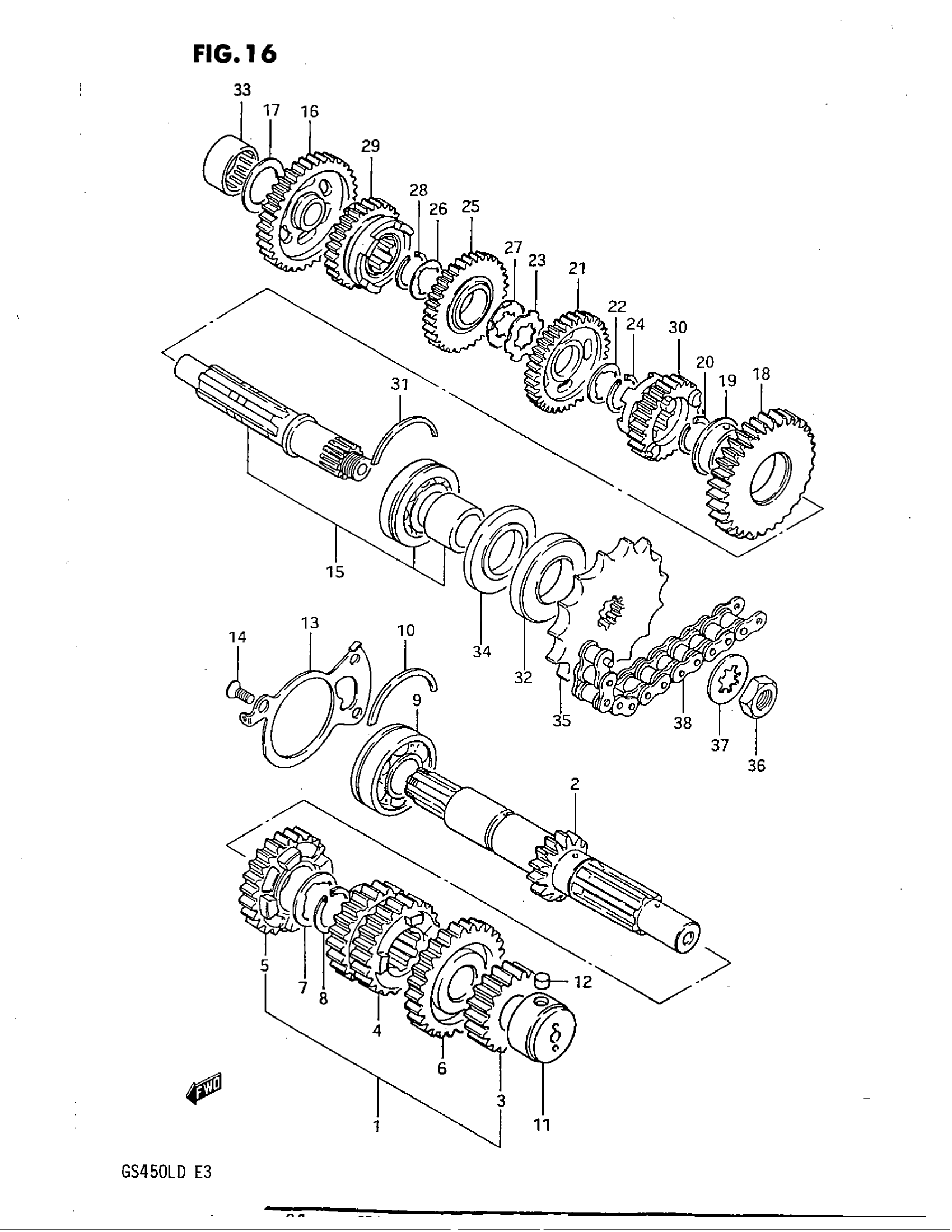

Find the part on the Transmission diagram for your 1983 Suzuki GS450L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS450L Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 8

24120-44100

1
Out of stock

2

COUNTERSHAFT (NT:13)

24121-44100

1
Out of stock

3

GEAR, 2ND DRIVE (NT:18)

24221-44001

1
Out of stock

4

GEAR, 3/4 DRIVE (NT:21/24)

24231-44001

1
Out of stock

5

GEAR, 5TH DRIVE (NT:26)

24250-44001

1
Out of stock

6

GEAR, 6TH DRIVE (NT:27)

24260-44000

1
Out of stock

7

WASHER, 5TH DRIVE This part replaces 08211-25341.

09181-25167

1
Out of stock

8

CIRCLIP

09380-25010

1
Out of stock

9

BEARING, LH This part replaces 09262-25051.

09262-25105

1
Out of stock

10

C RING This part replaces 09390-62006.

09390-62012

1
Out of stock

11

BEARING, LH (20X34X20) This part replaces 09263-20026.

09263-20025

1
Out of stock

12

PIN

04221-07129

1
Out of stock

13

HOLDER, BEARING This part replaces 24741-44100.

24741-44102

1
Out of stock

14

SCREW This part replaces 02122-06168.

02122-06167

3
Out of stock

15

DRIVESHAFT This part replaces 24100-44810.

24100-44811

1
Out of stock

16

GEAR, 1ST DRIVEN (NT:32) This part replaces 24310-44000.

24310-44001

1
Out of stock

17

WASHER

08211-20341

1

$3.05

In stock

18

GEAR, 2ND DRIVEN (NT:32) This part replaces 24321-44004.

24321-20F01

1
Out of stock

19

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

1
Out of stock

20

CIRCLIP

09380-25010

1
Out of stock

21

GEAR, 3RD DRIVEN (NT:29) This part replaces 24331-44002.

24331-44003

1
Out of stock

22

WASHER LOCK (25.1X31X1.0)

09167-25012

1
Out of stock

23

WASHER,LOCK (25.1X41X1.5)

09167-25013

1
Out of stock

24

CIRCLIP

09380-25010

1
Out of stock

25

GEAR, 4TH DRIVEN (NT:27) This part replaces 24341-44002.

24341-44003

1
Out of stock

26

WASHER LOCK (25.1X31X1.0)

09167-25012

1
Out of stock

27

LOCK WASHER

09169-25001

1
Out of stock

28

CIRCLIP

09380-25010

1
Out of stock

29

GEAR, 5TH DRIVEN (NT:25) This part replaces 24351-44001.

24351-20F02

1
Out of stock

30

GEAR, 6TH DRIVEN (NT:23) This part replaces 24361-44002.

24361-44010

1
Out of stock

31

C RING This part replaces 09390-62006.

09390-62012

1
Out of stock

32

OIL SEAL

09283-32015

1
Out of stock

33

BEARING, RH (20X34X17) This part replaces 09263-20028.

09263-20027

1
Out of stock

34

OIL SEAL

09282-32002

1
Out of stock

35

SPROCKET, ENGINE (NT:16)

27511-44000

1
Out of stock

36

NUT

09140-20009

1
Out of stock

37

WASHER (25.3X41.6X1) This part replaces 09167-25011.

09167-25019

1
Out of stock

38

NO DESCRIPTION AVAILABLE This part replaces 27600-44410.

27600-44X01-108

1
Out of stock
