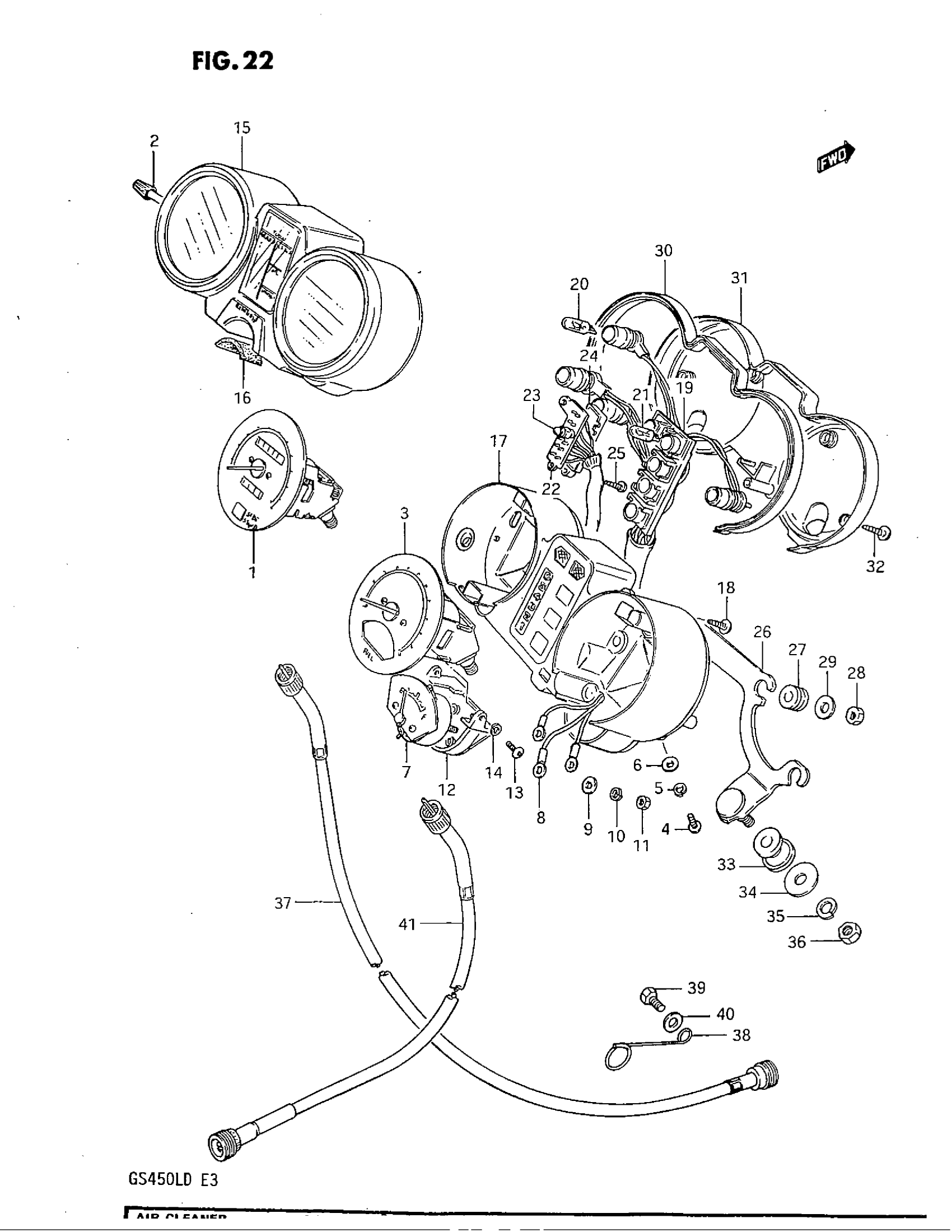

Suzuki GS450L (1983) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-44930

Unavailable

2

KNOB

34980-45020

$3.55

3

TACHOMETER This part replaces 34220-44930.

34220-44910

Unavailable

4

SCREW This part replaces 02112-04108.

02112-04107

$1.55

5

WASHER This part replaces 08322-21048.

08322-01047

$1.88

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

7

FUELMETER This part replaces 34320-44910.

34320-44911

Unavailable

8

LEAD WIRE, FUELMETER This part replaces 34378-44910.

34378-44911

Unavailable

9

WASHER

34384-33220

Unavailable

10

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.18

11

NUT This part replaces 08310-11038.

08310-0003B

$3.08

12

BRACKET, FUELMETER

34350-44910

Unavailable

13

SCREW This part replaces 02112-03108.

02112-03107

$1.68

14

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.18

15

HOOD, METER

34150-44910

Unavailable

16

SEAL

34993-47000

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 34111-44930.

34111-44900

Unavailable

18

SCREW

02142-04127

$1.58

19

SOCKET

36321-44930

Unavailable

20

BULB (12V,3.4W)

09471-12028

$1.98

21

BULB (12V,1.7W)

09471-12077

$3.25

22

SOCKET, GEAR INDICATOR

36453-44910

Unavailable

23

BULB

09471-12078

Unavailable

24

COVER, GEAR INDICATOR

36454-44910

Unavailable

25

SCREW This part replaces 03211-03168.

03211-03166

Unavailable

26

BRACKET, METER

34950-44910

Unavailable

27

CUSHION, METER NO.1 This part replaces 34189-44910.

34189-32B00

$6.53

28

NUT This part replaces 08310-11058.

08310-00057

$1.83

29

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.33

30

RING, COVER

34961-44910

Unavailable

31

COVER, LOWER

34193-44910

Unavailable

32

SCREW

02142-04127

$1.58

33

CUSHION

34956-31001

$4.11

34

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.10

35

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

36

NUT This part replaces 08310-12088.

08310-00087

$1.83

37

CABLE ASSY,SPEE This part replaces 34910-44900.

34910-45124

Unavailable

38

GUIDE, METER CABLE

34938-45100

$7.42

39

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

40

WASHER This part replaces 08322-21068.

08322-01067

$1.86

41

CABLE ASSY,TACH This part replaces 34940-44111.

34940-05312

$45.60
