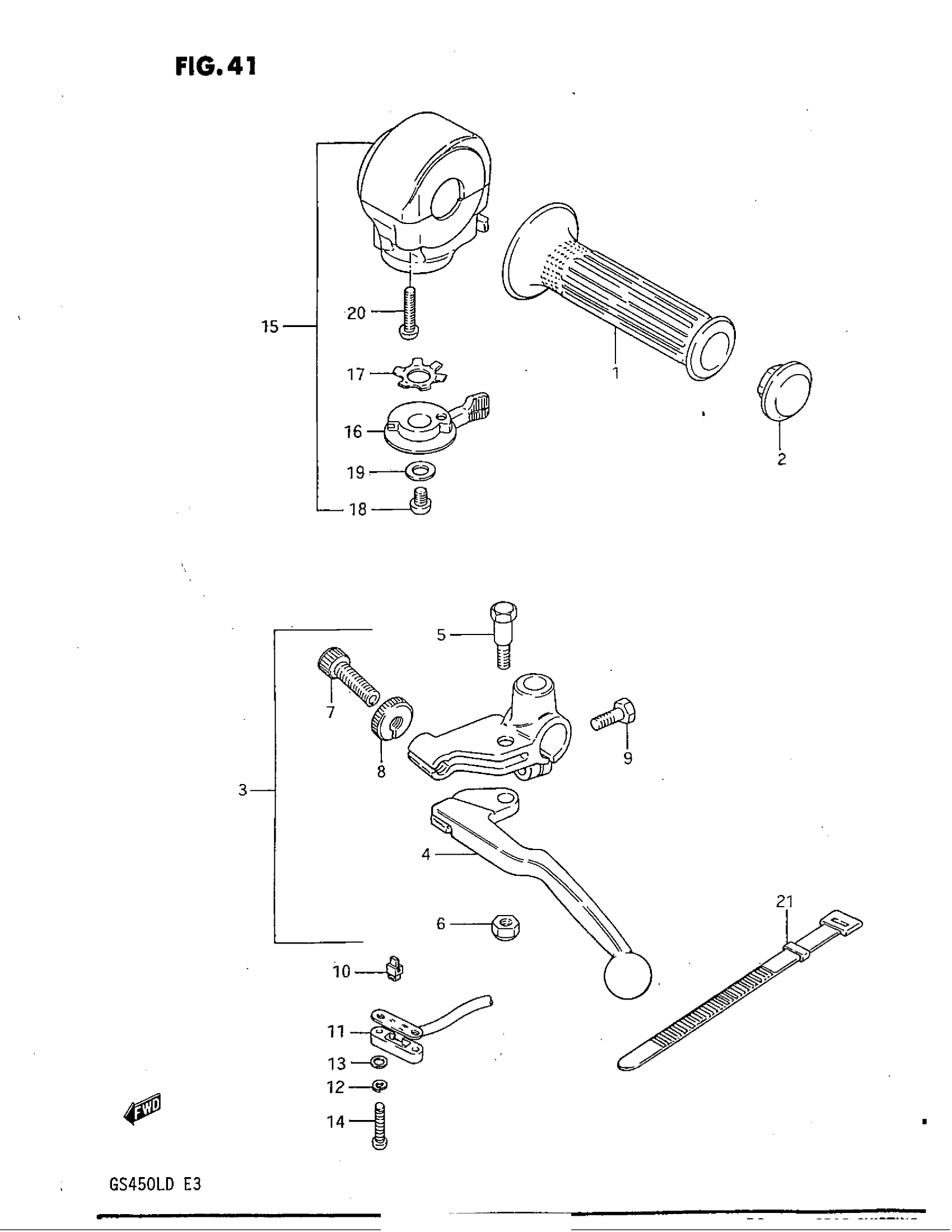

Suzuki GS450L (1983) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, LH This part replaces 57211-44100.

57211-49500

$13.14

2

CAP, GRIP END LH

57216-49100

Unavailable

3

LEVER ASSY, CLUTCH | Includes Item(s) 4 - 14 This part replaces 57500-49130.

57500-49131

Unavailable

4

LEVER, CLUTCH

57620-49111

$21.26

5

BOLT This part replaces 57431-11011.

57431-11013

$5.95

6

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

7

ADJUSTER, CABLE

57441-44400

$5.91

8

NUT This part replaces 57442-44400.

57442-11010

$2.80

9

BOLT

57451-49100

Unavailable

10

HOLDER

57465-18601

$3.97

11

COVER

57481-33010

$5.50

12

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.18

13

WASHER This part replaces 08322-21038.

08322-01037

$1.95

14

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.08

15

SWITCH ASSY, HANDLE LH | Includes Item(s) 16 - 20 This part replaces 37400-09320.

37400-33420

Unavailable

16

LEVER, STARTER

37571-45110

Unavailable

17

WASHER

37573-45110

Unavailable

18

SCREW This part replaces 02112-06088.

02112-06087

$1.45

19

.WASHER This part replaces 08322-11068.

08322-0106B

$2.24

20

SCREW This part replaces 02112-05258.

02112-05257

$1.49

21

BAND (L:120)

09407-12402

$2.80
