Partiron

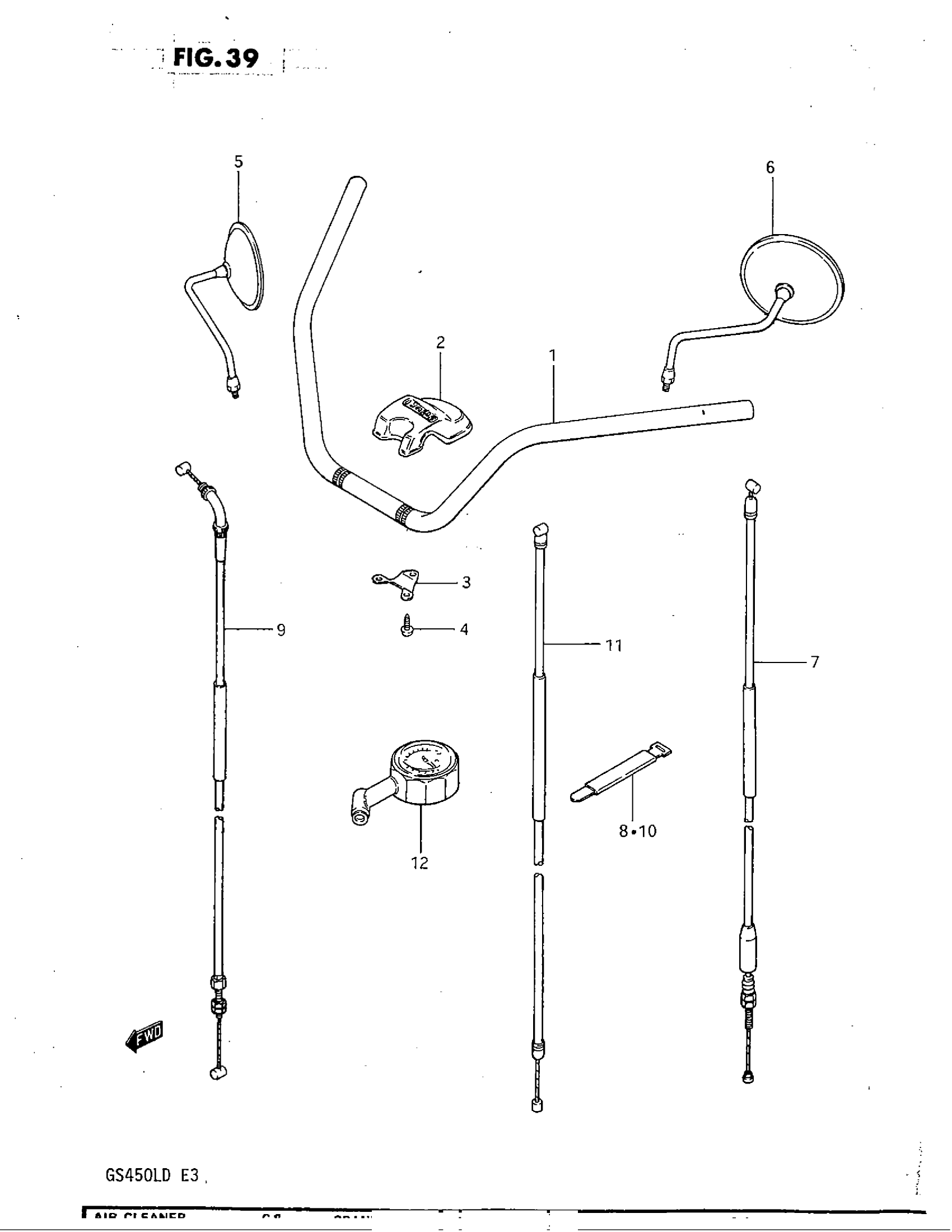

Suzuki GS450L (1983) HANDLEBAR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 56111-44900.

56111-44901

Unavailable

2

COVER

56171-45900

Unavailable

3

BRACKET, HEAD COVER

56175-39001

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 09132-04020.

09132-04026

Unavailable

5

MIRROR ASSY,RR This part replaces 56500-44200.

56500-44202

$78.15

6

MIRROR ASSY,LH This part replaces 56600-44200.

56600-44202

$110.17

7

CABLE,CLUTCH This part replaces 58200-44210.

58200-11901

Unavailable

8

CLAMP This part replaces 09407-18301.

09407-18302

$2.27

9

CABLE, THROTTLE This part replaces 58300-44231.

58300-44232

Unavailable

10

CLAMP This part replaces 09407-18301.

09407-18302

$2.27

11

CABLE COMP,STAR This part replaces 58410-44900.

58410-44X06

Unavailable

12

GAUGE, FRONT FORK AIR

96200-41330

Unavailable
