1983 Suzuki GS450L Front Calipers Diagram

← All diagrams

Find the part on the Front Calipers diagram for your 1983 Suzuki GS450L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

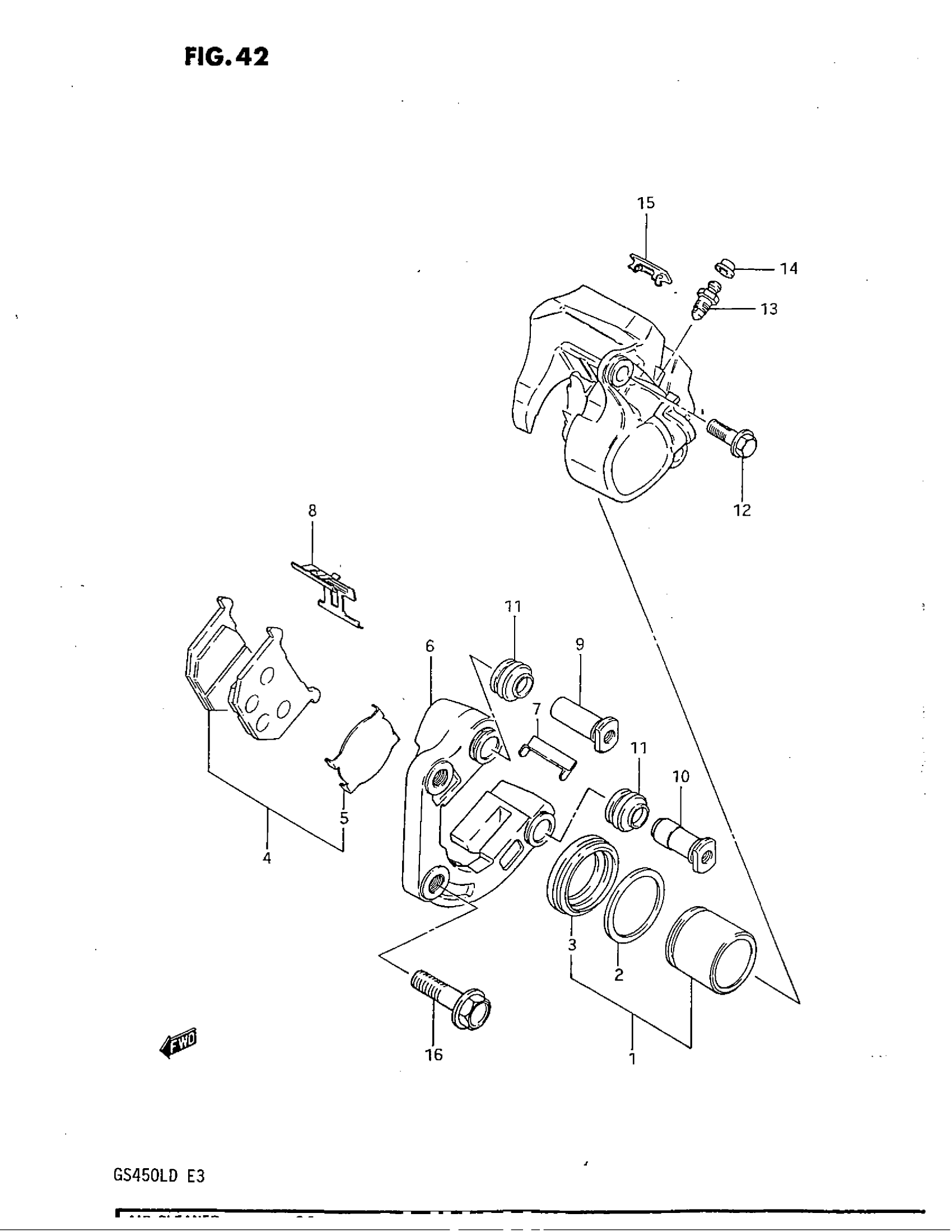

1983 Suzuki GS450L Front Calipers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 15 This part replaces 59300-45253.

59300-45290

1
Out of stock

1

PISTON SET

59301-45830

1
Out of stock

2

PISTON SEAL This part replaces 55136-66310.

69107-38B00

1
Out of stock

3

BOOT, PISTON

59308-45250

1
Out of stock

4

PAD SET This part replaces 59301-45811.

59302-45850-XNA

1
Out of stock

5

SHIM, PAD

59371-45200

1
Out of stock

6

HOLDER, CALIPERS LH

59301-45841

1
Out of stock

7

GUIDE, PAD

59316-45201

2
Out of stock

8

SPRING, PAD

59315-45200

1
Out of stock

9

AXLE, CALIPERS NO.1

59305-45200

1
Out of stock

10

AXLE, CALIPERS NO.2

59306-45200

1
Out of stock

11

BOOT, AXLE

59312-45200

2
Out of stock

12

BOLT

59314-45201

1
Out of stock

13

BLEEDER

59121-18410

1
Out of stock

14

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

1
Out of stock

15

COVER

59324-45201

1
Out of stock

16

BOLT

09103-10019

2
Out of stock
