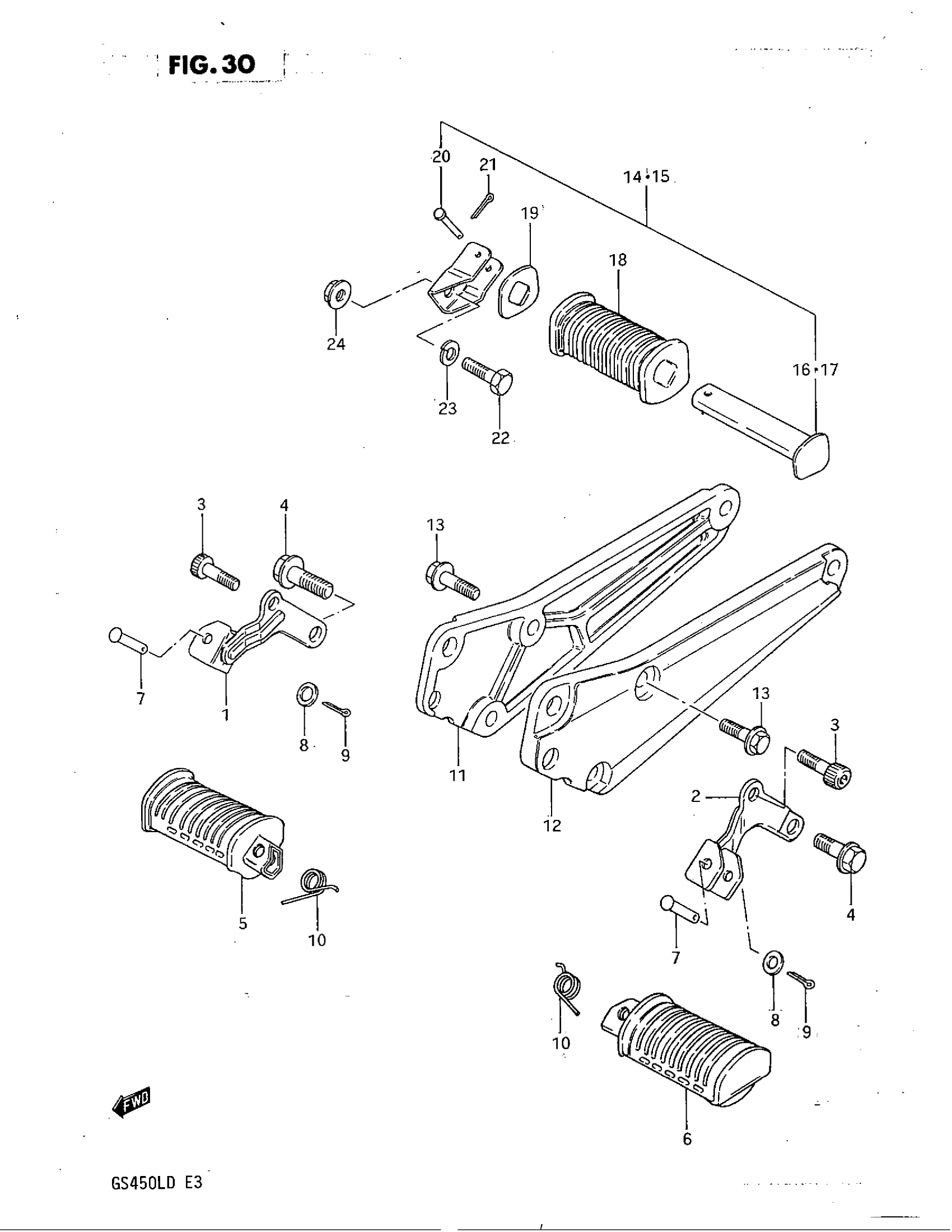

Find the part on the Footrest diagram for your 1983 Suzuki GS450L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS450L Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR, FOOTREST RH

43510-44900

1
Out of stock

2

BAR, FOOTREST LH

43520-44900

1
Out of stock

3

BOLT, BRACKET This part replaces 09106-08017.

07130-08207

2
Out of stock

4

BOLT (10X20) This part replaces 01527-10258.

01550-1025A

2
Out of stock

5

RUBBER,PILLION This part replaces 43550-37301.

43550-37310

1
Out of stock

6

1

$32.87

In stock

7

PIN

09200-08002

2
Out of stock

8

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

10

SPRING

09448-14012

2
Out of stock

11

BRACKET, MUFFLER RH

43811-44110

1
Out of stock

12

BRACKET, MUFFLER LH

43821-44110

1
Out of stock

13

BOLT (10X20) This part replaces 01527-10258.

01550-1025A

2
Out of stock

14

FOOTREST, PILLION RH

43600-34500

1
Out of stock

15

FOOTREST, PILLION LH | Includes Item(s) 16 - 21

43700-34500

1
Out of stock

16

BAR, PILLION FOOTREST, RH

43610-49201

1
Out of stock

17

BAR, PILLION FOOTREST, LH

43620-49201

1
Out of stock

18

RUBBER

43612-49201

2
Out of stock

19

WASHER This part replaces 43631-49201.

43631-45001

2
Out of stock

20

PIN

09200-06010

2
Out of stock

21

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

22

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

2
Out of stock

23

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

24

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

2
Out of stock
