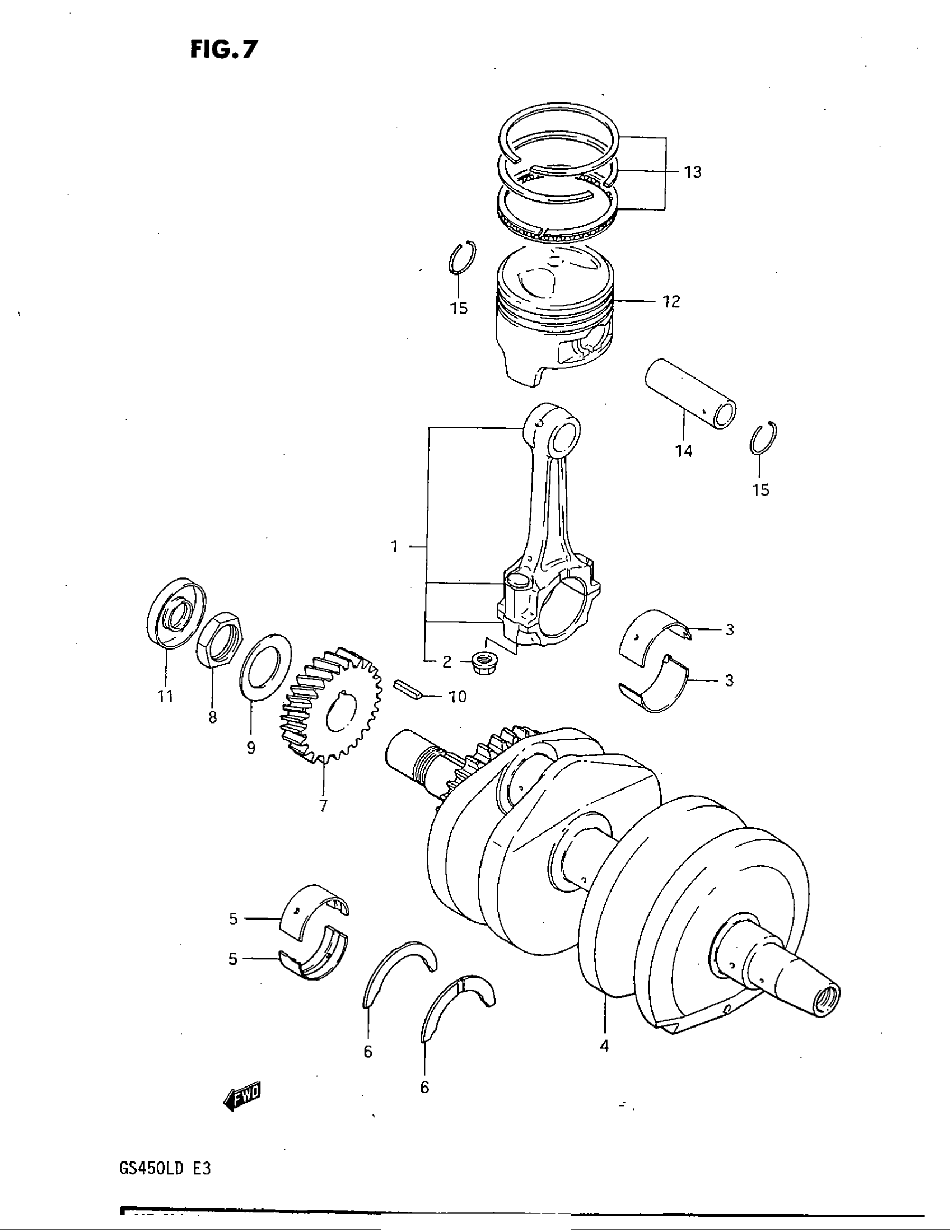

Find the part on the Crankshaft diagram for your 1983 Suzuki GS450L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS450L Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

NUT

09159-08033

4

$3.80

In stock

3

BEARING, CRANK PIN (GREEN) This part replaces 12164-44110-010.

12164-01D01-0A0

4
Out of stock

3

4

$18.03

In stock

3

BEARING, CRANK PIN (US:0.5) | OPT

12164-44100-050

4
Out of stock

4

CRANKSHAFT This part replaces 12220-44101.

12220-01D02

1
Out of stock

5

8

$7.94

In stock

5

8

$11.15

In stock

5

8

$14.43

In stock

5

8

$14.43

In stock

5

BEARING, CRANKSHAFT (US:0.25) | OPT

12229-44100-025

8
Out of stock

5

BEARING, CRANKSHAFT (US:0.5) | OPT

12229-44100-050

8
Out of stock

6

BEARING, THRUST

12228-44106

2

$11.37

In stock

7

GEAR, PRIMARY DRIVE (NT:28)

21111-44100

1
Out of stock

8

NUT

09140-24007

1

$3.84

In stock

9

WASHER

09164-25001

1
Out of stock

10

KEY

08341-31059

1

$2.61

In stock

12

PISTON (STD)

12111-44100

2
Out of stock

12

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-44100-050.

12103-44810-050

2
Out of stock

12

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-44100-100.

12103-44810-100

2
Out of stock

13

PISTON RING SET (STD)

12140-44110

2
Out of stock

13

PISTON RING SET (OS:0.5) | OPT

12140-44110-050

2
Out of stock

13

PISTON RING SET (OS:1.0) | OPT

12140-44111-100

2
Out of stock

14

2

$19.60

In stock

15

CIRCLIP

09381-18002

4
Out of stock
