1983 Suzuki GS450L Carburetor Diagram

← All diagrams

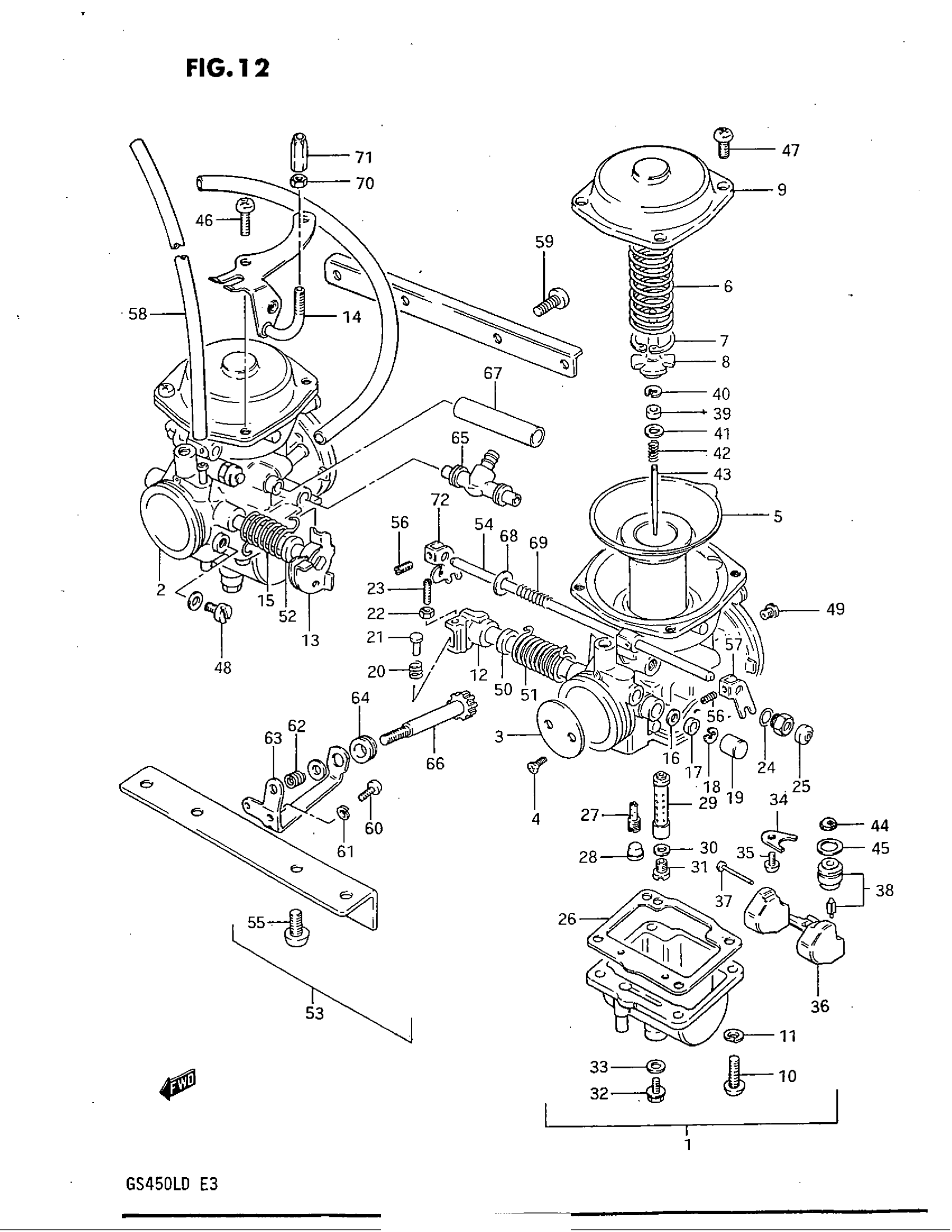

Find the part on the Carburetor diagram for your 1983 Suzuki GS450L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS450L Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY, LH

13201-44460

1
Out of stock

2

CARBURETOR ASSY, RH | Includes Item(s) 3 - 52

13202-44460

1
Out of stock

3

VALVE, THROTTLE (95)

13551-44500

2
Out of stock

4

SCREW

13604-44080

4
Out of stock

5

DIAPHRAGM ASSY This part replaces 13500-49200.

13500-38310

2
Out of stock

6

SPRING This part replaces 13503-44400.

13503-15510

2
Out of stock

7

CLIP

13581-44030

2
Out of stock

8

HOLDER, GUIDE

13389-44030

2
Out of stock

9

COVER

13502-38300

2
Out of stock

10

SCREW This part replaces 02112-05168.

02112-05167

8
Out of stock

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

8
Out of stock

12

SHAFT | LH

13550-44210

1
Out of stock

13

SHAFT | RH

13550-44220

1
Out of stock

14

BRACKET | RH

13627-44460

1
Out of stock

15

SPRING | RH

13573-44210

1
Out of stock

16

SEAL This part replaces 13651-51010.

13651-51011

4
Out of stock

17

GASKET

13557-47070

2
Out of stock

18

E RING

13617-44080

2
Out of stock

19

CAP

13578-47070

2
Out of stock

20

SPRING | LH This part replaces 13268-44100.

13268-44110

1
Out of stock

21

PIN | LH

13563-44110

1
Out of stock

22

NUT | LH

13607-47070

1
Out of stock

23

SCREW | LH

13605-47080

1
Out of stock

24

2

$2.01

In stock

25

.CAP, STARTER VALVE

13682-31210

2

$4.36

In stock

26

GASKET,FLOAT CH This part replaces 13251-44080.

13251-44081-H17

2
Out of stock

27

JET, PILOT (45)

09492-45016

2
Out of stock

28

PLUG

13357-44080

2
Out of stock

29

JET, NEEDLE (O-6)

09494-00379

2
Out of stock

30

2

$2.92

In stock

31

JET, MAIN (115)

09491-23011

2
Out of stock

32

PLUG, DRAIN

13247-44080

2

$8.18

In stock

33

GASKET

13246-44080

2

$2.92

In stock

34

PLATE

13373-11400

2

$7.22

In stock

35

2

$1.67

In stock

36

FLOAT

13250-44080

2
Out of stock

37

PIN

13254-92311

2

$2.41

In stock

39

2

$7.41

In stock

40

2

$4.76

In stock

41

GASKET

13382-47010

2

$3.65

In stock

42

SPRING

13388-47010

2

$9.17

In stock

43

NEEDLE, JET (5CDT60)

13383-44460

2
Out of stock

44

2

$10.26

In stock

45

2

$5.97

In stock

46

SCREW | RH This part replaces 02112-05108.

02112-05107

2
Out of stock

47

6

$1.55

In stock

48

SCREW | RH This part replaces 13605-45410.

13605-73000

1
Out of stock

49

JET, PILOT AIR (145)

09493-29001

2
Out of stock

50

RING | LH

13387-44200

1
Out of stock

51

SPRING | LH

13573-44200

1
Out of stock

52

RING | RH

13387-44210

1
Out of stock

53

FLANGE ASSY | Includes Item(s) 54 - 72

13210-44460

1
Out of stock

54

SHAFT, STARTER

13410-44460

1
Out of stock

55

SCREW This part replaces 02112-06128.

02112-06127

4
Out of stock

56

SCREW

13605-47070

2
Out of stock

57

LEVER

13422-44080

1
Out of stock

58

HOSE(4.5X8.5X60 This part replaces 13687-18656.

09355-45001-600

1
Out of stock

59

SCREW This part replaces 02112-05128.

02112-05127

4
Out of stock

60

1

$1.55

In stock

61

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

62

1

$6.00

In stock

63

BRACKET This part replaces 13621-44210.

13627-44120

1
Out of stock

64

BUSH

13681-16600

1
Out of stock

65

NIPPLE

13685-11400

1
Out of stock

66

ADJUSTER

13267-47070

1
Out of stock

67

HOSE,5X10X600 This part replaces 13683-11400.

44421-13ER0

2
Out of stock

68

RING

13427-44460

1
Out of stock

69

SPRING

13437-44500

1
Out of stock

70

NUT

13661-03010

1
Out of stock

71

ADJUSTER

13577-98010

1
Out of stock

72

LEVER

13422-44500

1
Out of stock
