1982 Suzuki GS450L Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 1982 Suzuki GS450L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

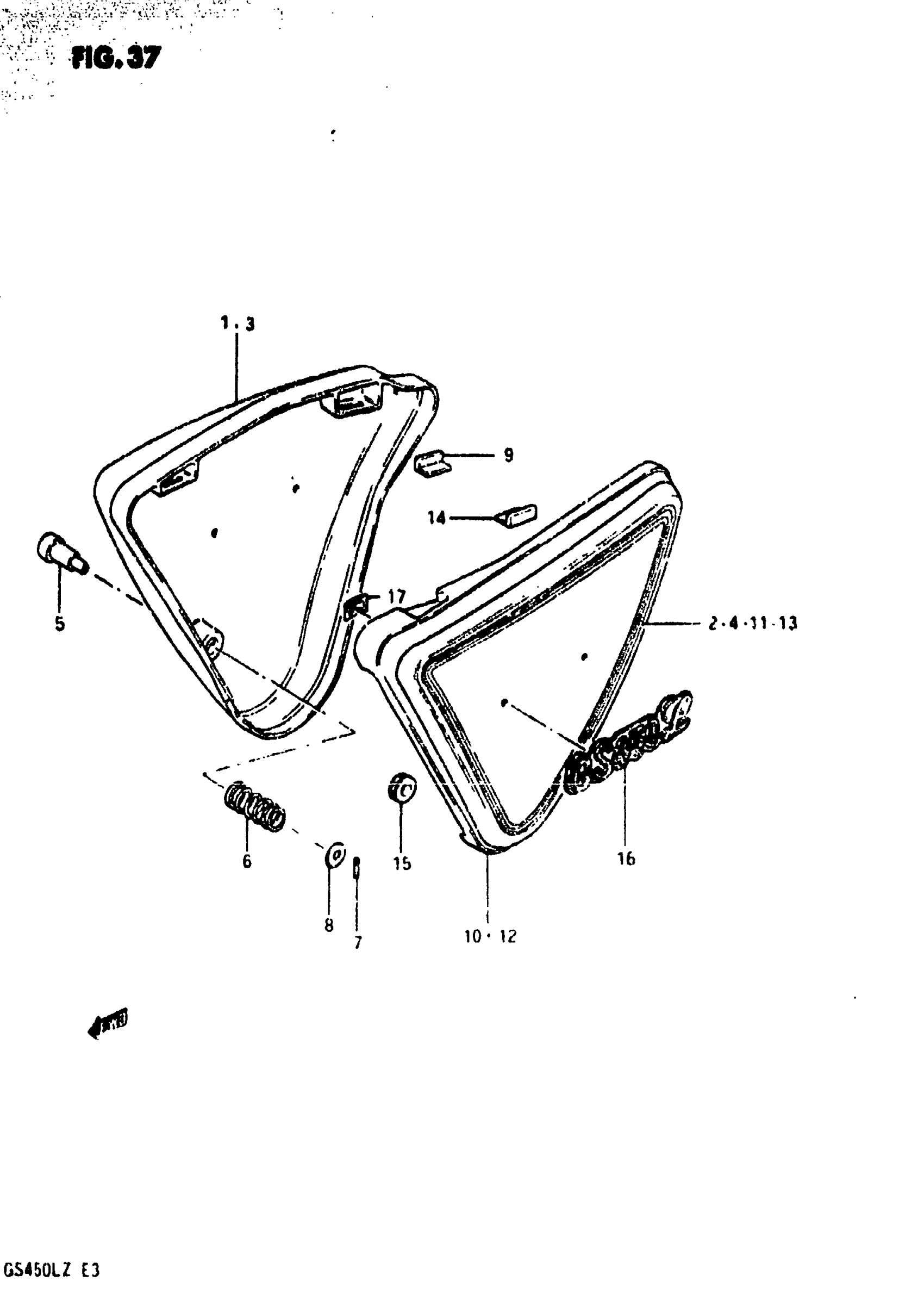

1982 Suzuki GS450L Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH This part replaces 47111-44210-019.

47111-44210

1
Out of stock

2

TAPE SET, RH

68130-44210-66Y

1
Out of stock

3

COVER,FRAME, RH This part replaces 47111-44210-00J.

47111-11400

1
Out of stock

4

TAPE SET, RH

68130-44210-71P

1
Out of stock

5

KNOB, FRAME COVER RH

47130-44200

1
Out of stock

6

SPRING This part replaces 09440-17004.

09440-20009-XC0

1
Out of stock

7

PIN

09205-02011

1
Out of stock

8

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

1
Out of stock

9

CUSHION, UPPER

47117-45000

2

$2.48

In stock

10

COVER,FRAME LH This part replaces 47211-44210-019.

47211-11400

1
Out of stock

11

TAPE SET, LH

68140-44210-66Y

1
Out of stock

12

COVER,FRAME LH This part replaces 47211-44210-00J.

47211-11400

1
Out of stock

13

TAPE SET, LH

68140-44210-71P

1
Out of stock

14

CUSHION, UPPER

47117-45000

2

$2.48

In stock

15

CUSHION, LOWER

09320-08018

1
Out of stock

16

EMBLEM This part replaces 68131-44220.

68131-44240

2
Out of stock

17

NUT

09148-03002

4
Out of stock
