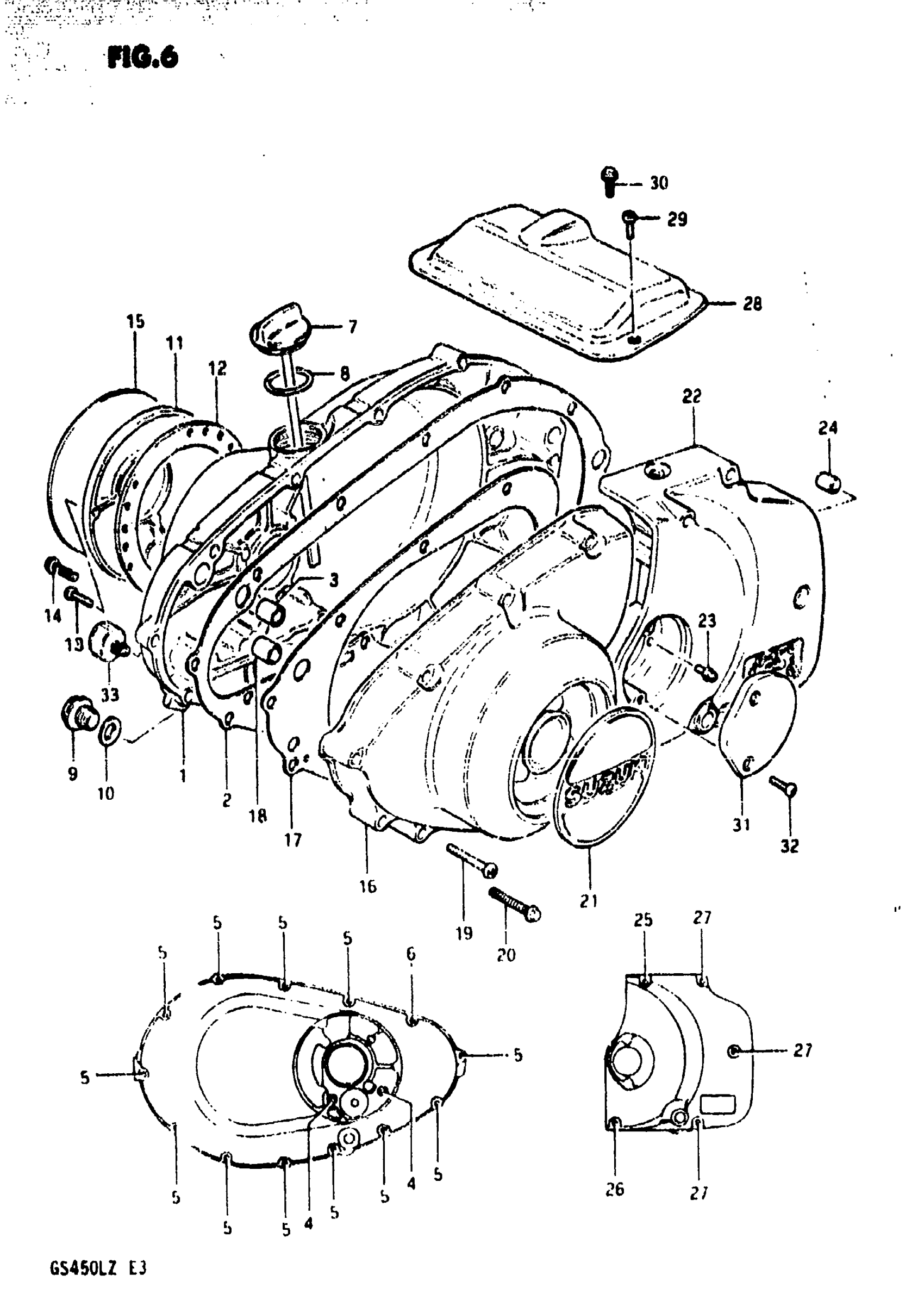

Find the part on the Crankcase Cover diagram for your 1982 Suzuki GS450L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Suzuki GS450L Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | ~E.NO.156609 This part replaces 11341-44100.

11341-44101

1
Out of stock

1

COVER, CLUTCH | E.NO.156610~

11341-44101

1
Out of stock

2

GASKET, CLUTCH COVER This part replaces 11482-44100.

11482-44110

1
Out of stock

3

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

4

SCREW (6x55)

02112-06557

2
Out of stock

4

BOLT This part replaces 01547-06558.

01547-06557

2
Out of stock

5

SCREW This part replaces 02112-06358.

02112-06357

12
Out of stock

5

BOLT This part replaces 01547-06358.

01547-06357

12
Out of stock

6

SCREW This part replaces 02112-06258.

02112-06257

1
Out of stock

6

BOLT This part replaces 01547-06258.

01547-06257

1
Out of stock

7

GAUGE, OIL LEVEL

11970-44100

1
Out of stock

8

O RING (D:3.1,ID:26.4) This part replaces 09280-27002.

09280-26006

1
Out of stock

9

1

$3.63

In stock

10

GASKET

09168-14004

1
Out of stock

11

COVER, CONTACT BREAKER | ~E.NO.156609 This part replaces 11381-44100.

11381-44101

1
Out of stock

11

COVER, CONTACT BREAKER | E.NO.156610~

11381-44101

1
Out of stock

12

GASKET

11491-44100

1
Out of stock

13

SCREW This part replaces 02112-05168.

02112-05167

3
Out of stock

14

BOLT This part replaces 01544-05168.

01547-05167

3
Out of stock

15

EMBLEM

68233-44100

1
Out of stock

16

COVER, GENERATOR | ~E.NO.156609 This part replaces 11351-44100.

11351-44102

1
Out of stock

16

COVER, GENERATOR | E.NO.156610~ This part replaces 11351-44101.

11351-44102

1
Out of stock

17

GASKET, GENERATOR COVER This part replaces 11483-44100.

11483-44110

1
Out of stock

18

PIN This part replaces 09206-13001.

04211-13189

1
Out of stock

19

SCREW This part replaces 02112-06358.

02112-06357

10
Out of stock

20

BOLT This part replaces 01547-06358.

01547-06357

10
Out of stock

21

EMBLEM

68233-44100

1
Out of stock

22

COVER, ENGINE SPROCKET | ~E.NO.156609 This part replaces 11361-44100.

11361-44101

1
Out of stock

22

COVER, ENGINE SPROCKET | E.NO.156610~

11361-44101

1
Out of stock

23

GREASE NIPPLE

08351-11009

1
Out of stock

24

PIN

04211-09129

1
Out of stock

25

SCREW | MODEL TMODEL X This part replaces 02112-06658.

02112-06657

1
Out of stock

25

BOLT | MODEL X,Z This part replaces 01547-06658.

01547-06657

2
Out of stock

26

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

1
Out of stock

26

BOLT This part replaces 01547-06508.

01547-06507

1
Out of stock

27

SCREW (6X40) | MODEL TMODEL X This part replaces 02112-06408.

02112-06407

3
Out of stock

27

BOLT | MODEL X,Z This part replaces 01547-06408.

01547-06407

2
Out of stock

28

COVER, STARTER MOTOR This part replaces 11382-44100.

11382-44111

1
Out of stock

29

2

$1.55

In stock

30

BOLT This part replaces 01544-05088.

01547-05087

2
Out of stock

31

CAP, CLUTCH RELEASE

11387-44100

1
Out of stock

32

SCREW This part replaces 02132-05127.

02122-05127

2
Out of stock

33

SWITCH ASSY,OIL PRESSURE This part replaces 37820-44100.

37820-33D11

1
Out of stock
