1985 Suzuki GS450GA Transmission Diagram

← All diagrams

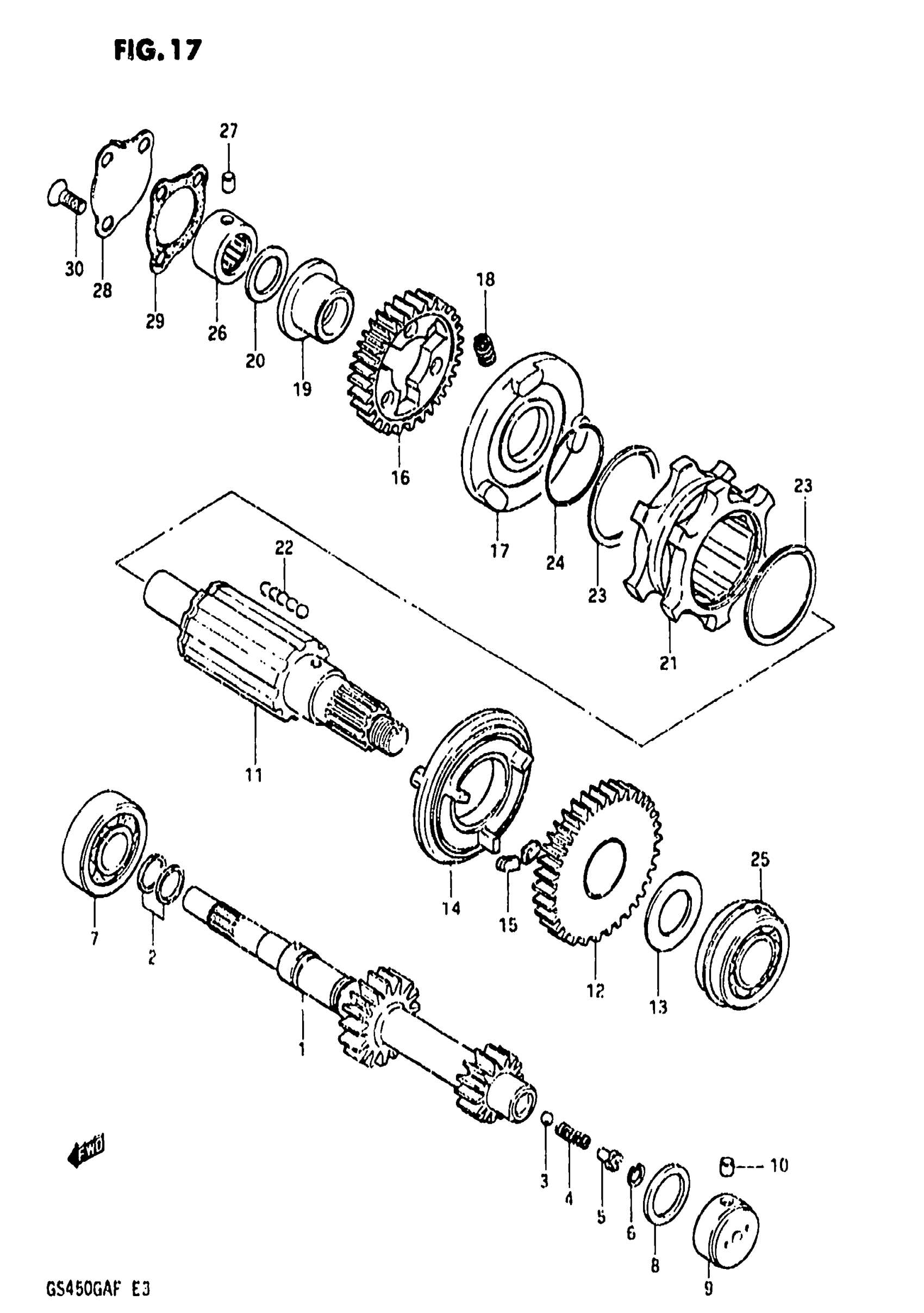

Find the part on the Transmission diagram for your 1985 Suzuki GS450GA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Suzuki GS450GA Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTER SHAFT

24120-44500

1
Out of stock

2

SEAL, MECHANICAL

24122-44500

2
Out of stock

3

BALL

06111-09004

1
Out of stock

4

SPRING

09440-06024

1
Out of stock

5

SEAT, OIL REGULATOR

24123-44500

1
Out of stock

6

CIRCLIP

08331-41106

—
Out of stock

7

BEARING (20X52X15) This part replaces 09262-20065.

09262-20145

1
Out of stock

8

WASHER

24124-44500

1
Out of stock

9

BEARING, LH (20X34X20) This part replaces 09263-20026.

09263-20025

1
Out of stock

10

PIN

04221-07129

1
Out of stock

11

SHAFT, DRIVE

24131-44500

1
Out of stock

12

GEAR, 1ST DRIVEN (NT:36)

24310-44500

1
Out of stock

13

WASHER

08211-25403

1
Out of stock

14

DOG PLATE, 1ST DRIVEN

24312-44500

1
Out of stock

15

DAMPER

24313-44500

6
Out of stock

16

GEAR, 2ND DRIVEN (NT:32)

24321-44500

1
Out of stock

17

DOG PLATE, 2ND DRIVEN

24322-44503

1
Out of stock

18

SPRING

09440-09016

3
Out of stock

19

DUSH

09301-20004

1
Out of stock

20

WASHER

24124-44500

1
Out of stock

21

SLIDING DOG

24331-44500

1
Out of stock

22

BALL

06111-07004

45
Out of stock

23

CIRCLIP

09381-52007

2
Out of stock

24

CIRCLIP

09380-40002

1
Out of stock

25

BEARING (25X52X20.6) This part replaces 09267-25006.

09267-25014

1
Out of stock

26

BEARING

09263-20038

1
Out of stock

27

PIN

04221-07129

1
Out of stock

28

HOLDER, BEARING

24741-44500

1
Out of stock

29

CASKET

24762-44500

1
Out of stock

30

SCREW This part replaces 02122-06168.

02122-06167

3
Out of stock
