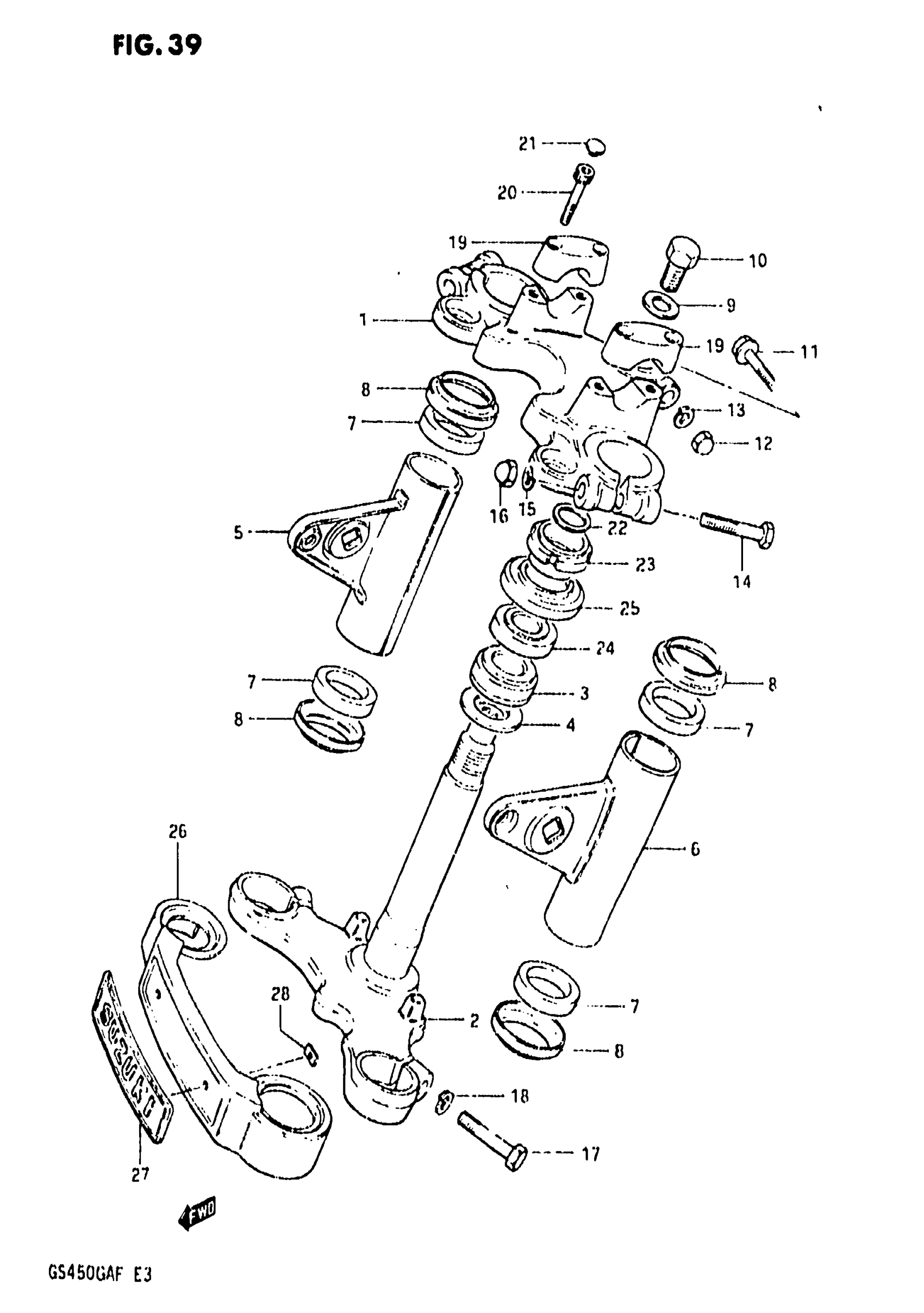

Suzuki GS450GA (1985) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM HEAD (BLACK)

51311-33200-291

Unavailable

2

STEERING STEM SET | Includes Item(s) 3 - 4

51400-33831

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$52.22

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$2.81

5

NO DESCRIPTION AVAILABLE This part replaces 51530-44900.

51500-44820

Unavailable

6

BRACKET,HEADLAMP LH

51540-44900

Unavailable

7

CUSHION,HEADLAMP BRACKET

51556-44100

Unavailable

8

CAP

51555-44900

Unavailable

9

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

$1.99

10

BOLT

09104-12013

$3.76

11

BOLT This part replaces 01517-08504.

01550-0850B

Unavailable

12

NUT This part replaces 08313-11085.

08313-1008B

$3.05

13

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.83

14

BOLT This part replaces 01517-10555.

01550-1055B

$5.17

15

LOCK WASHER This part replaces 08321-31105.

08321-0110A

$1.86

16

NUT

09145-10002

Unavailable

17

BOLT This part replaces 01107-10405.

01500-1040A

$4.18

18

LOCK WASHER This part replaces 08321-21105.

08321-0110A

$1.86

19

CLAMP,HANDLEBAR UPPER (BLACK)

56211-34300-291

Unavailable

20

BOLT, STEERING DAMPER This part replaces 07110-08305.

07130-0830A

$2.80

21

CAP

09250-06004

$1.45

22

WASHER

09160-18002

$2.58

23

NUT,STEERING STEM

51631-34200

Unavailable

24

BEARING,UPPER

09265-25008

$61.43

25

SEAL,DUST This part replaces 51643-40502.

51643-40503

$5.79

26

COVER,FRONT FORK

51871-44220

Unavailable

27

EMBLEM

68211-44210

Unavailable

28

NUT,COVER

09148-03002

$1.94
