1983 Suzuki GS450GA Torque Converter Diagram

← All diagrams

Find the part on the Torque Converter diagram for your 1983 Suzuki GS450GA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

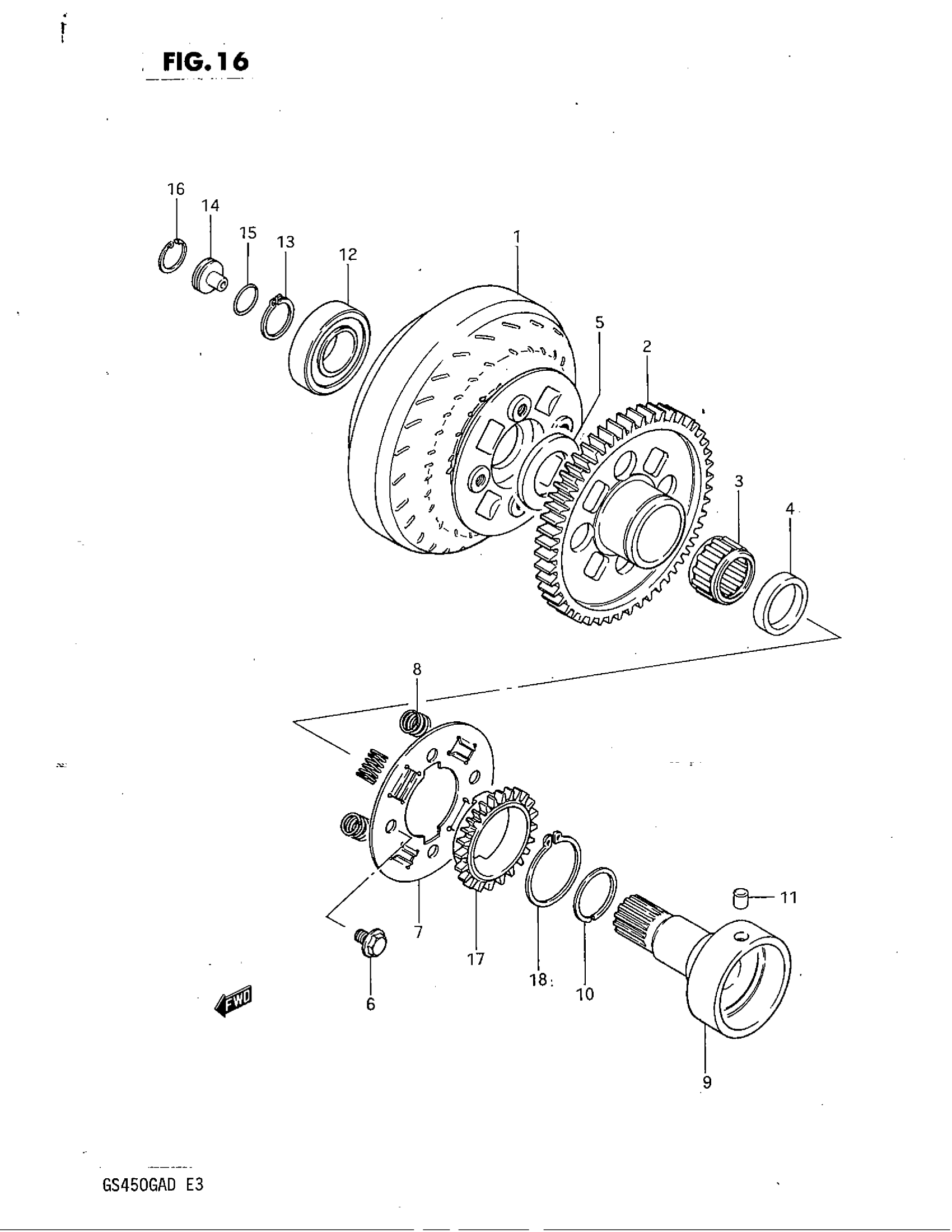

1983 Suzuki GS450GA Torque Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CONVERTER ASSY, TORQUE

21200-44500

1
Out of stock

2

GEAR, PRIMARY DRIVEN

21211-44500

1
Out of stock

3

BEARING

09263-26015

1
Out of stock

4

SPACER

09180-28004

1
Out of stock

5

SHIM

08221-30425

1
Out of stock

6

BOLT This part replaces 01517-06128.

01550-06127

4
Out of stock

7

PLATE

21241-44500

1
Out of stock

8

SPRING

09440-12026

4
Out of stock

9

SHAFT, STATOR

22110-44500

1
Out of stock

10

SEAL, MECHANICAL

21251-44500

1
Out of stock

11

PIN

04221-07129

1
Out of stock

12

BEARING

08173-62050

1
Out of stock

13

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-31258.

08331-31256

1
Out of stock

14

CHECK VALVE

21260-44500

1
Out of stock

15

O RING

09280-15004

1
Out of stock

16

CIRCLIP

08331-41189

1
Out of stock

17

GEAR, OIL PUMP DRIVE

16321-44500

1
Out of stock

18

CIRCLIP

08331-31429

1
Out of stock
