1983 Suzuki GS450GA Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1983 Suzuki GS450GA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

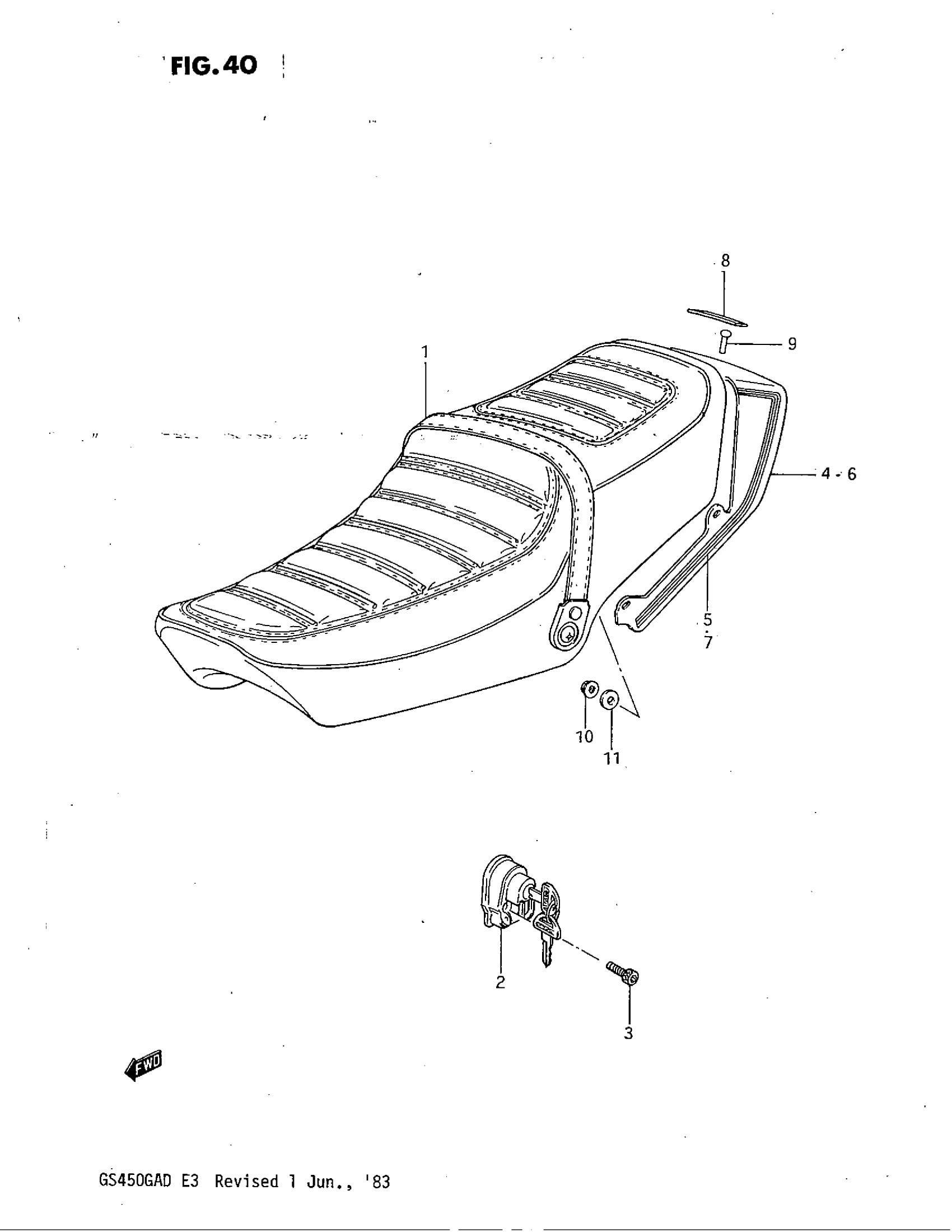

1983 Suzuki GS450GA Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY (BLACK)

45100-44500-48H

1
Out of stock

2

LOCK ASSY, HELMET

95700-34210

1
Out of stock

3

BOLT This part replaces 09106-05008.

07130-0525B

2
Out of stock

4

TAIL COVER, SEAT | Includes Item(s) 5

45510-44500-78R

1
Out of stock

5

TAPE SET

68160-44510-78U

1
Out of stock

6

TAIL COVER, SEAT | Includes Item(s) 7

45510-44500-86B

1
Out of stock

7

TAPE SET

68160-44510-86A

1
Out of stock

8

EMBLEM

68234-44500

1
Out of stock

9

RIVET This part replaces 09229-04016.

09229-04017

2
Out of stock

10

NUT This part replaces 08316-16068.

08319-31067

4
Out of stock

11

.WASHER (6.5X16X1) This part replaces 09160-06003.

09160-06129

4
Out of stock
