1983 Suzuki GS450GA Filter - Oil Pump Diagram

← All diagrams

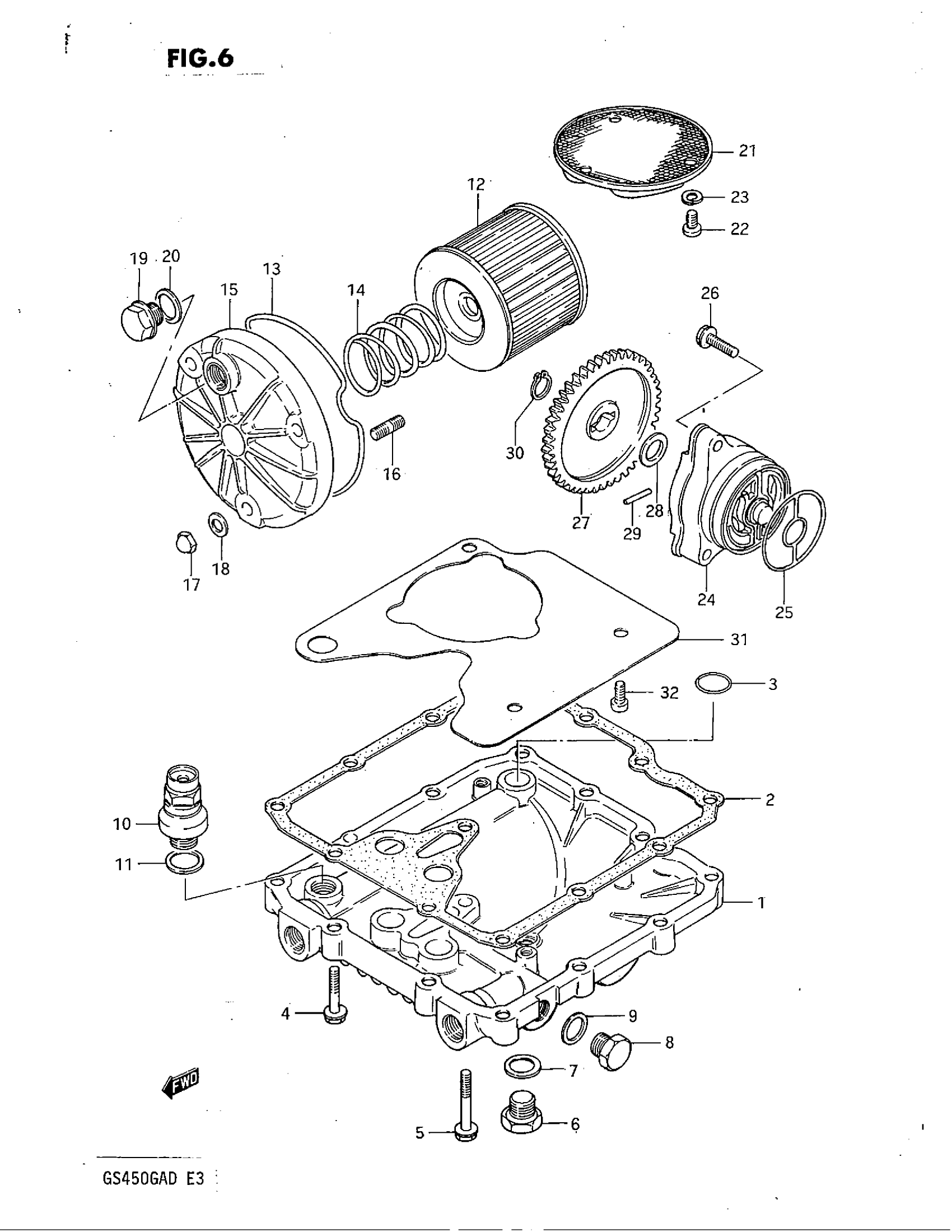

Find the part on the Filter - Oil Pump diagram for your 1983 Suzuki GS450GA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS450GA Filter - Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PAN, OIL

11511-44500

1
Out of stock

2

GASKET

11489-44500

1
Out of stock

3

O RING

09280-13001

1
Out of stock

4

BOLT This part replaces 01517-06308.

01550-06307

12
Out of stock

5

BOLT This part replaces 01517-06358.

01550-06357

1
Out of stock

6

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

1
Out of stock

7

GASKET

09168-14004

1
Out of stock

8

PLUG, OIL GALLERY

09247-12103

1
Out of stock

9

GASKET

09168-12002

1
Out of stock

10

REGULATOR, OIL

16440-44500

1
Out of stock

11

WASHER

08212-14181

1
Out of stock

12

FILTER, ENGINE OIL

16510-45040

1
Out of stock

13

O RING

16518-45000

1
Out of stock

14

SPRING

09440-32004

1
Out of stock

15

NO DESCRIPTION AVAILABLE This part replaces 16512-44500.

16512-33311

1
Out of stock

15

CAP, ENGINE OIL FILTER | NIL.PLUG HOLE This part replaces 16512-44400.

16512-45D00

1
Out of stock

16

STUD BOLT This part replaces 01421-06208.

01421-0620A

3
Out of stock

17

NUT, LICENSE HOLDER This part replaces 08313-11068.

08313-10067

3
Out of stock

18

WASHER This part replaces 08322-21068.

08322-01067

3
Out of stock

19

PLUG (MAGNETO) | FOR 16512-44500 This part replaces 09247-14001.

09247-14002

1
Out of stock

20

GASKET | FOR 16512-44500

09168-14004

1
Out of stock

21

STRAINER, OIL This part replaces 16520-09300.

16520-09301

1
Out of stock

22

SCREW This part replaces 02112-06128.

02112-06127

3
Out of stock

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

3
Out of stock

24

PUMP, ENGINE OIL

16400-44500

1
Out of stock

25

O RING This part replaces 16491-49200.

16491-31300

1
Out of stock

26

SCREW

09103-06045

3
Out of stock

27

GEAR, DRIVEN (NT:29)

16331-44500

1
Out of stock

28

WASHER

08221-10185

1
Out of stock

29

PIN

09261-04009

1
Out of stock

30

CIRCLIP

08331-31109

1
Out of stock

31

PLATE, OIL PAN

11523-44500

1
Out of stock

32

SCREW This part replaces 02112-06128.

02112-06127

3
Out of stock
