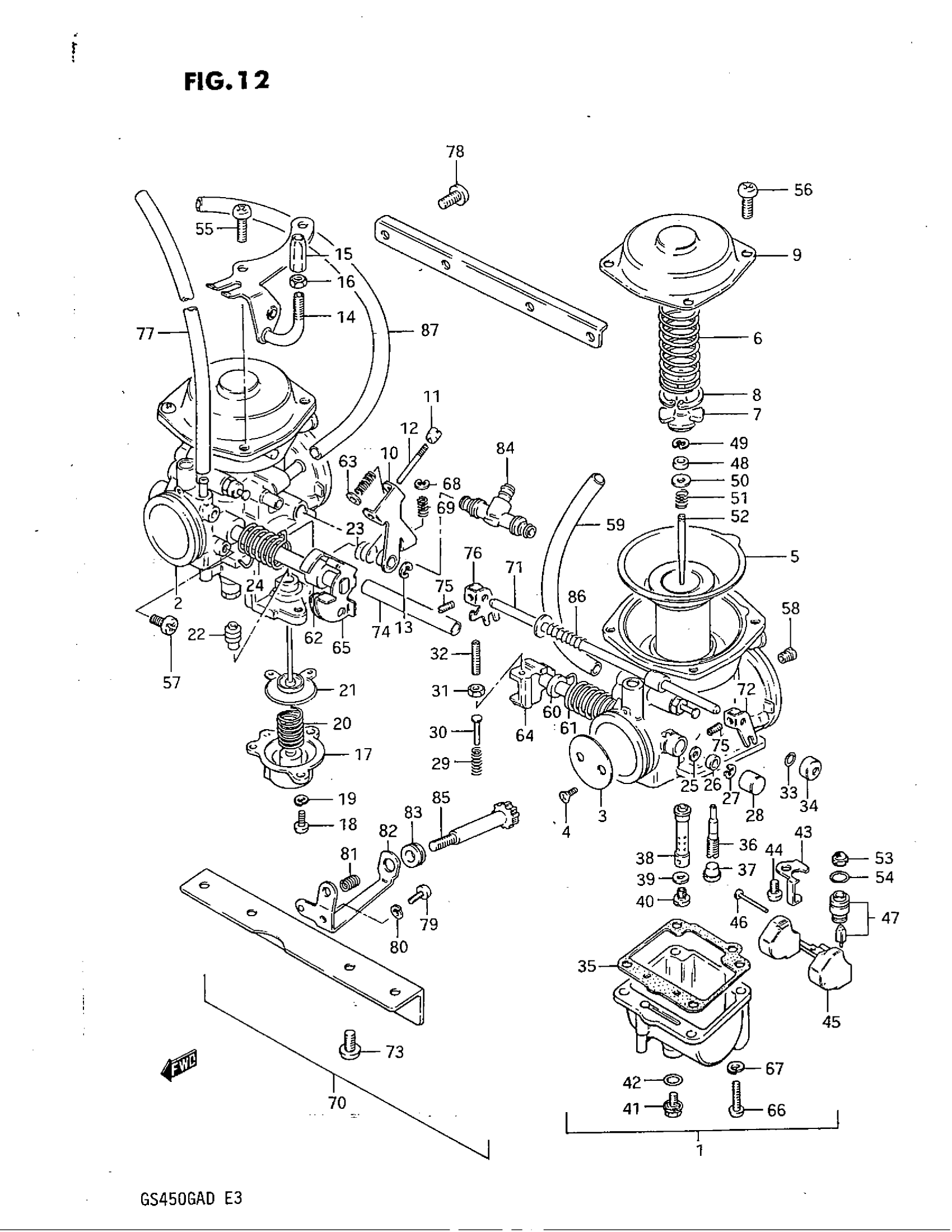

Suzuki GS450GA (1983) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, RH

13201-44500

Unavailable

2

CARBURETOR ASSY, LH | Includes Item(s) 3 - 69

13202-44500

Unavailable

3

THROTTLE VALVE (95)

13551-44500

Unavailable

4

SCREW

13604-44080

$2.80

5

DIAPHRAGM This part replaces 13500-44500.

13500-49250

Unavailable

6

SPRING

13503-47070

Unavailable

7

HOLDER, GUIDE

13389-44030

Unavailable

8

CLIP

13581-44030

Unavailable

9

COVER

13502-38300

Unavailable

10

LEVER ASSY, ACCELERATING | RH

13490-44500

Unavailable

11

NUT | RH

13497-44500

Unavailable

12

PIN | RH

13498-44500

Unavailable

13

E RING | RH

13617-44500

Unavailable

14

BRACKET | RH This part replaces 13621-44500.

13627-44460

Unavailable

15

ADJUSTER, CABLE | RH

13577-98010

Unavailable

16

NUT | RH

13661-03010

$6.22

17

COVER, ACCELERATING | RH

13488-44500

Unavailable

18

SCREW | RH This part replaces 02112-04108.

02112-04107

$1.55

19

LOCK WASHER | RH This part replaces 08321-21048.

08321-0104A

$1.86

20

SPRING | RH

13494-44500

Unavailable

21

DIAPHRAGM ASSY, ACCELERATING | RH

13491-44500

Unavailable

22

BOOT | RH

13499-44500

$14.18

23

SPRING | RH

13573-44500

Unavailable

24

SPRING | RH

13573-44210

Unavailable

25

SEAL This part replaces 13651-51010.

13651-51011

$2.36

26

GASKET

13557-47070

$3.38

27

E RING

13617-44080

$2.80

28

CAP

13578-47070

$4.26

29

SPRING | LH

13268-44110

Unavailable

30

PIN | LH

13563-44110

Unavailable

31

NUT | LH

13607-47070

$3.55

32

SCREW | LH

13605-47080

$8.77

33

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.89

34

.CAP, STARTER VALVE

13682-31210

$4.00

35

GASKET, FLOAT CAMBER

13251-44500

Unavailable

36

.JET, PILOT (#42.5)

09492-42010

$8.42

37

PLUG

13357-44080

$3.97

38

JET, NEEDLE (O-8)

09494-00377

Unavailable

39

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

40

JET, MAIN (120)

09491-24016

$12.38

41

SCREW, DRAIN

13247-44080

$7.51

42

O RING

13246-44080

$2.80

43

PLATE

13373-11400

$6.63

44

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

45

FLOAT ASSY

13250-44080

$26.83

46

PIN

13254-92311

$2.31

47

NEEDLE VALVE ASSY

13370-44500

$46.66

48

RING

13387-47010

$6.80

49

E RING

13394-10010

$6.15

50

GASKET

13382-47010

$3.35

51

SPRING

13388-47010

$9.17

52

NEEDLE JET (5CD55)

13383-44500

Unavailable

53

FILTER This part replaces 13376-65010.

13376-19F00

$9.41

54

O RING This part replaces 13374-44080.

13374-35C00

$5.48

55

SCREW | RH This part replaces 02112-05108.

02112-05107

$1.43

56

SCREW | RH:2,LH:4 This part replaces 02112-05088.

02112-05087

$1.45

57

SCREW | RH This part replaces 13605-45410.

13605-73000

$13.50

58

JET, PILOT AIR (135)

09493-27001

$18.33

59

HOSE,5X10X600 | LH This part replaces 13687-44500.

44421-13ER0

$9.08

60

RING | LH

13387-44200

Unavailable

61

SPRING | LH

13573-44200

Unavailable

62

RING | RH

13387-44210

Unavailable

63

WASHER | RH

13496-44500

Unavailable

64

SHAFT ASSY | LH

13550-44210

Unavailable

65

SHAFT ASSY | RH

13550-44500

Unavailable

66

SCREW This part replaces 02112-05168.

02112-05167

$1.97

67

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

68

CLIP, NEEDLE | RH This part replaces 13394-01010.

13394-10010

$6.15

69

SPRING | RH

13268-44012

Unavailable

70

FLANGE ASSY | Includes Item(s) 71 - 87

13210-44500

Unavailable

71

SHAFT, STARTER

13410-44500

Unavailable

72

LEVER

13422-44080

Unavailable

73

SCREW This part replaces 02112-06128.

02112-06127

$1.83

74

HOSE (7x3x80)

13683-44500

Unavailable

75

SCREW

13605-47070

Unavailable

76

LEVER

13422-44500

Unavailable

77

HOSE(4.5X8.5X60 This part replaces 13687-18656.

09355-45001-600

$8.55

78

SCREW This part replaces 02112-05128.

02112-05127

$1.97

79

SCREW This part replaces 02112-05088.

02112-05087

$1.45

80

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

81

SPRING This part replaces 13271-44220.

13268-37420

$6.00

82

BRACKET This part replaces 13621-44210.

13627-44120

Unavailable

83

BUSH

13681-16600

$3.55

84

NIPPLE

13685-11400

Unavailable

85

ADJUSTER

13267-47070

Unavailable

86

SPRING

13437-44500

Unavailable

87

HOSE,5X10X600 This part replaces 13687-44230.

44421-13ER0

$9.08
