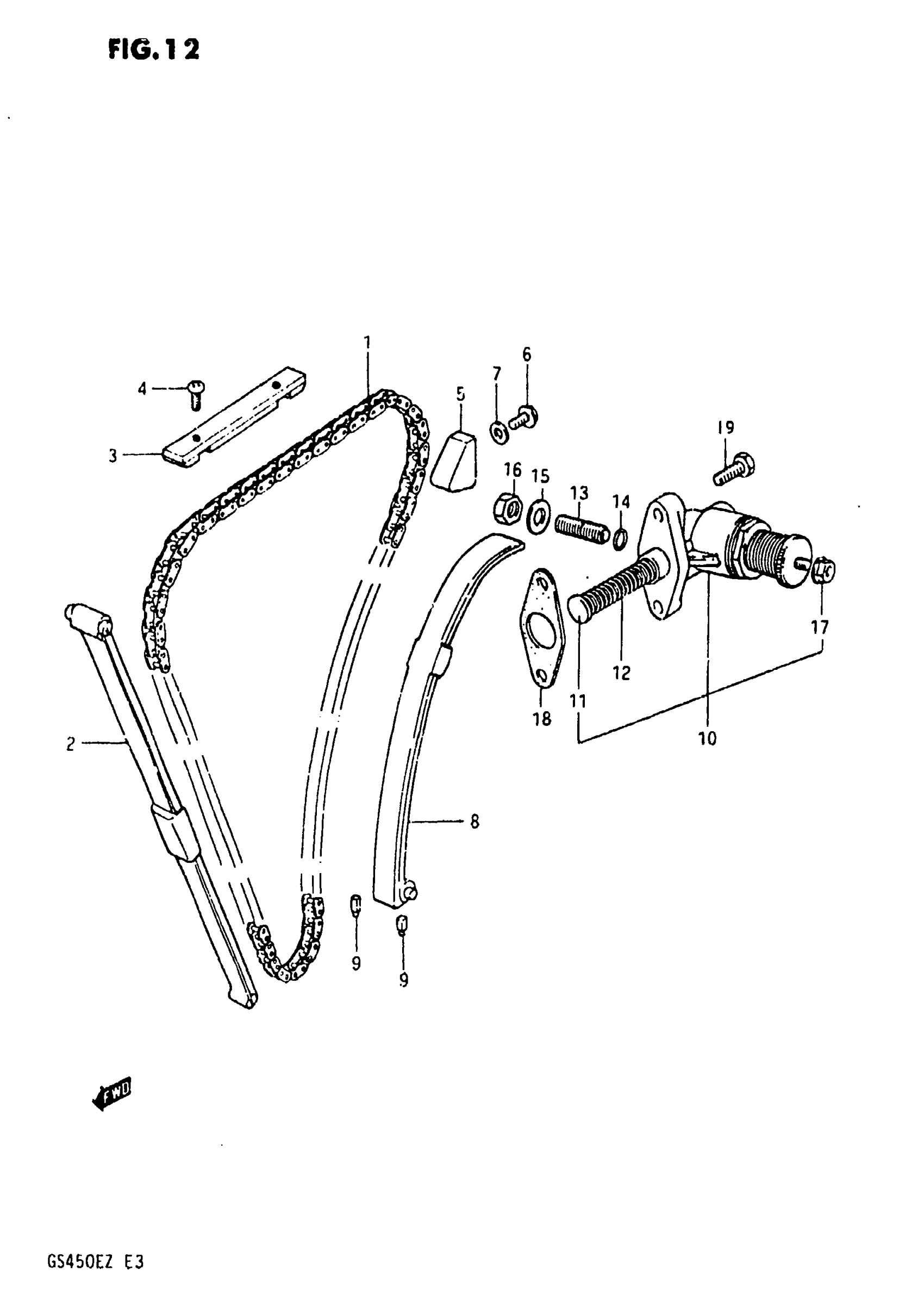

Suzuki GS450ET (1982) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE (120L)

12760-45040

$166.47

2

GUIDE,CAM CHAIN This part replaces 12771-45052.

12771-45053

$45.15

3

GUIDE, CAM CHAIN NO.2

12782-47040

Unavailable

4

SCREW This part replaces 02112-05128.

02112-05127

$1.97

5

GUIDE, CAM CHAIN NO.3

12791-45040

$16.03

6

BOLT This part replaces 01517-06128.

01550-06127

$2.31

7

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.01

8

TENSIONER, CAM CHAIN

12810-44150

Unavailable

9

CUSHION | MODEL T,X This part replaces 12814-44100.

12814-44101

$7.45

9

CUSHION | MODEL Z

12814-44101

$7.45

10

ADJUSTER ASSY,T | Includes Item(s) 11 - 17 This part replaces 12830-47001.

12830-0930V

Unavailable

11

PUSH ROD

12833-47001

Unavailable

12

SPRING

09440-12017

$2.67

13

SCREW

12838-45001

$9.50

14

.O RING (D:1.9,ID:5.7) This part replaces 09280-06003.

09280-06005

$1.45

15

WASHER This part replaces 08322-11088.

08322-01087

$1.86

16

NUT This part replaces 08310-12088.

08310-00087

$1.83

17

NUT | MODEL T,X This part replaces 09159-06017.

08319-31067

$2.01

17

NUT | MODEL Z This part replaces 08316-16068.

08319-31067

$2.01

18

GKT,TENSIONER A This part replaces 12837-47000.

12837-47010

$3.97

19

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.53
