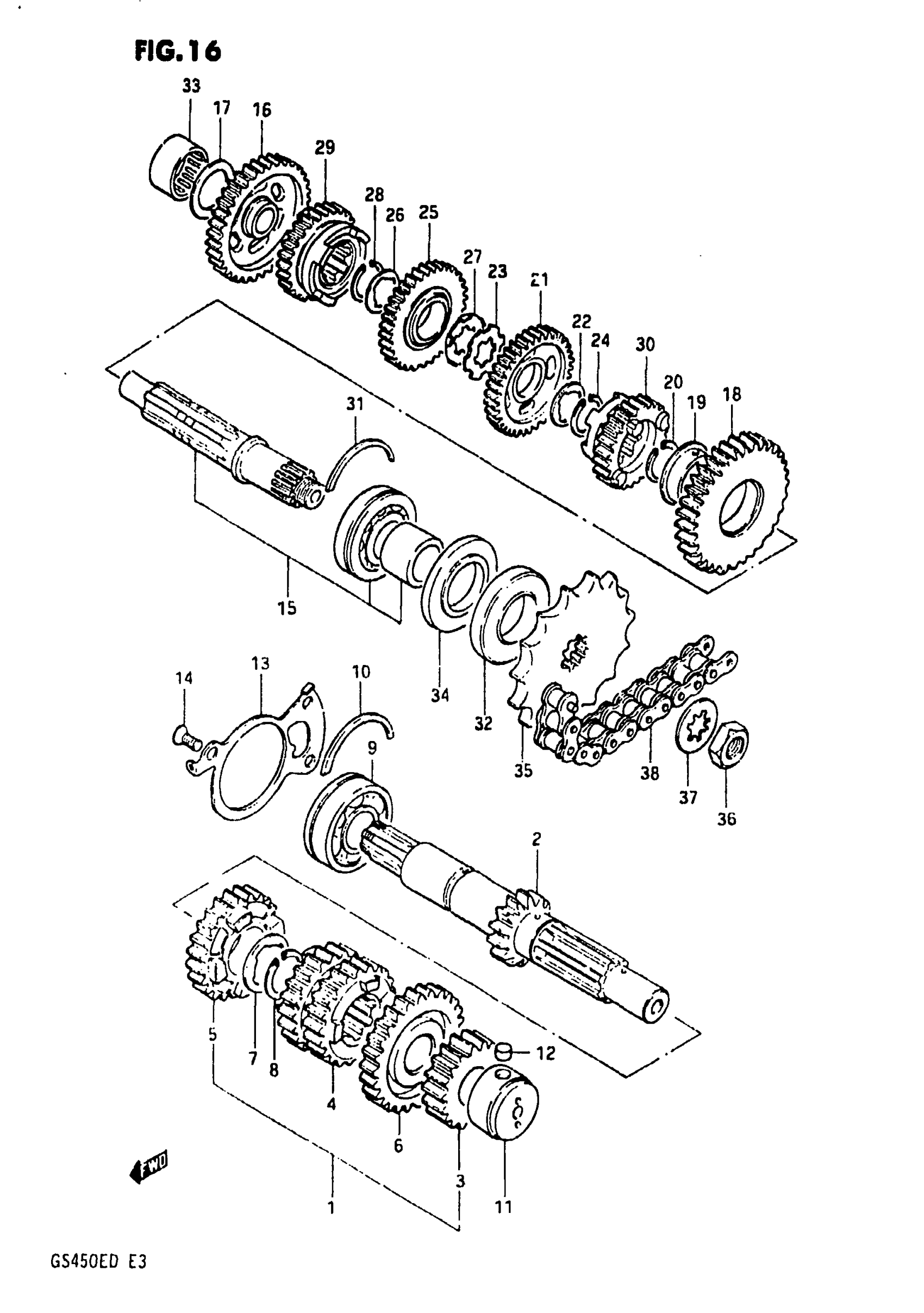

Suzuki GS450E (1983) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 8

24120-44100

Unavailable

2

COUNTERSHAFT (NT:13)

24121-44100

Unavailable

3

GEAR, 2ND DRIVE (NT:18)

24221-44001

Unavailable

4

GEAR, 3/4 DRIVE (NT:21/24)

24231-44001

Unavailable

5

GEAR, 5TH DRIVE (NT:26)

24250-44001

Unavailable

6

GEAR, 6TH DRIVE (NT:27)

24260-44000

Unavailable

7

WASHER, 5TH DRIVE This part replaces 08211-25341.

09181-25167

$2.85

8

CIRCLIP

09380-25010

$2.80

9

BEARING, LH This part replaces 09262-25051.

09262-25105

$53.00

10

C RING This part replaces 09390-62006.

09390-62012

$6.69

11

BEARING, LH (20X34X20) This part replaces 09263-20026.

09263-20025

Unavailable

12

PIN

04221-07129

$1.88

13

HOLDER, BEARING This part replaces 24741-44100.

24741-44102

Unavailable

14

SCREW This part replaces 02122-06168.

02122-06167

$1.45

15

DRIVESHAFT This part replaces 24100-44810.

24100-44811

Unavailable

16

GEAR, 1ST DRIVEN (NT:32) This part replaces 24310-44000.

24310-44001

Unavailable

17

WASHER

08211-20341

$3.05

18

GEAR, 2ND DRIVEN (NT:32) This part replaces 24321-44004.

24321-20F01

$140.85

19

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

$26.85

20

CIRCLIP

09380-25010

$2.80

21

GEAR, 3RD DRIVEN (NT:29) This part replaces 24331-44002.

24331-44003

Unavailable

22

WASHER LOCK (25.1X31X1.0)

09167-25012

$4.02

23

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.58

24

CIRCLIP

09380-25010

$2.80

25

GEAR, 4TH DRIVEN (NT:27) This part replaces 24341-44002.

24341-44003

Unavailable

26

WASHER LOCK (25.1X31X1.0)

09167-25012

$4.02

27

LOCK WASHER

09169-25001

$2.95

28

CIRCLIP

09380-25010

$2.80

29

GEAR, 5TH DRIVEN (NT:25) This part replaces 24351-44001.

24351-20F02

Unavailable

30

GEAR, 6TH DRIVEN (NT:23) This part replaces 24361-44002.

24361-44010

Unavailable

31

C RING This part replaces 09390-62006.

09390-62012

$6.69

32

OIL SEAL

09283-32015

$14.40

33

BEARING, RH (20X34X17) This part replaces 09263-20028.

09263-20027

Unavailable

34

OIL SEAL

09282-32002

$10.67

35

SPROCKET, ENGINE (NT:16)

27511-44000

Unavailable

36

NUT

09140-20009

Unavailable

37

WASHER (25.3X41.6X1) This part replaces 09167-25011.

09167-25019

$2.17

38

CHAIN,DRIVE This part replaces 27600-44430.

27600-44X01

Unavailable
