1983 Suzuki GS450E Rear Wheel Diagram

← All diagrams

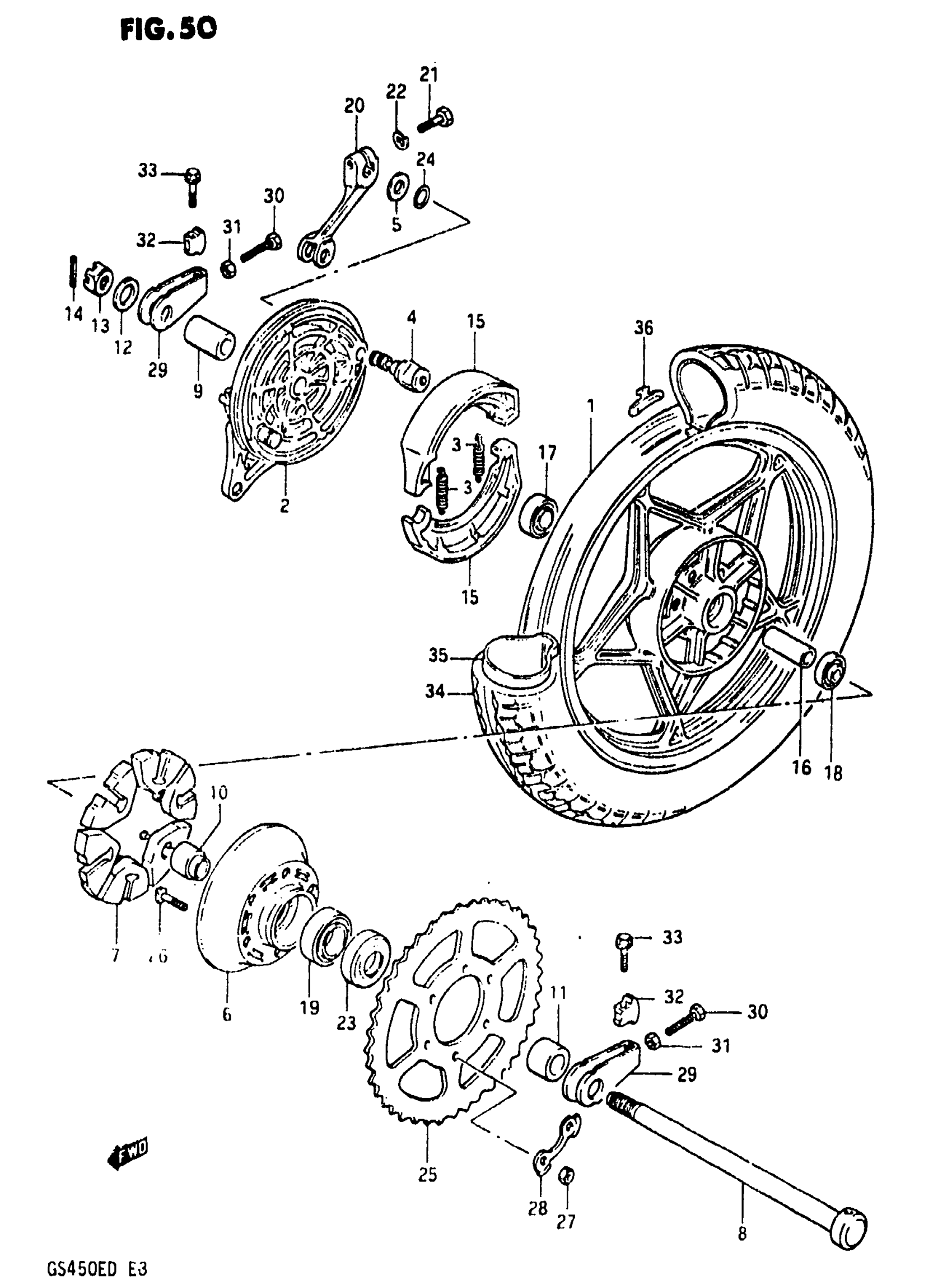

Find the part on the Rear Wheel diagram for your 1983 Suzuki GS450E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS450E Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (18x1.85)

64150-44000-291

1
Out of stock

2

PANEL

64210-44060

1
Out of stock

3

SPRING

55420-30000

2
Out of stock

4

CAM, REAR BRAKE This part replaces 54440-08003.

54440-08004

1
Out of stock

5

WASHER This part replaces 09160-15001.

09160-15048

1
Out of stock

6

DRUM, SPROCKET

64611-44001

1
Out of stock

7

SHOCK ABSORBER, REAR DRUM

64651-11300

6
Out of stock

8

AXLE, REAR

64711-44400

1
Out of stock

9

SPACER, RH

09180-17043

1
Out of stock

10

SPACER,RR HUB B This part replaces 64733-33000.

64733-3300V

1
Out of stock

11

SPACER, LH

09180-17042

1
Out of stock

12

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

1
Out of stock

13

NUT

09141-16001

1
Out of stock

14

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

15

SHOE SET, BRAKE This part replaces 64410-11301.

64400-11860

2
Out of stock

16

SPACER,17.6X24X This part replaces 09180-17056.

09180-17056-XC0

1
Out of stock

17

BEARING, RH

08143-63037

1
Out of stock

18

BEARING, LH

08143-62037

1
Out of stock

19

BEARING

08113-62057

1
Out of stock

20

LEVER, BRAKE CAM

64451-44400

1
Out of stock

21

BOLT This part replaces 01107-06258.

01500-06257

1
Out of stock

22

1

$2.28

In stock

23

SEAL,OIL(30.5X5 This part replaces 09285-30001.

09285-30003

1
Out of stock

24

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

1
Out of stock

25

SPROCKET, REAR (NT:45)

64511-44000

1
Out of stock

26

BOLT This part replaces 09119-10002.

09105-10001

6
Out of stock

27

NUT This part replaces 09140-10026.

09140-10026-XC0

6
Out of stock

28

LOCK WASHER

09169-10006

3
Out of stock

29

ADJUSTER, CHAIN

61410-47200

2
Out of stock

30

BOLT (8X50) This part replaces 09104-08018.

09104-08034

2
Out of stock

31

2

$1.93

In stock

32

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

2
Out of stock

33

BOLT, LH This part replaces 01517-08508.

01550-08507

2
Out of stock

34

TIRE, REAR (3.505 18) IRC

65100-44111

1
Out of stock

34

TIRE, REAR (3.50S-18) This part replaces 65100-44130.

65100-44111

1
Out of stock

35

TUBE ASSY, WHEEL INNER This part replaces 65200-18010.

65200-44AA0

1
Out of stock

35

TUBE ASSY, WHEEL INNER This part replaces 65200-33030.

65200-44AA0

1
Out of stock

36

BALANCER, NO.1 (20G)

55411-47001

1
Out of stock

36

BALANCER, NO.2 (30G)

55412-47001

1
Out of stock

36

BALANCER, NO.3 (10G)

55413-47001

1
Out of stock
