1983 Suzuki GS450E Rear Brake Diagram

← All diagrams

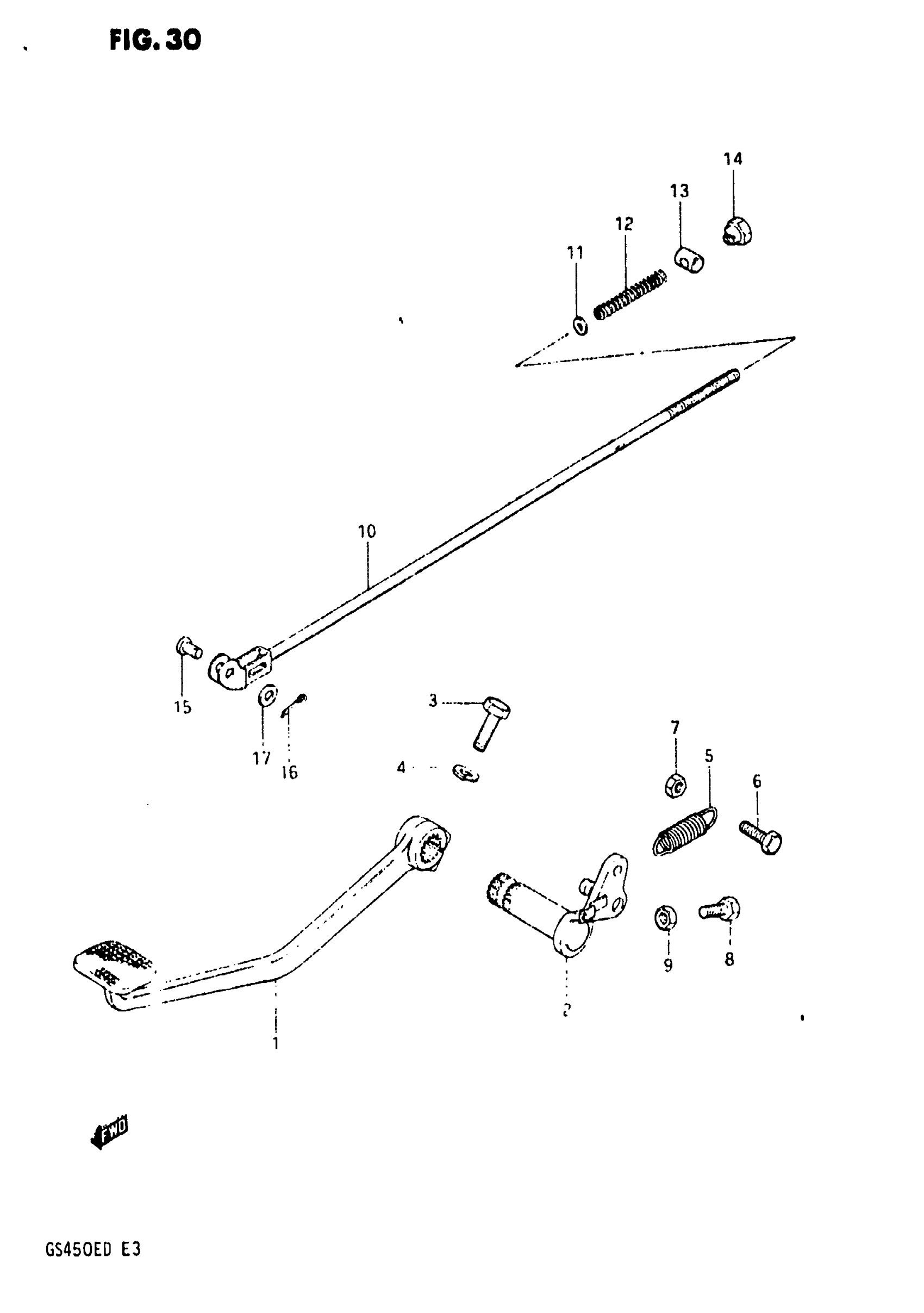

Find the part on the Rear Brake diagram for your 1983 Suzuki GS450E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS450E Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-44401

1
Out of stock

2

ARM, BRAKE PEDAL ROD This part replaces 43120-11500.

43120-11501

1
Out of stock

3

1

$2.73

In stock

4

1

$2.28

In stock

5

1

$2.92

In stock

6

1

$2.10

In stock

7

1

$1.82

In stock

8

1

$2.48

In stock

9

1

$1.82

In stock

10

ROD ASSY, REAR BRAKE | Includes Item(s) 11 - 17

43300-44401

1
Out of stock

11

1

$1.84

In stock

12

SPRING

09440-09004

1
Out of stock

13

.PIN (13X18) This part replaces 09209-13003.

09209-13018

1
Out of stock

14

.NUT This part replaces 09150-06001.

09150-06010

1
Out of stock

15

PIN

09200-06013

1

$2.38

In stock

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

17

1

$1.84

In stock
