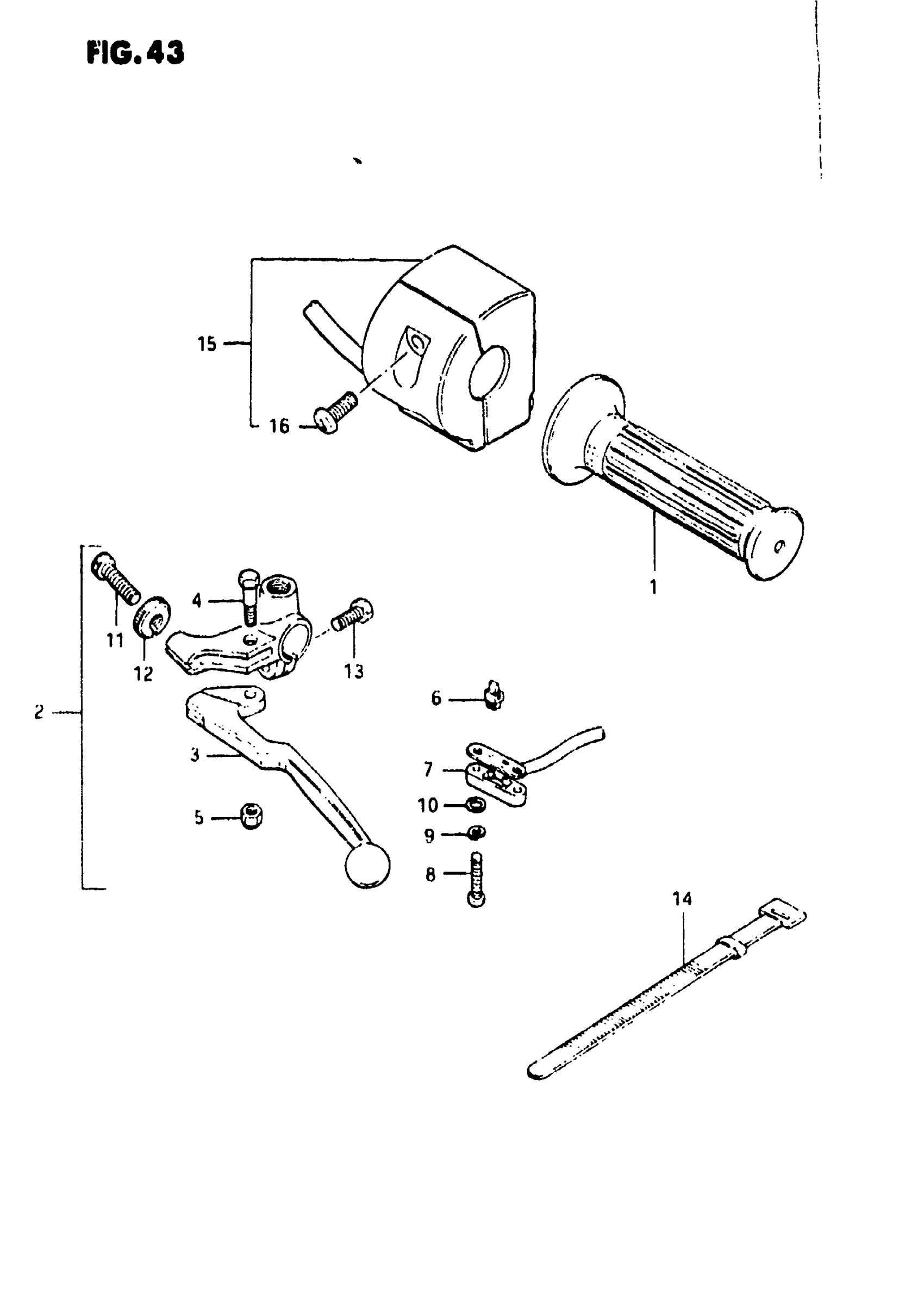

Suzuki GS450E (1983) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP This part replaces 57211-45030.

57211-24201

Unavailable

2

LEVER ASSY, CLUTCH | Includes Item(s) 3 - 13 This part replaces 57500-49130.

57500-49131

Unavailable

3

LEVER, CLUTCH

57620-49111

$21.26

4

BOLT This part replaces 57431-11011.

57431-11013

$5.95

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

6

HOLDER

57465-18601

$3.97

7

COVER

57481-33010

$5.50

8

SCREW

57484-49110

$2.25

9

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.18

10

WASHER This part replaces 08322-21038.

08322-01037

$1.95

11

ADJUSTER, CABLE

57441-44400

$5.91

12

NUT This part replaces 57442-44400.

57442-11010

$2.80

13

BOLT

57451-49100

Unavailable

14

BAND (L:120)

09407-12402

$2.80

15

SWITCH ASSY, HANDLE LH | Includes Item(s) 16 This part replaces 37400-44111.

37400-44122

Unavailable

16

SCREW This part replaces 02112-05168.

02112-05167

$1.97
