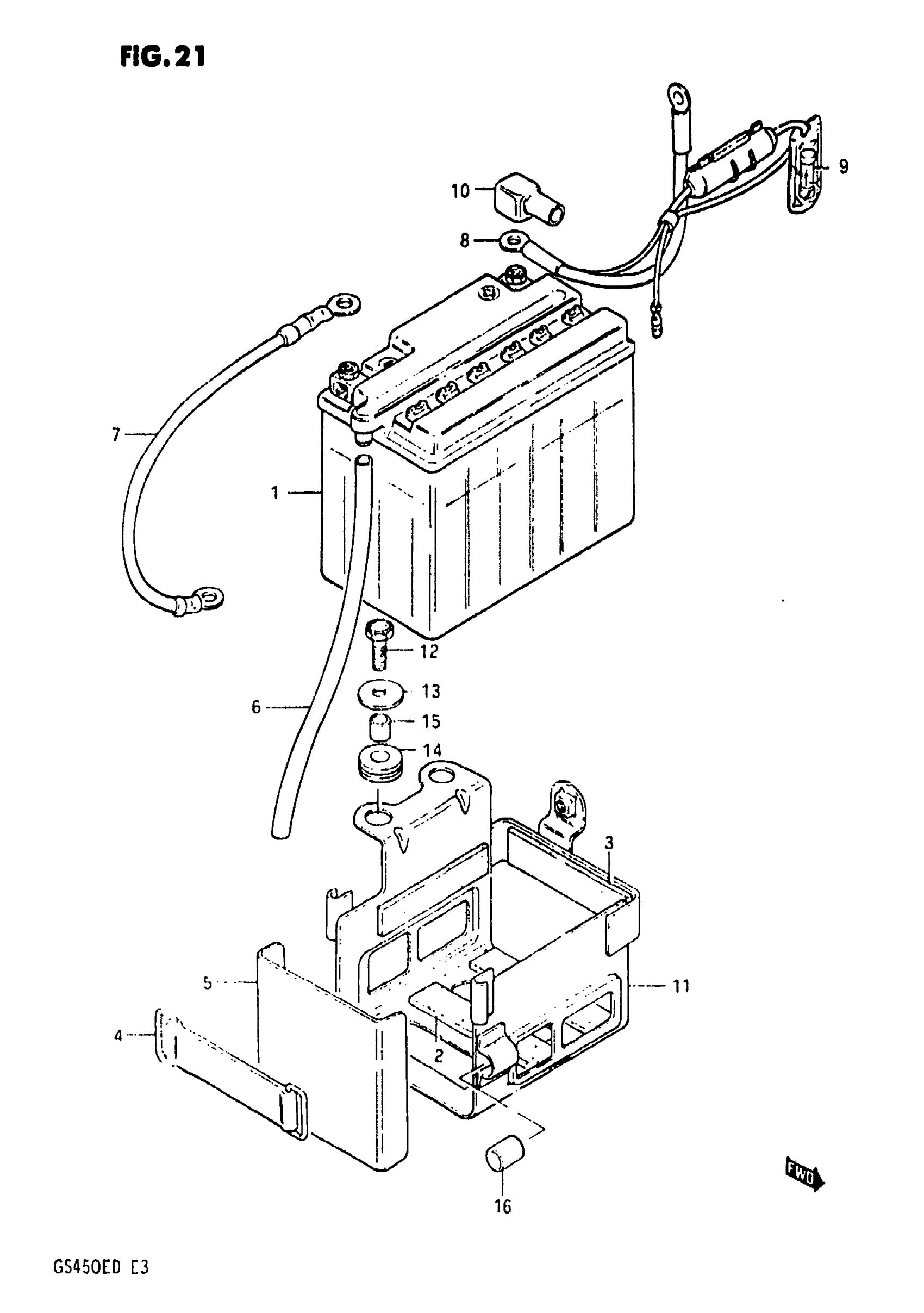

Suzuki GS450E (1983) BATTERY Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 33610-11600.

33610-11010

Unavailable

2

CUSHION

33652-49000

$4.05

3

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.09

4

BAND

09462-00008

$4.36

5

COVER, BATTERY

33661-44101

Unavailable

6

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

$7.65

7

LEAD WIRE, (-)

33850-03201

$13.20

8

LEAD WIRE, (+) | Includes Item(s) 9

36740-11500

Unavailable

9

FUSE (15A)

09481-15001

$2.07

10

CAP, TERMINAL

33624-45000

$4.31

11

HOLDER, BATTERY

41540-11500

Unavailable

12

BOLT This part replaces 01107-06208.

01500-06207

$1.99

13

WASHER This part replaces 09160-06007.

09160-06084

$1.77

14

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.07

15

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$1.68

16

CUSHION

09329-05006

$2.58
