1979 Suzuki GS425L Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1979 Suzuki GS425L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

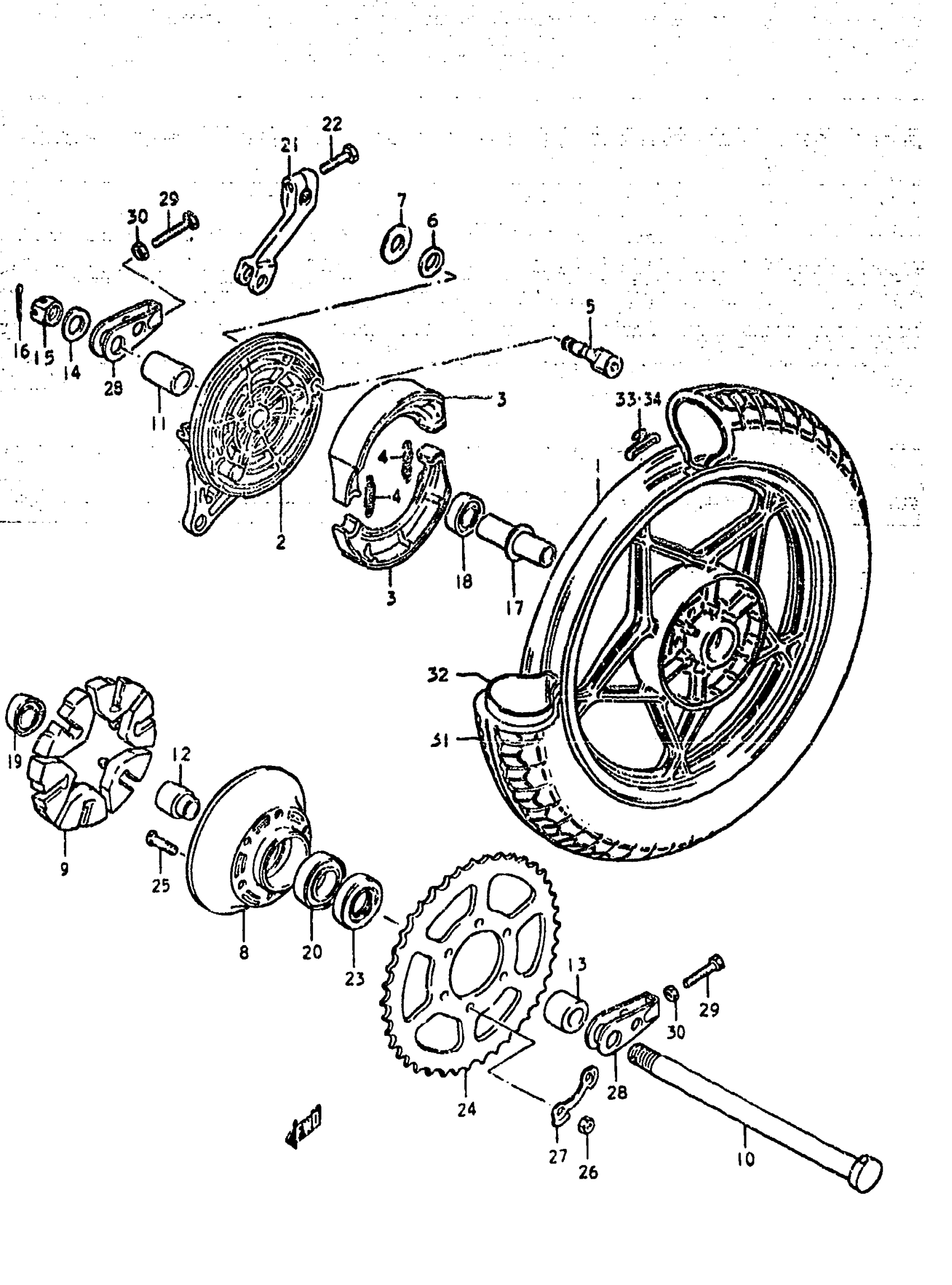

1979 Suzuki GS425L Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (18x1.85) This part replaces 64150-44000.

64150-44000-12U

1
Out of stock

2

PANEL

64210-44060

1
Out of stock

3

SHOE SET, BRAKE This part replaces 64410-11300.

64400-11860

2
Out of stock

4

SPRING

55420-30000

2
Out of stock

5

CAM, REAR BRAKE This part replaces 54440-08003.

54440-08004

1
Out of stock

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

1
Out of stock

7

WASHER This part replaces 09160-15001.

09160-15048

1
Out of stock

8

DRUM, SPROCKET This part replaces 64611-44000.

64611-44001

1
Out of stock

9

SHOCK ABSORBER, REAR DRUM

64651-11300

6
Out of stock

10

AXLE,REAR This part replaces 64711-33000.

64711-3300V

1
Out of stock

11

SPACER, RH

09180-17043

1
Out of stock

12

SPACER,RR HUB B This part replaces 64733-33000.

64733-3300V

1
Out of stock

13

SPACER, LH

09180-17042

1
Out of stock

14

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

1
Out of stock

15

NUT

09141-16001

1
Out of stock

16

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

17

SPACER,17.6X24X This part replaces 09180-19001.

09180-17056-XC0

1
Out of stock

18

BEARING

08143-63037

1
Out of stock

19

BEARING

08143-62037

1
Out of stock

20

BEARING, LH This part replaces 08113-62050.

09262-25003

1
Out of stock

21

LEVER, BRAKE CAM This part replaces 64451-44000.

64451-44001

1
Out of stock

22

BOLT This part replaces 01107-06258.

01500-06257

1
Out of stock

23

SEAL,OIL(30.5X5 This part replaces 09283-30001.

09285-30003

1
Out of stock

24

SPROCKET, REAR | NT:45

64511-44000

1
Out of stock

25

BOLT This part replaces 09119-10002.

09105-10001

6
Out of stock

26

NUT This part replaces 08310-12108.

08310-00107

6
Out of stock

27

LOCK WASHER

09169-10006

3
Out of stock

28

ADJUSTER, CHAIN

61410-44200

2
Out of stock

29

BOLT (8X50) This part replaces 09104-08018.

09104-08034

2
Out of stock

30

2

$1.93

In stock

31

NO DESCRIPTION AVAILABLE This part replaces 65100-44220.

65100-44250

1
Out of stock

32

TUBE ASSY, WHEEL INNER This part replaces 65200-44220.

65200-42AA1

1
Out of stock

33

BALANCER AR | 3)

55411-47001

1
Out of stock

34

BALANCER AR | 3)

55412-47001

1
Out of stock
