1979 Suzuki GS425E Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1979 Suzuki GS425E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

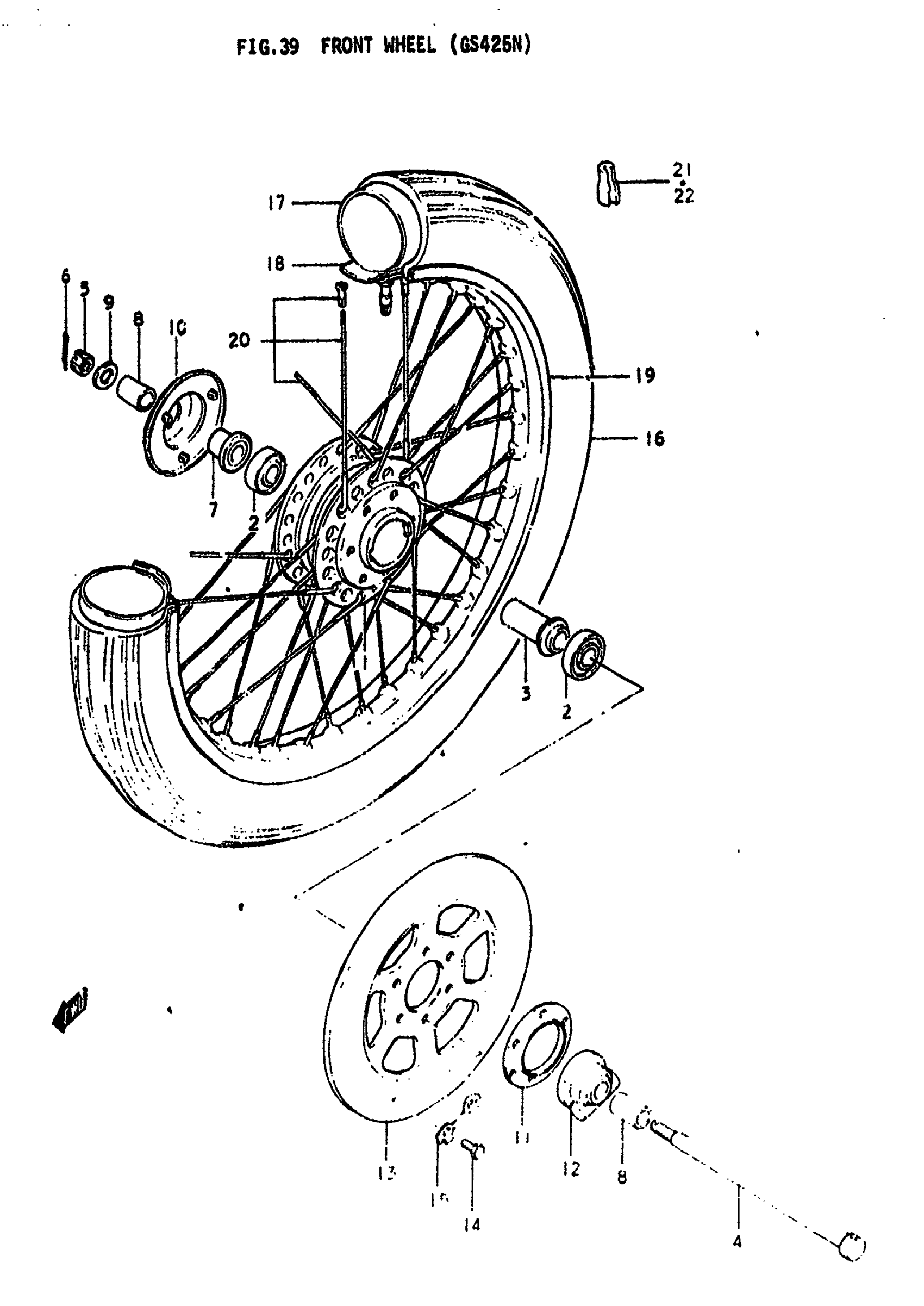

1979 Suzuki GS425E Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 54111-47001.

54111-47002

1
Out of stock

2

2

$22.03

In stock

3

SPACER

54730-18400

1

$23.08

In stock

4

AXLE,FRONT This part replaces 54711-33002.

54711-3300V

1
Out of stock

5

1

$2.60

In stock

6

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

7

SPACER, BEARING

54740-18402

1
Out of stock

8

SPACER, AXLE | 15x22x30

09180-15034

2
Out of stock

9

WASHER This part replaces 08322-21128.

08322-01127

1
Out of stock

10

COVER, RH

54871-45000

1
Out of stock

11

DUST SEAL, GEAR BOX

54871-45010

1
Out of stock

12

BOX ASSY,SPEEDO This part replaces 54600-18402.

54600-18403

1
Out of stock

13

DISK, FRONT BRAKE

59211-44000

1
Out of stock

14

BOLT

09100-08140

6

$2.41

In stock

15

WASHER

09169-08016

3
Out of stock

16

TIRE, FRONT | 3.00S18

55100-44030

1
Out of stock

18

PROTECTOR | 22x18

55261-18030

1
Out of stock

19

RIM, FRONT | 1.60Ax18

55311-18420

1
Out of stock

20

1

$64.11

In stock

21

BALANCER WHEEL (15G) | 2)20G This part replaces 55411-11000.

55411-26G00

1
Out of stock

22

BALANCER WHEEL (30G) | 2)30G This part replaces 55412-11000.

55413-41F00

1
Out of stock
