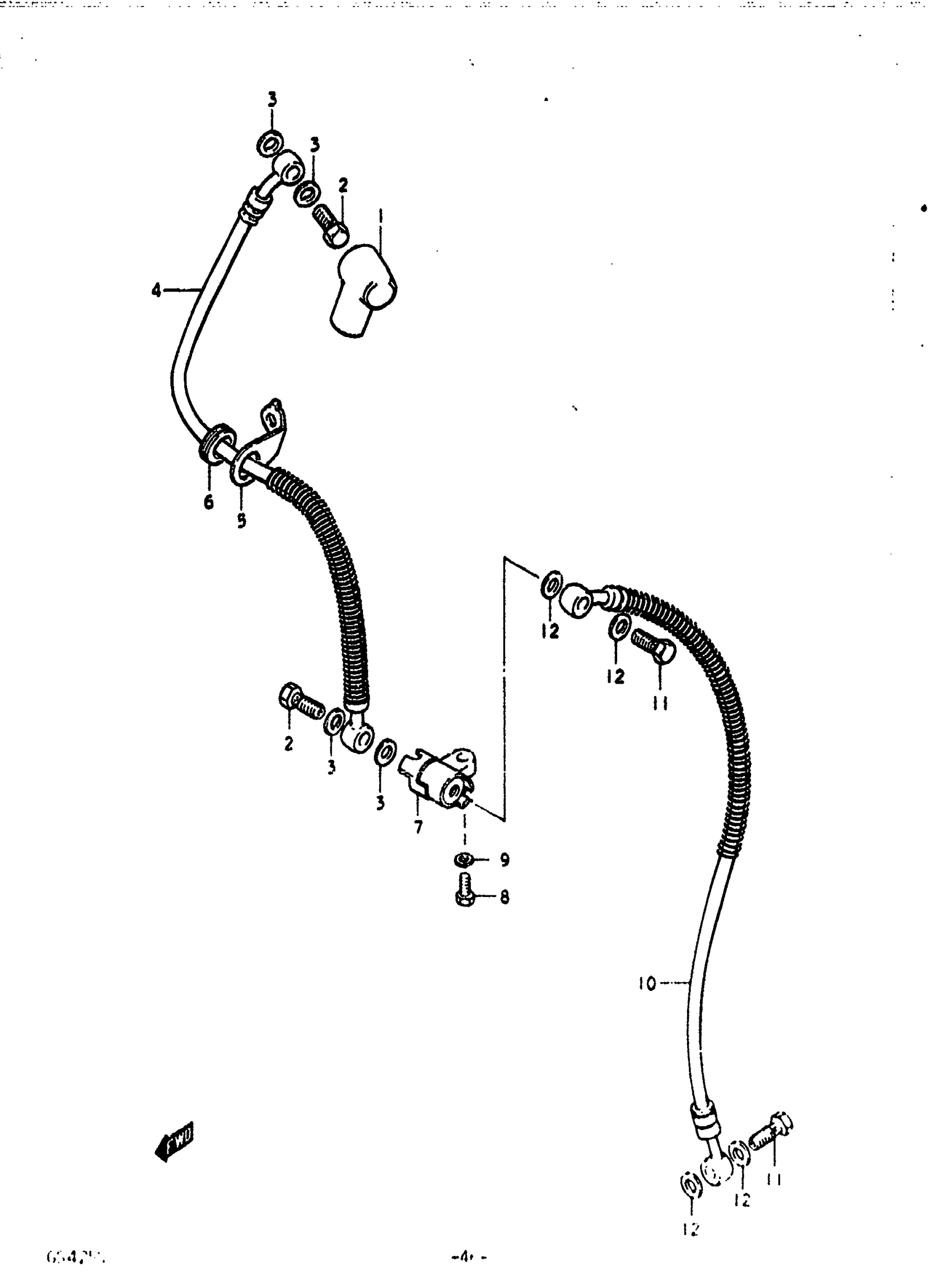

Find the part on the Brake Hose diagram for your 1979 Suzuki GS425E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Suzuki GS425E Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOOT, MASTER CYLINDER | N,EN This part replaces 59711-18400.

59711-49001

1
Out of stock

2

UNION | N,EN This part replaces 09360-10003.

09360-10017

2
Out of stock

3

WASHER (10X15X1.5) | N,EN This part replaces 09161-10005.

09161-10009

4
Out of stock

4

HOSE, BRAKE NO.1 | N,EN This part replaces 59480-44000.

59480-37013

1
Out of stock

5

GUIDE, HOSE | N,EN

59243-18401

1
Out of stock

6

GROMMET | N,EN This part replaces 09308-14007.

09308-14009

1
Out of stock

7

JOINT, BRAKE HOSE | N,EN This part replaces 59491-45000.

59491-45001

1
Out of stock

8

BOLT | N,EN This part replaces 01107-06208.

01500-06207

1
Out of stock

10

HOSE, BRAKE NO. 2 | N,EN This part replaces 59240-44000.

59240-44001

1
Out of stock

11

UNION | N,EN This part replaces 09360-10003.

09360-10017

2
Out of stock

12

WASHER (10X15X1.5) | N,EN This part replaces 09161-10005.

09161-10009

4
Out of stock
