1978 Suzuki GS400X Rear HUB Diagram

← All diagrams

Find the part on the Rear HUB diagram for your 1978 Suzuki GS400X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

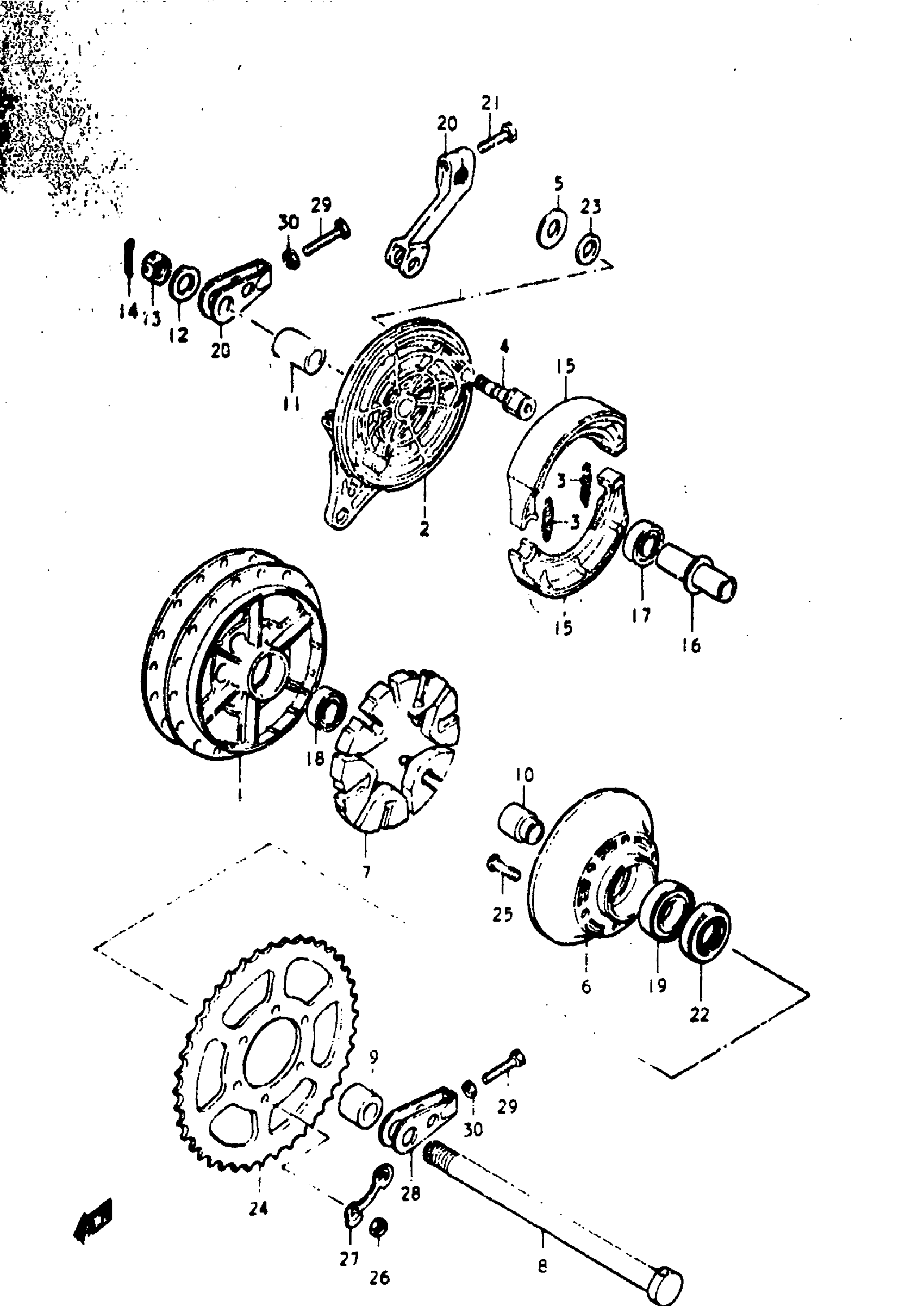

1978 Suzuki GS400X Rear HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL | C,XC

64110-11001

1
Out of stock

2

PANEL | C,XC

64210-11002

1
Out of stock

3

SPRING | C,XC

55420-30000

2
Out of stock

4

CAM, BRAKE | C,XC This part replaces 54440-33001.

54440-33002

1
Out of stock

5

WASHER | C,XC; 15x24x1.6 This part replaces 09160-15001.

09160-15048

1
Out of stock

6

DRUM, SPROCKET MOUNTING | C,XC

64611-33000

1
Out of stock

7

SHOCK ABSURBER, REAR DRUM | C,XC This part replaces 64651-11001.

64651-11002

6
Out of stock

8

AXLE,REAR | C,XC This part replaces 64711-33000.

64711-3300V

1
Out of stock

9

SPACER, RH | C,XC; 17.5x28x44.8

09180-17043

1
Out of stock

10

SPACER,RR HUB B | C,XC This part replaces 64733-33000.

64733-3300V

1
Out of stock

11

SPACER, LH | C,XC; 17x30.5x22.3

09180-17042

1
Out of stock

12

WASHER | C,XC This part replaces 08322-11168.

08322-01167

1
Out of stock

13

NUT | C,XC

09141-16001

1
Out of stock

14

PIN, COTTER | C,XC This part replaces 04111-40408.

04111-4040A

1
Out of stock

15

SHOE SET,BRAKE( | C,XC This part replaces 64410-11002.

64400-11870

2
Out of stock

16

SPACER, BEARING | C,XC

64730-11000

1
Out of stock

17

BEARING, LH | C,XC This part replaces 08143-63030.

08143-63037

1
Out of stock

18

BEARING, FRONT HUB RH | C,XC This part replaces 08143-62030.

08143-62037

1
Out of stock

19

BEARING, LH | C,XC This part replaces 08113-62050.

09262-25003

1
Out of stock

20

LEVER, BRAKE CAM | C,XC This part replaces 64451-44000.

64451-44001

1
Out of stock

21

BOLT | C,XC This part replaces 01107-06258.

01500-06257

1
Out of stock

22

SEAL,OIL(30.5X5 | C,XC This part replaces 09283-30001.

09285-30003

1
Out of stock

23

O RING (ID:14.8,D:2.40) | C,XC This part replaces 09280-15001.

09280-15003

1
Out of stock

24

SPROCKET REAR | C,XC; NT:45

64511-44000

1
Out of stock

25

BOLT | C,XC This part replaces 09119-10002.

09105-10001

6
Out of stock

26

NUT | C,XC This part replaces 08310-12108.

08310-00107

6
Out of stock

27

LOCK WASHER | C,XC

09169-10006

3
Out of stock

28

ADJUSTER, CHAIN | C,XC This part replaces 61410-44000.

61410-44200

2
Out of stock

29

BOLT (8X50) | C,XC This part replaces 09104-08006.

09104-08034

2
Out of stock

30

2

$1.93

In stock
