1978 Suzuki GS400X Calipers Diagram

← All diagrams

Find the part on the Calipers diagram for your 1978 Suzuki GS400X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

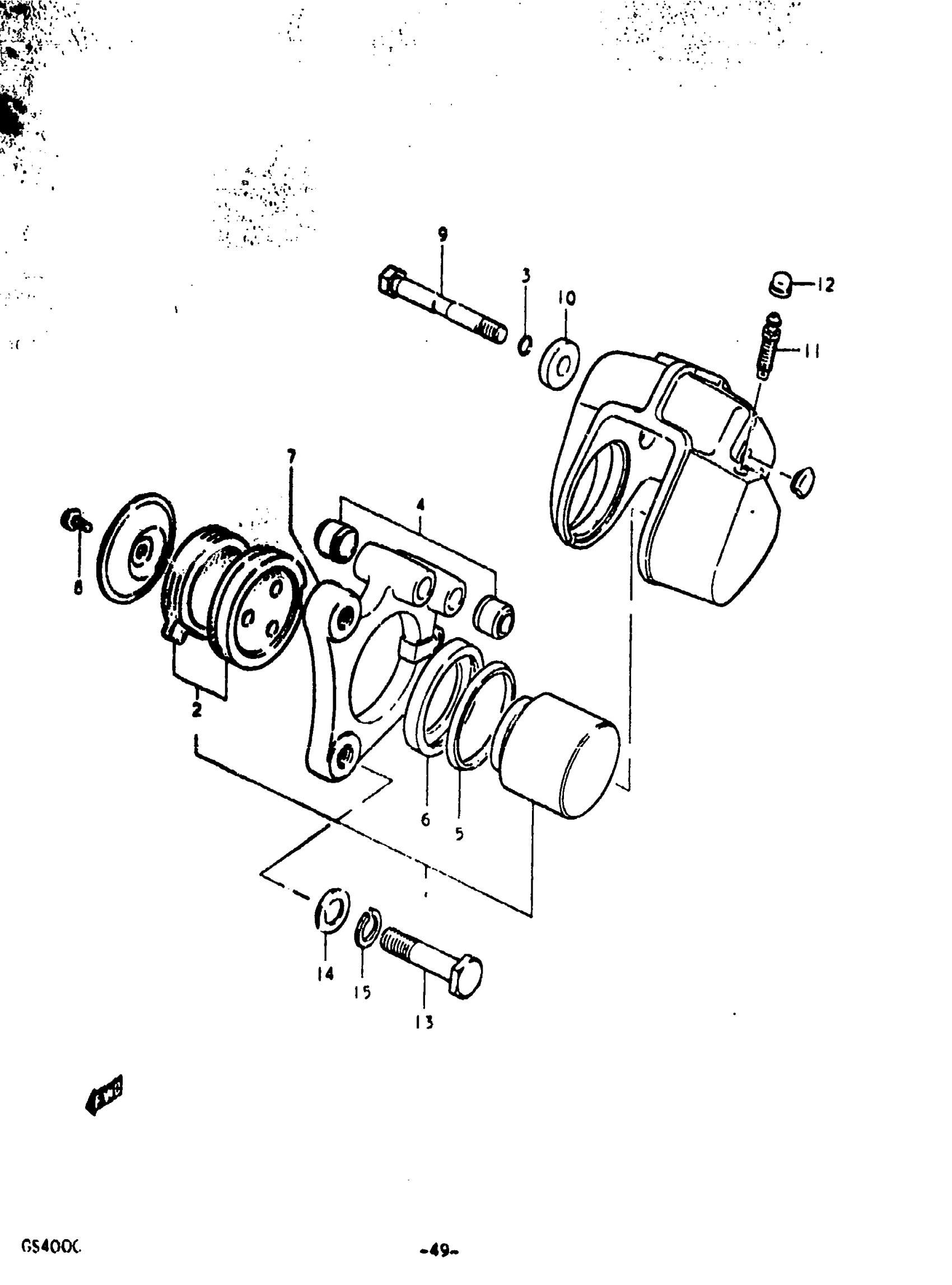

1978 Suzuki GS400X Calipers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

CARIPERS ASSY | Includes Item(s) 1 - 12 This part replaces 59300-45001.

59300-45002

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 59100-45830.

59100-45833

1
Out of stock

2

PAD SET This part replaces 59100-45820.

59302-45830

1
Out of stock

3

O RING

59111-45001

2
Out of stock

4

DUST COVER, AXLE

59312-45000

4
Out of stock

5

PISTON SEAL This part replaces 55136-66310.

69107-38B00

1
Out of stock

6

BOOT, PISTON

59308-45000

1
Out of stock

7

HOLDER, CARLPERS

59350-45001

1
Out of stock

8

SCREW This part replaces 02112-06128.

02112-06127

1
Out of stock

9

AXLE, CARLPERS

59305-45001

2
Out of stock

10

WASHER, AXLE

59371-45000

2
Out of stock

11

BREATHER

59121-18410

1
Out of stock

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

1
Out of stock

13

BOLT (10X38) This part replaces 09104-10007.

09104-10029

2
Out of stock

14

WASHER This part replaces 08322-21108.

08322-01107

2
Out of stock

15

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock
