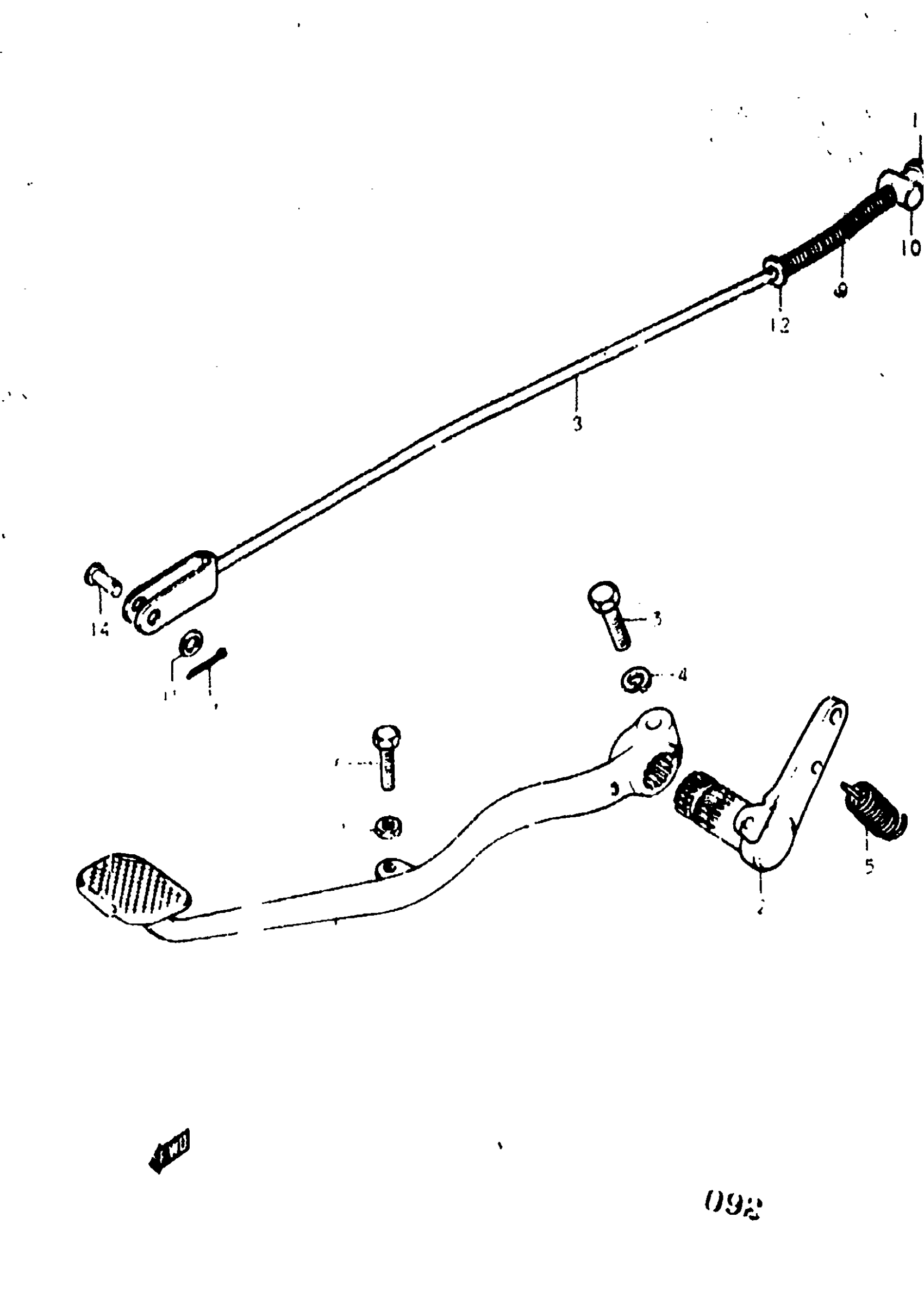

Suzuki GS400X (1977) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE | B,XB

43110-44000

Unavailable

2

ARM, BRAKE PEDAL ROD | B,XB

43120-44000

Unavailable

3

BOLT | B,XB This part replaces 01122-08258.

01500-08257

$2.53

4

.LOCK WASHER | B,XB This part replaces 08321-21088.

08321-01087

$1.83

5

SPRING | B,XB

09443-14013

$2.80

6

BOLT | B,XB

09100-06009

$1.79

7

.NUT | B,XB This part replaces 08311-11068.

08310-00067

$1.83

8

ROD ASSY, REAR BRAKE | B,XB; Includes Item(s) 9 - 15

43300-44000

Unavailable

9

SPRING | B,XB

09440-09004

$2.06

10

.PIN (13X18) | B,XB This part replaces 09209-13003.

09209-13018

$3.13

11

.NUT | B,XB This part replaces 09150-06001.

09150-06010

$2.80

12

WASHER | B,XB This part replaces 08322-21068.

08322-01067

$1.86

13

COTTER PIN | B,XB This part replaces 04111-20208.

04111-2020A

$1.22

14

PIN | B,XB

09200-06013

$2.05

15

WASHER | B,XB This part replaces 08322-21068.

08322-01067

$1.86
