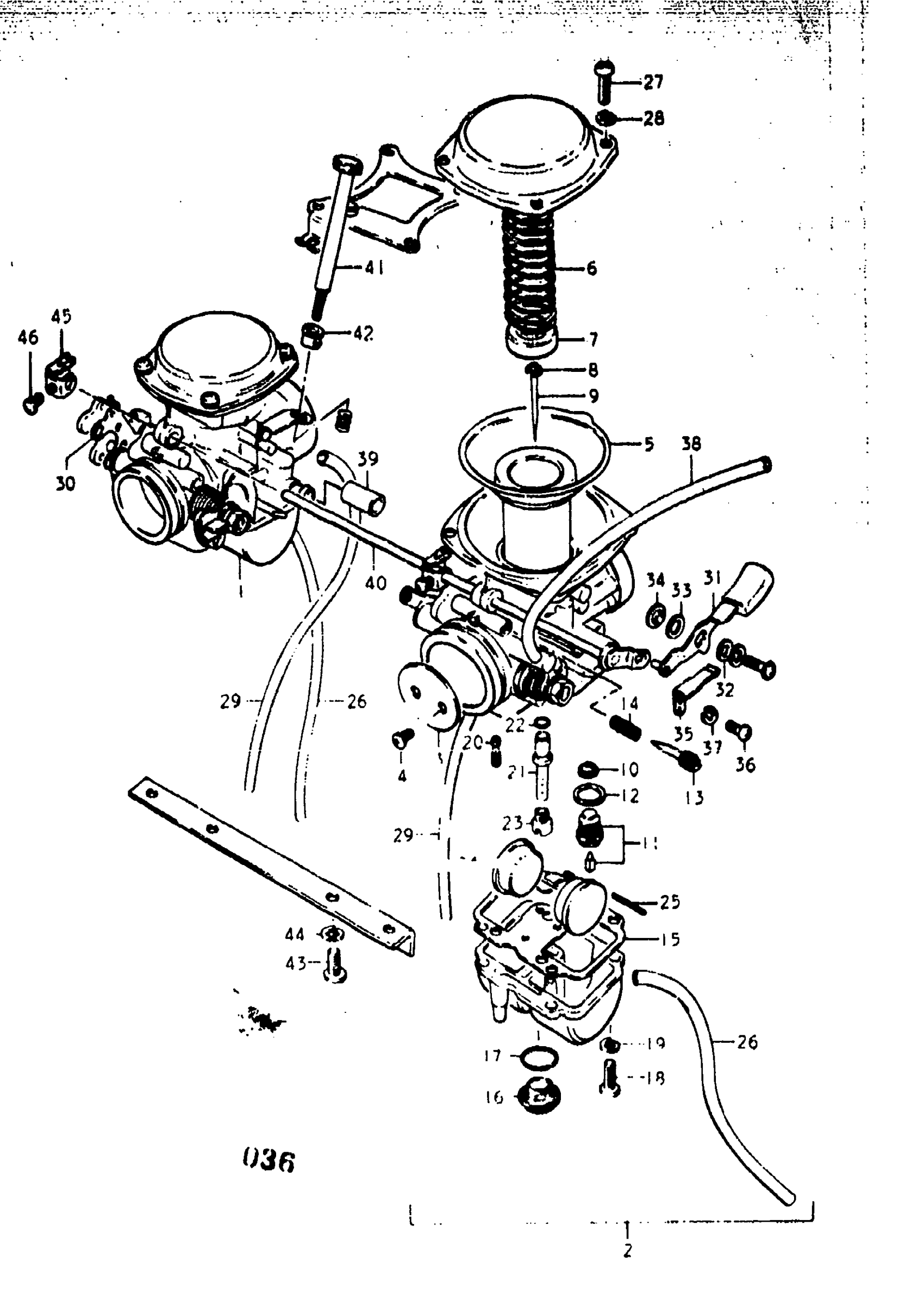

Find the part on the Carburetor diagram for your 1977 Suzuki GS400X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GS400X Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

NO DESCRIPTION AVAILABLE | B,XB; Includes Item(s) 1 - 46 This part replaces 13200-44010.

13200-44012

1
Out of stock

1

NO DESCRIPTION AVAILABLE | B,XB This part replaces 13201-44010.

13201-44012

1
Out of stock

2

NO DESCRIPTION AVAILABLE | B,XB This part replaces 13202-44010.

13202-44012

1
Out of stock

3

VALVE, THROTTLE | B,XB; #135

13551-44010

2
Out of stock

4

SCREW | B,XB This part replaces 02121-03088.

02122-0308A

4
Out of stock

5

DIAPHRAGM | B,XB This part replaces 13500-44010.

13500-44110

2
Out of stock

6

SPRING | B,XB

13503-44010

2
Out of stock

7

PLATE | B,XB

13398-31210

2
Out of stock

8

E RING | B,XB This part replaces 13394-44010.

13394-31210

2
Out of stock

9

NEEDLE, JET | B,XB; 4F23-3

13383-44010

2
Out of stock

10

2

$10.26

In stock

11

VALVE, NEEDLE | B,XB

13370-44010

2
Out of stock

12

GASKET | B,XB

13392-16600

2
Out of stock

13

SCREW, PILOT AIR | B,XB

13269-44010

2
Out of stock

14

SPRING | B,XB

13268-01010

2
Out of stock

15

GASKET,FLOAT CA | B,XB This part replaces 13251-31210.

13251-31211

2
Out of stock

16

PLUG, DRAIN | B,XB

13247-32210

2
Out of stock

17

O RING | B,XB This part replaces 13246-44010.

13249-41310

2
Out of stock

18

8

$1.33

In stock

19

LOCK WASHER | B,XB This part replaces 08321-21048.

08321-0104A

8
Out of stock

20

JET, PILOT | B,XB; #22.5

09492-22004

2
Out of stock

21

JET, NEEDLE | B,XB; Y-0

09494-00181

2
Out of stock

22

O RING, NOZZLE | B,XB This part replaces 13295-31210.

09280-03003

2
Out of stock

23

JET, MAIN | B,XB; #112.5

09491-22011

2
Out of stock

24

FLOAT | B,XB

13252-31210

2
Out of stock

25

.PIN, FLOAT | B,XB

13254-01010

2

$4.80

In stock

26

HOSE (3.5X6.5X6OO) | B,XB This part replaces 13683-44020.

13683-45070

2
Out of stock

27

SCREW | B,XB This part replaces 02112-05168.

02112-05167

8
Out of stock

28

LOCK WASHER | B,XB This part replaces 08321-21058.

08321-0105A

8
Out of stock

29

HOSE(4.5X8.5X60 | B,XB This part replaces 13683-44010.

09355-45001-600

2
Out of stock

30

GASKET | B,XB

13436-44010

2
Out of stock

31

LEVER, STARTER | B,XB; LH CARBURETOR This part replaces 13413-44010.

13413-44020

1
Out of stock

32

WASHER | B,XB; LH CARBURETOR

13615-31630

1
Out of stock

33

WASHER | B,XB; LH CARBURETOR

13615-44010

1
Out of stock

34

RING | B,XB; LH CARBURETOR

13432-31210

1
Out of stock

35

PLATE, SPRING | B,XB; LH CARBURETOR

13426-44010

1
Out of stock

38

HOSE(4.5X8.5X60 | B,XB; LH CARBURETOR This part replaces 13683-31610.

09355-45001-600

1
Out of stock

39

HOSE | B,XB This part replaces 13683-31600.

13683-10201

1
Out of stock

40

SHAFT, STARTER | B,XB

13410-44010

1
Out of stock

41

ADJUSTER, THROTTLE | B,XB

13267-44010

1
Out of stock

42

BUSHING | B,XB

13276-31210

1
Out of stock

43

SCREW | B,XB This part replaces 02112-06128.

02112-06127

4
Out of stock

44

4

$2.28

In stock

45

LEVER | B,XB

13422-44010

2
Out of stock

46

SCREW | B,XB

13605-31210

2
Out of stock
