1977 Yamaha GS340A Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1977 Yamaha GS340A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

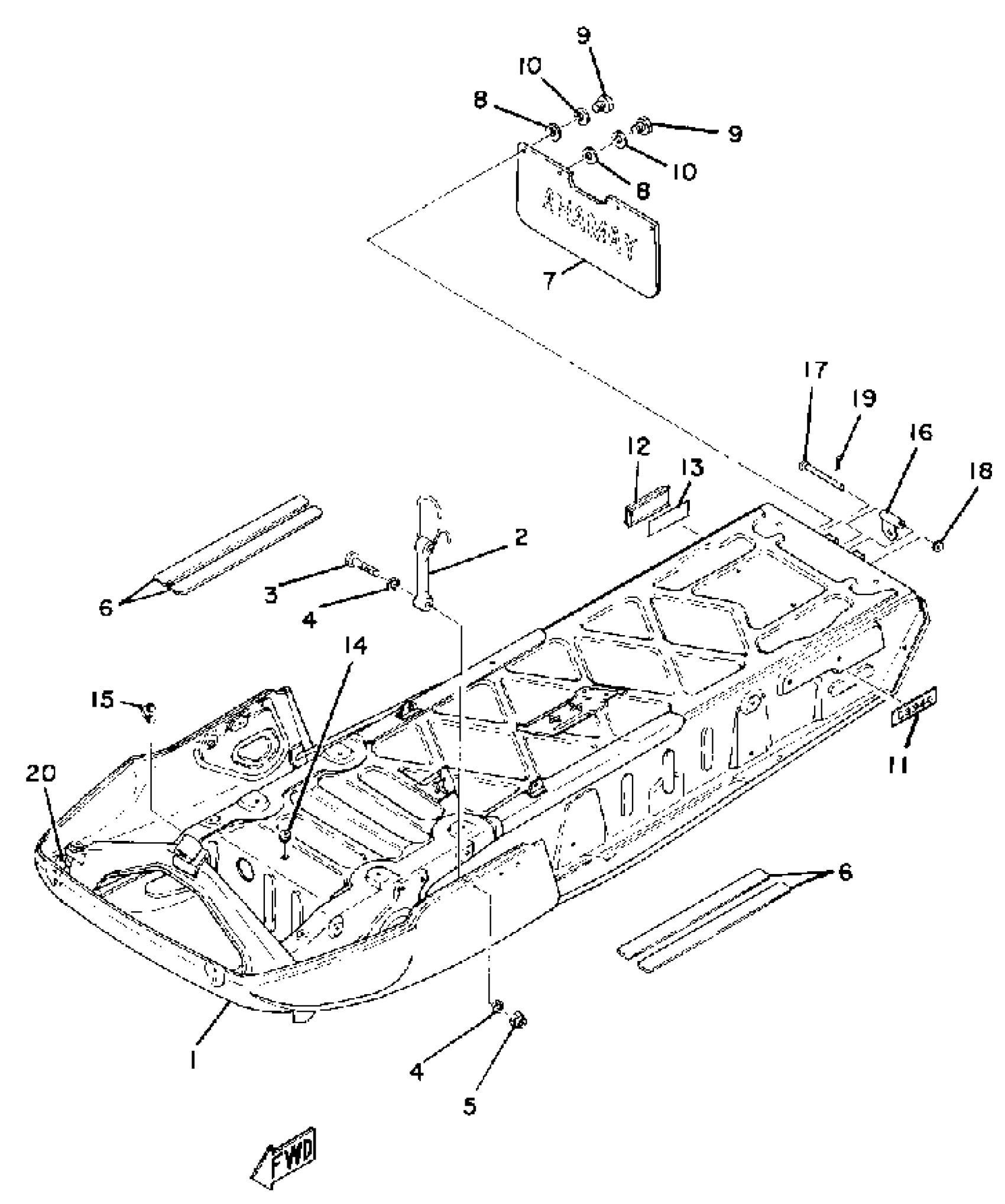

1977 Yamaha GS340A Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(8E3-21910-00-00)

1
Out of stock

2

LATCH ASSEMBLY

856-77170-00-00

1
Out of stock

3

SCREW, BIND(J39)

98980-06030-00

1

$5.62

In stock

4

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

5

NUT, NYLON

95707-06300-00

1

$3.20

In stock

6

COVER, FOOTREST

878-27423-00-00

1
Out of stock

7

FLAP

865-77595-00-00

1
Out of stock

8

WASHER, PLATE (J10)

90201-06697-00

1

$6.17

In stock

9

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

EMBLEM 4

(8E3-77354-00-00)

1
Out of stock

12

REAR REFLECTOR ASSY

81G-85130-00-00

—

$33.55

In stock

13

TAPE, REFLECTOR

878-85133-00-00

1
Out of stock

14

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

15

BAND

(841-82591-00-00)

1
Out of stock

16

BRACKET, HITCH 1

802-77591-00-00

1
Out of stock

17

PIN, CLEVIS

(91701-08102-00)

1
Out of stock

18

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

19

PIN, COTTER

91490-25020-00

—

$2.94

In stock

20

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock
