1976 Yamaha GS340 Track - Suspension Diagram

← All diagrams

Find the part on the Track - Suspension diagram for your 1976 Yamaha GS340, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

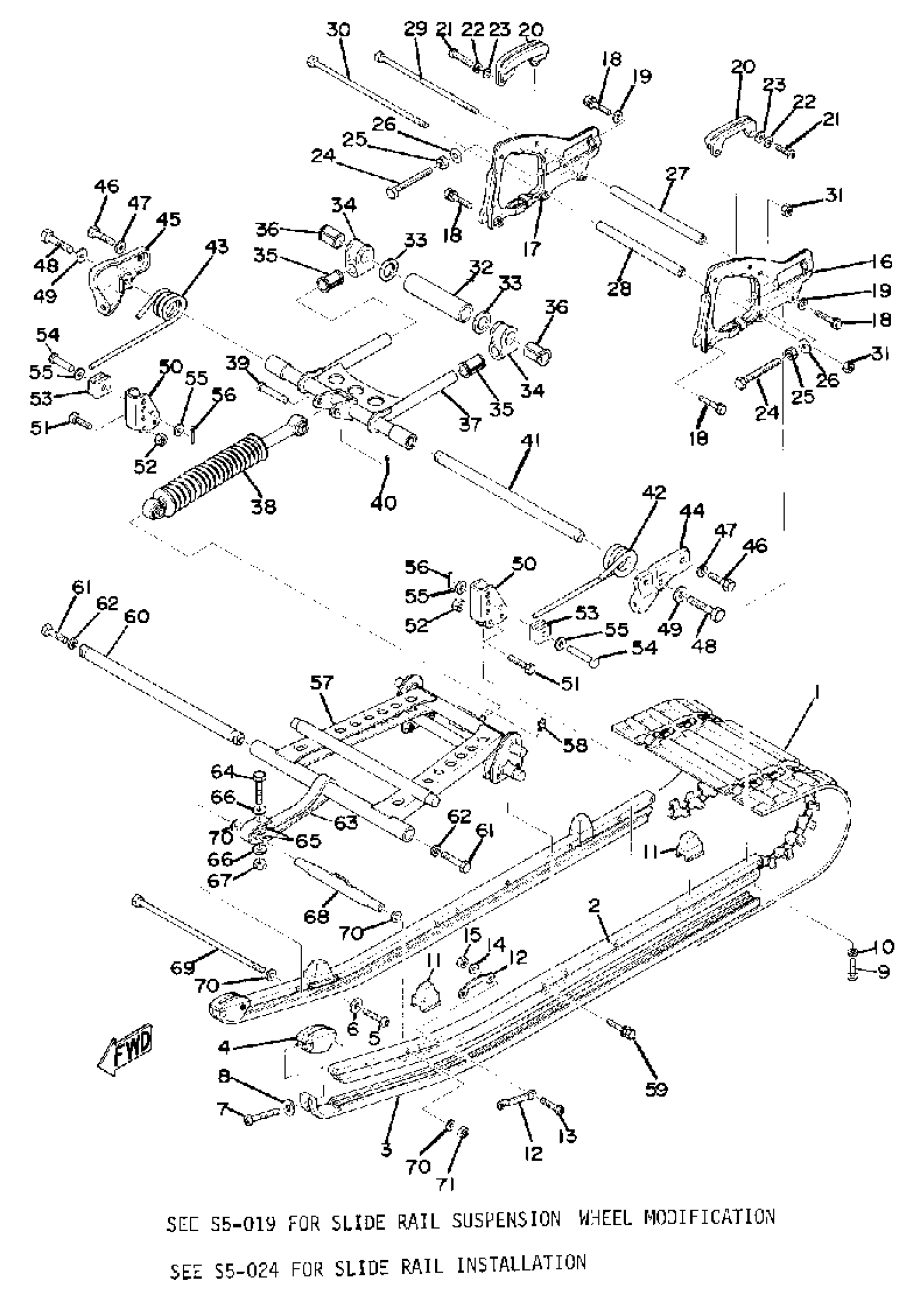

1976 Yamaha GS340 Track - Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSEMBLY

(890-47110-00-00)

1
Out of stock

2

FRAME, SLIDING 1

890-47411-00-00

1
Out of stock

3

RUNNER, SLIDING 1 (890-47421-00)

890-47421-90-XX

1
Out of stock

4

RUNNER, SLIDING 3

885-47423-00-00

1
Out of stock

5

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

6

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

7

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

8

WASHER, PLATE

90201-06M02-00

1

$2.23

In stock

9

BOLT,SOCKET

91317-06010-00

1

$6.91

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

DAMPER 2

885-47457-00-00

1
Out of stock

12

PLATE, DAMPER

885-47458-01-00

1
Out of stock

13

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

16

FRAME, SLIDING 2

(885-47412-00-00)

1
Out of stock

17

FRAME, SLIDING 3

(885-47413-00-00)

1
Out of stock

18

BOLT, WITH WASHER

90119-08008-00

1
Out of stock

19

WASHER, PLATE

90201-08020-00

—

$4.67

In stock

20

RUNNER, SLIDING 2

888-47422-00-00

1
Out of stock

21

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

24

BOLT, HEXAGON (899 TRACK)

90101-10293-00

—
Out of stock

25

NUT (682)

95380-10700-00

1

$5.78

In stock

26

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

27

COLLAR (899 SUSPENSION)

90387-08497-00

—

$12.38

In stock

28

COLLAR (899 SUSPENSION)

90387-08496-00

—

$9.91

In stock

29

BOLT, HEXAGON (97101-08245)

97321-08245-00

1
Out of stock

30

BOLT (8M8)

90101-08374-00

—
Out of stock

31

NUT, U

95617-08100-00

—

$6.78

In stock

32

COLLAR

(90387-25471-00)

1
Out of stock

33

WASHER, PLATE

90201-25499-00

1
Out of stock

34

SLIDER 1

885-47441-00-00

1
Out of stock

35

BUSH, SPEC''L NYLON

90386-19081-00

1
Out of stock

36

BUSH, SPEC''L NYLON

(90386-25082-00)

1
Out of stock

37

ARM, PIVOT 2

(890-47332-00-00)

1
Out of stock

38

SHOCK ABSORBER

(8A0-47480-00-00)

1
Out of stock

39

PIN, CLEVIS(8N0)

90240-12115-00

—

$16.35

In stock

40

PIN, COTTER

91490-30030-00

—

$7.15

In stock

41

SHAFT 2

(899-47475-00-00)

1
Out of stock

42

SPRING, TORSION

90508-95256-00

1
Out of stock

43

SPRING, TORSION

90508-95257-00

1
Out of stock

44

BRACKET, REAR 1

(890-47426-00-00)

1
Out of stock

45

BRACKET, REAR 2

(890-47425-00-00)

1
Out of stock

46

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

47

WASHER, CONICAL SPRING

90208-08011-00

1
Out of stock

48

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

49

WASHER 823214910000

90208-10012-00

—

$13.20

In stock

50

BRACKET 5

890-47463-00-00

1
Out of stock

51

BOLT

97013-08035-00

—

$4.80

In stock

52

NUT, U

95617-08100-00

—

$6.78

In stock

53

HOOK 2

890-47447-00-00

—

$4.35

In stock

54

PIN WITH HOLE (890)

90249-12113-00

—

$8.37

In stock

55

WASHER, PLATE

90201-12047-00

—

$7.54

In stock

56

PIN, COTTER

91490-30030-00

—

$7.15

In stock

57

ARM, PIVOT 1

(890-47331-10-00)

1
Out of stock

58

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

59

BOLT, WITH WASHER

90119-08008-00

1
Out of stock

60

SHAFT 1

899-47465-00-00

1
Out of stock

61

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

62

WASHER 823214910000

90208-10012-00

—

$13.20

In stock

63

STOPPER 1

890-47495-01-00

1
Out of stock

64

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

65

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

66

WASHER PLATE 137241870000

90201-06072-00

—
Out of stock

67

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

68

BRACKET 1

899-47415-00-00

1
Out of stock

69

BOLT (8M8)

90101-08374-00

—
Out of stock

70

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

71

NUT, U

95617-08100-00

—

$6.78

In stock
