1976 Yamaha GS340 Grip - Wiring Diagram

← All diagrams

Find the part on the Grip - Wiring diagram for your 1976 Yamaha GS340, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

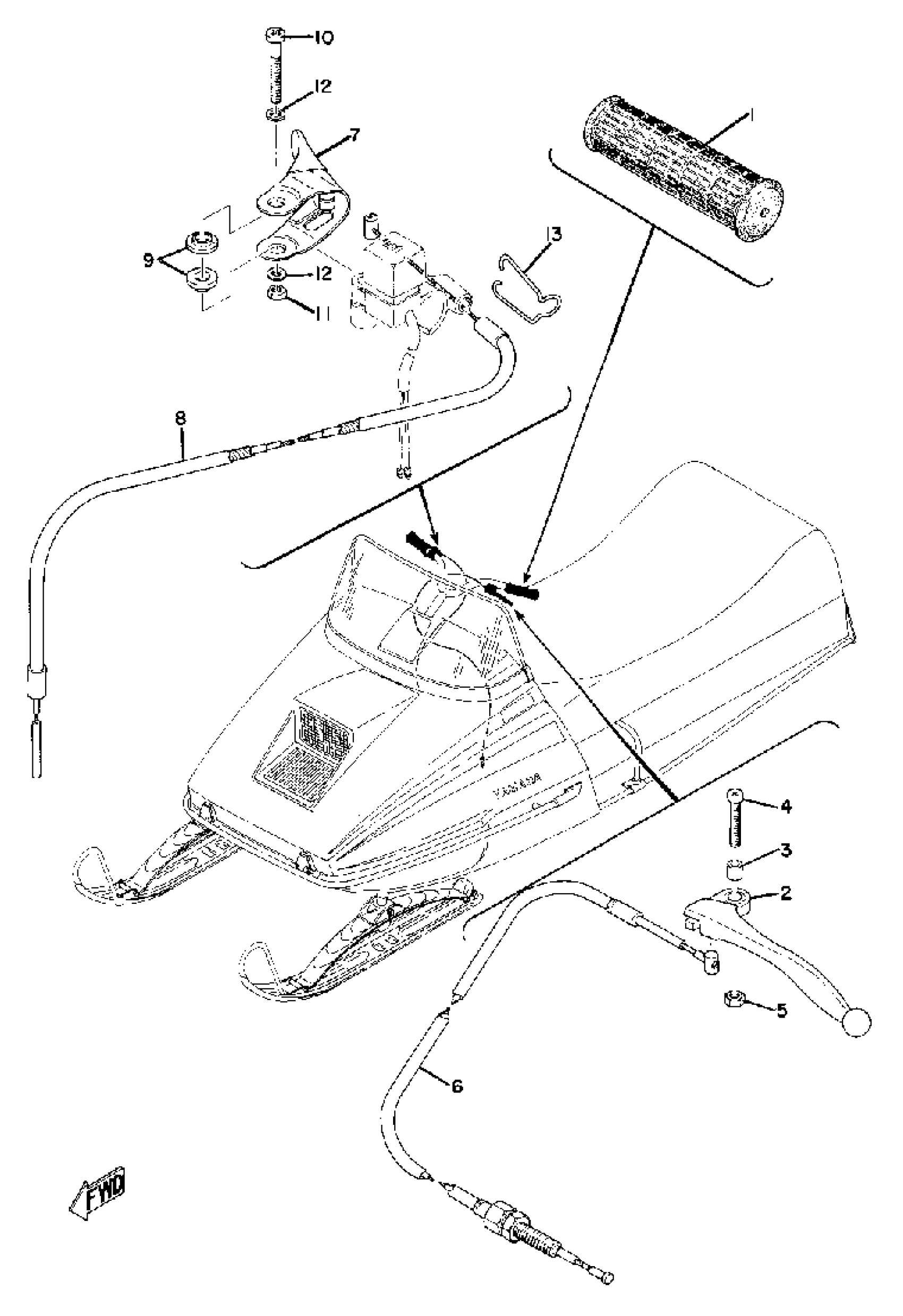

1976 Yamaha GS340 Grip - Wiring Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP

801-26241-02-00

1
Out of stock

2

LEVER L

803-83912-00-38

1
Out of stock

3

COLLAR, LEVER

802-83913-00-00

—

$6.35

In stock

4

SCREW, LVR FITTING

(849-83915-00-00)

1
Out of stock

5

NUT, U

95617-05100-00

1

$6.68

In stock

6

CABLE, BRAKE

861-26340-02-00

1
Out of stock

7

THROTTLE LEVER

99999-01028-00

1
Out of stock

8

CABLE THROTTLE 1

863-26311-03-00

1
Out of stock

9

C0LLAR

90387-062M9-00

1
Out of stock

10

SCREW, PAN HEAD (810-83925-00)

90157-06004-00

1
Out of stock

11

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

12

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

13

CLIP (821-26391-00)

90468-10017-00

1
Out of stock
