1985 Suzuki GS300L Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1985 Suzuki GS300L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

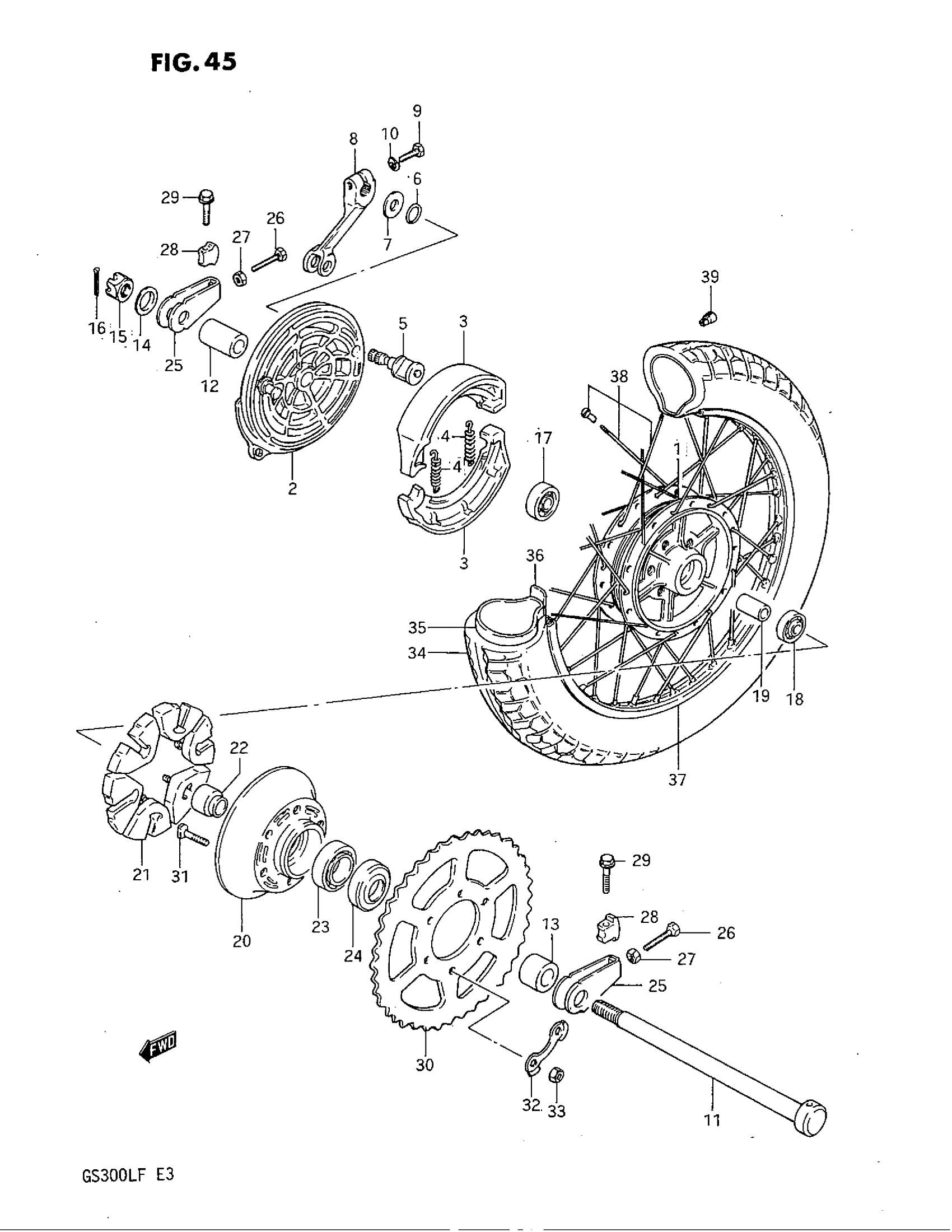

1985 Suzuki GS300L Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

64110-37301

1
Out of stock

2

PANEL, REAR HUB

64210-44060

1
Out of stock

3

SHOE SET, BRAKE This part replaces 64410-11301.

64400-11860

2
Out of stock

4

SPRING

55420-30000

2
Out of stock

5

CAM, REAR BRAKE This part replaces 54440-08003.

54440-08004

1
Out of stock

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

1
Out of stock

7

WASHER This part replaces 09160-15001.

09160-15048

1
Out of stock

8

LEVER, BRAKE CAM

64451-44400

1
Out of stock

9

BOLT This part replaces 01107-06258.

01500-06257

1
Out of stock

10

1

$2.28

In stock

11

AXLE, REAR

64711-44400

1
Out of stock

12

SPACER, RH (15X26X36.8)

09180-17043

1
Out of stock

13

SPACER, LH

09180-17042

1
Out of stock

14

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

1
Out of stock

15

NUT

09141-16001

1
Out of stock

16

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

17

BEARING, RH

08143-63037

1
Out of stock

18

BEARING, LH

08143-62037

1
Out of stock

19

SPACER,17.6X24X This part replaces 09180-17056.

09180-17056-XC0

1
Out of stock

20

DRUM, SPROCKET MOUNTIN

64611-44001

1
Out of stock

21

SHOCK ABSORBER, REAR HUB

64651-11300

6
Out of stock

22

SPACER,RR HUB B This part replaces 64733-33000.

64733-3300V

1
Out of stock

23

BEARING

08113-62057

1
Out of stock

24

SEAL,OIL(30.5X5 This part replaces 09285-30001.

09285-30003

1
Out of stock

25

ADJUSTER, CHAIN

61410-47200

2
Out of stock

26

BOLT (8X50) This part replaces 09104-08018.

09104-08034

2
Out of stock

27

2

$1.93

In stock

28

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

2
Out of stock

29

BOLT This part replaces 01517-08504.

01550-0850B

2
Out of stock

30

SPROCKET, REAR (NT:42)

64511-11530

1
Out of stock

31

BOLT

09105-10003

6
Out of stock

32

LOCK WASHER

09169-10006

3
Out of stock

33

NUT This part replaces 09140-10026.

09140-10026-XC0

6
Out of stock

34

TIRE, REAR (4,60S16) BS | IRC This part replaces 65100-44510.

65100-38330

1
Out of stock

34

TIRE, REAR (4,60S16) BS | BS This part replaces 65100-44530.

65100-38330

1
Out of stock

35

TUBE, INNER REAR This part replaces 65200-37320.

65200-37300

1
Out of stock

36

PROTECTOR

65261-33030

1
Out of stock

37

RIM, WHEEL (2.15X16)

65311-44900

1
Out of stock

38

SPOKE SET

65320-44900

1
Out of stock

39

BALANCER WHEEL (15G) This part replaces 55411-11000.

55411-26G00

1
Out of stock

39

BALANCER WHEEL (30G) This part replaces 55412-11000.

55413-41F00

1
Out of stock
