1985 Suzuki GS300L Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1985 Suzuki GS300L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

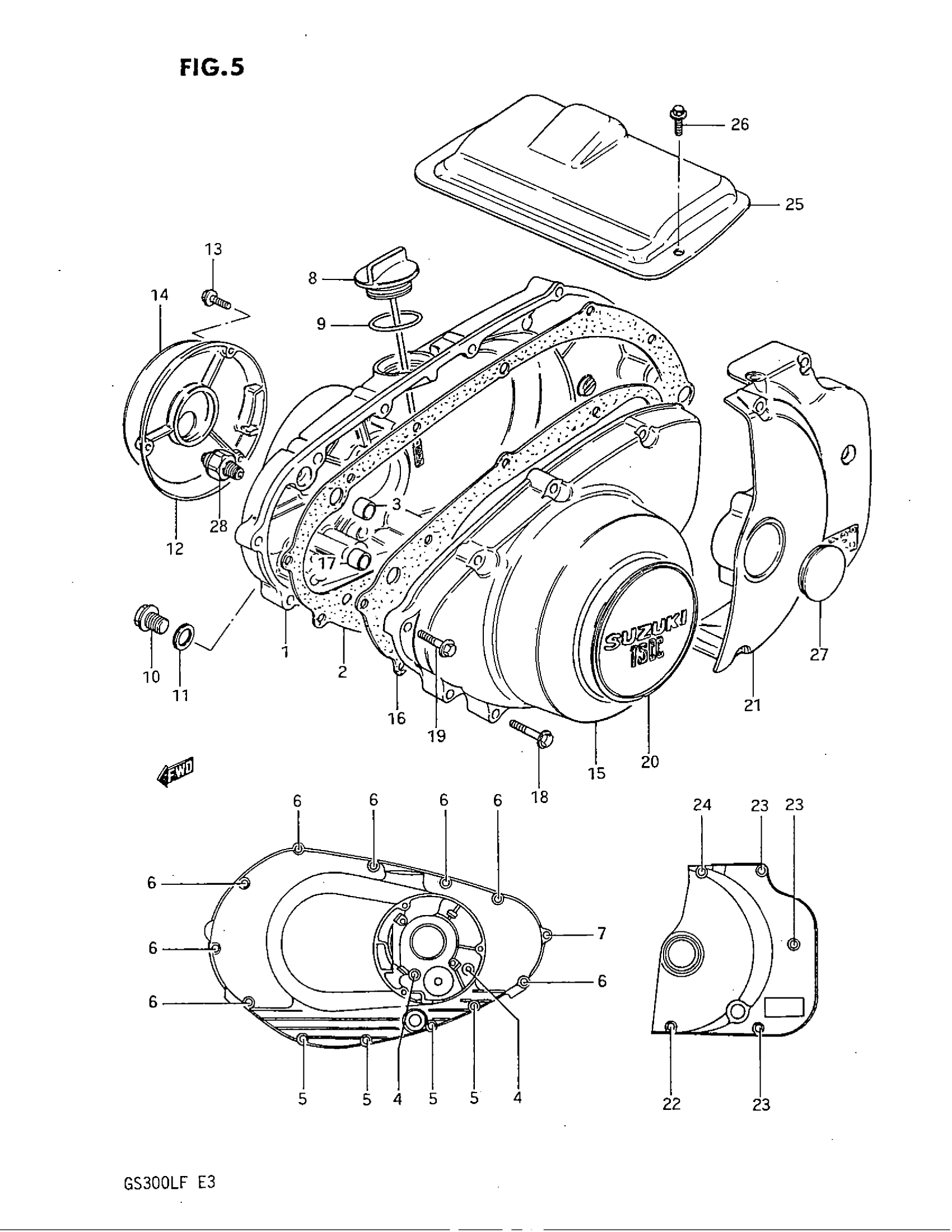

1985 Suzuki GS300L Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-11401

1
Out of stock

2

GASKET,CLUTCH C This part replaces 11482-11400.

11482-11400-H17

1
Out of stock

3

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

4

BOLT This part replaces 01547-06508.

01547-06507

2
Out of stock

5

BOLT This part replaces 01547-06458.

01547-06457

4
Out of stock

6

BOLT This part replaces 01547-06358.

01547-06357

8
Out of stock

7

BOLT This part replaces 01547-06258.

01547-06257

1
Out of stock

8

GAUGE, OIL LEVEL

11970-11400

1
Out of stock

9

O RING (D:3.1,ID:26.4) This part replaces 09280-27002.

09280-26006

1
Out of stock

10

1

$3.63

In stock

11

GASKET

09168-14004

1
Out of stock

12

COVER, CONTACT BREAKER

11381-44003

1
Out of stock

13

BOLT This part replaces 01547-05208.

01547-05207

3
Out of stock

14

EMBLEM

68235-49500

1
Out of stock

15

COVER, GENERATOR

11351-11402

1
Out of stock

16

GASKET,MAG COVE This part replaces 11483-11400.

11483-11400-H17

1
Out of stock

17

PIN This part replaces 09206-13001.

04211-13189

1
Out of stock

18

BOLT This part replaces 01547-06308.

01547-06307

9
Out of stock

19

BOLT This part replaces 01547-06258.

01547-06257

1
Out of stock

20

EMBLEM

68235-49500

1
Out of stock

21

COVER, ENGINE SPROCKET

11361-11402

1
Out of stock

22

BOLT This part replaces 01547-06608.

01547-06607

1
Out of stock

23

BOLT This part replaces 01547-06408.

01547-06407

3
Out of stock

24

BOLT This part replaces 01547-06308.

01547-06307

1
Out of stock

25

COVER, STARTER MOTOR

11382-11910

1
Out of stock

26

BOLT, COVER This part replaces 01547-05084.

01547-0508B

2
Out of stock

27

CAP, CLUTCH RELEASE

09250-30003

1
Out of stock

28

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33200.

37820-33D11

1
Out of stock
